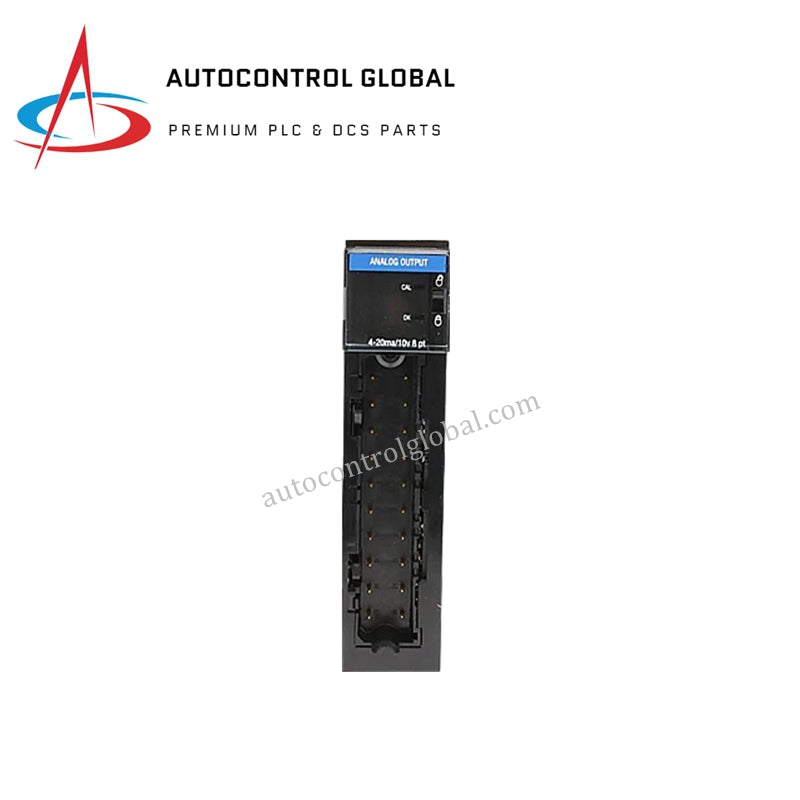

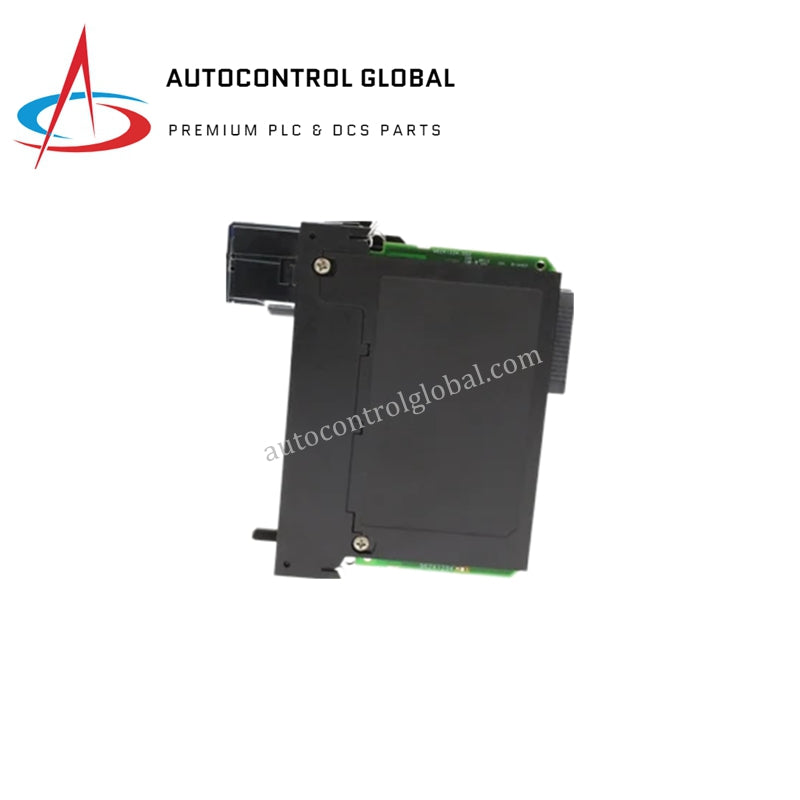

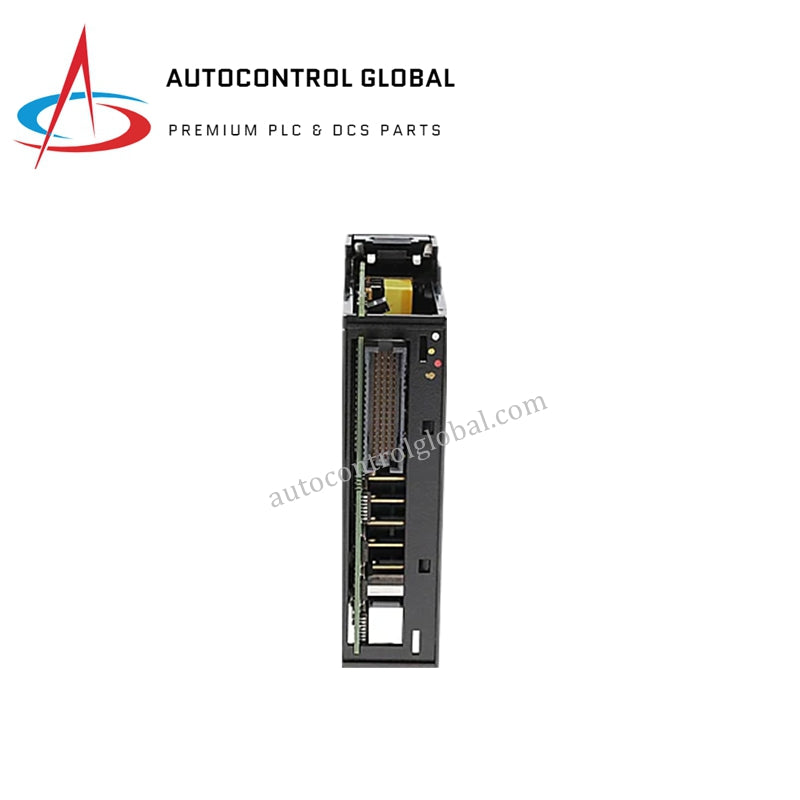

HoneyWell TC-OAV081 Analog Output Module In Stock

Product Overview

The Honeywell TC-OAV081 Analog Output Module is designed for industrial process control applications that require accurate and reliable analog signals. This module provides eight channels of isolated analog output, making it suitable for environments where precision and reliability are critical. The TC-OAV081 supports both voltage and current outputs, ensuring flexibility in signal transmission and compatibility with a wide range of devices.

Technical Specifications

• Number of Channels: 8
• Output Type:
  • Voltage: ±10.4 V
  • Current: 0 to 21 mA
• Resolution:
  • Voltage: 320 µV per count
  • Current: 650 nA per count
• Protection:
  • Output Overvoltage: 24 VAC/VDC continuous at room temperature
  • Open/Short Circuit: Electronically current limited to 21 mA or less
• Power Dissipation: 6.9 W max
• Connection: TC-TBNH, 20-position terminal block
• Dimensions:
  • Width: 0.0" (0.0 cm)
  • Height: 5.8" (14.6 cm)
  • Depth: 5.5" (14.0 cm)
• Weight: 0 lbs 8.0 oz (0.2 kg)

Features

• Eight Isolated Channels: Provides independent and accurate analog output for each channel, enhancing system reliability.
• Versatile Output Options: Supports both voltage (±10.4 V) and current (0 to 21 mA) outputs, offering flexibility in application design.
• High Resolution: Ensures precise control with voltage resolution of 320 µV per count and current resolution of 650 nA per count.
• Robust Protection: Features overvoltage protection up to 24 VAC/VDC and electronic current limiting to prevent damage from open or short circuits.
• Efficient Power Management: Low power dissipation of 6.9 W max, contributing to energy efficiency without compromising performance.
• Compact Design: Small form factor facilitates easy installation and integration into existing systems.
• Reliable Connections: Utilizes a 20-position terminal block (TC-TBNH) for secure and stable connections.
