IC200ALG321 | GE Fanuc VersaMax | Analog Current Output Module

Description

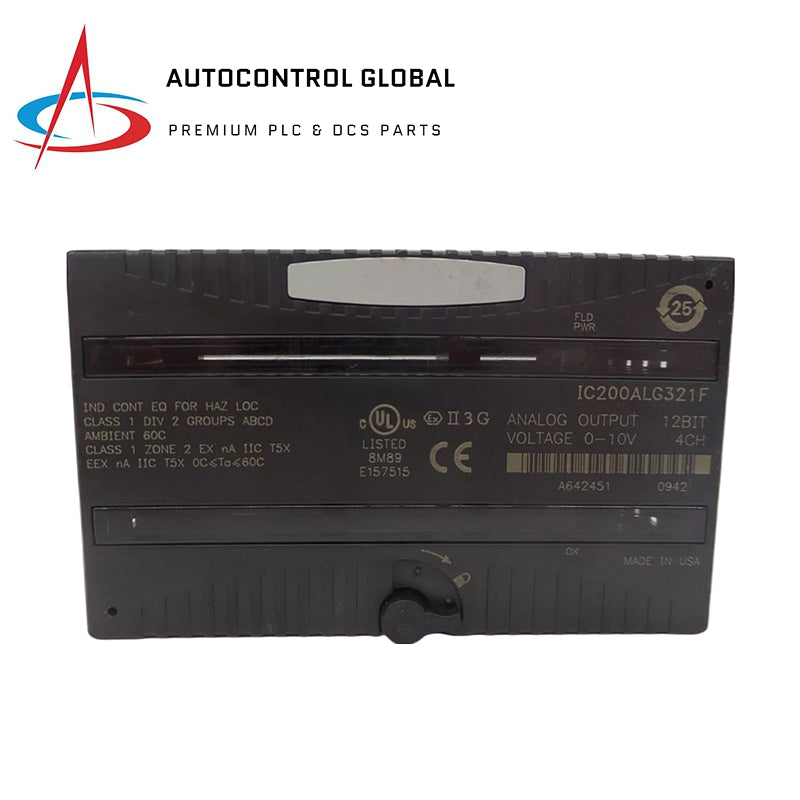

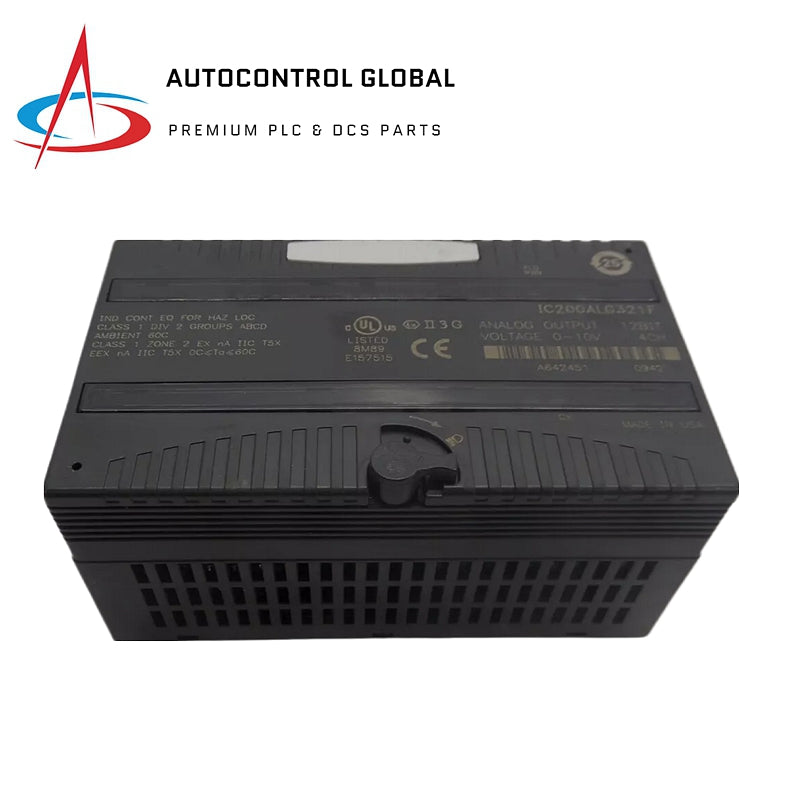

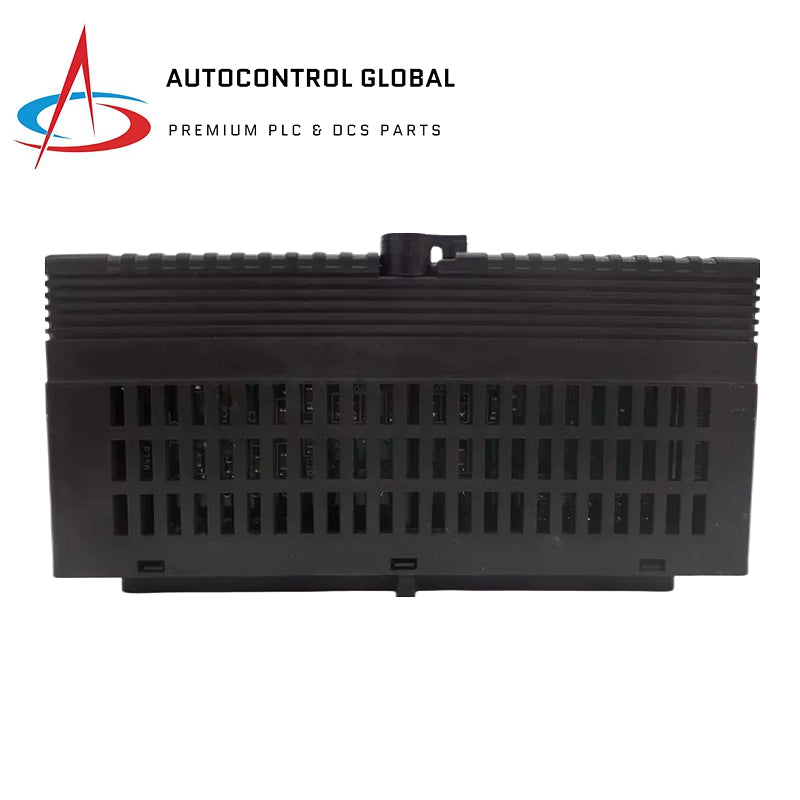

The IC200ALG321 is a 4-point Analog Voltage Output Module from the VersaMax series by GE Fanuc. It provides 0-10.24 VDC output signals with 12-bit resolution (2.5 mV) and a maximum update rate of 0.3 ms. This module is designed to control devices like valves, VFDs, and dampers, offering excellent accuracy and diagnostic capabilities.

Technical Specifications

• Model: IC200ALG321
• Type: Analog Output Module
• Outputs: 4 analog voltage outputs
• Output Range: 0-10.24 VDC
• Voltage Resolution: 12 bits (2.5 mV)
• Accuracy: 0.3% typical, ±1% max
• Current Consumption: 210 mA max
• Power Supply: 18-30 VDC or 9.6-15 VDC
• Nominal Voltage: 12 / 24 VDC
• Update Rate: 0.3 ms
• Isolation: 250 VAC continuous, 1500 VAC for 1 minute
• LED Indicators: 2 (Field Power, OK)
• Diagnostic Tools: Yes
• Wiring: Single-ended
• Default Output: 0 VDC

Features

• High Resolution: 12-bit resolution, 0-10.24 VDC output, 2.5 mV steps.
• Fast Update: 0.3 ms update rate.
• Flexible Power Supply: 18-30 VDC or 9.6-15 VDC.
• Robust Isolation: 250 VAC continuous, 1500 VAC for 1 minute.
• Built-in Diagnostics: Field power and status LEDs.
• Wide Applications: Controls valves, VFDs, positioners, and more.

Connectivity and Expansion

• Power Requirements: External power supply, 18-30 VDC or 9.6-15 VDC.
• Field Power Detection: Detects field-side power and CPU stop.

Performance and Reliability

• Accuracy: 0.3% typical accuracy.
• Temperature Range: Operates from 0 to 60°C.
• Load Characteristics: 5000 ohms min. for resistive, 1 µF max. for capacitive.
