IC200ALG620 | GE Fanuc | Resistance Temperature Detector Input Module

Description

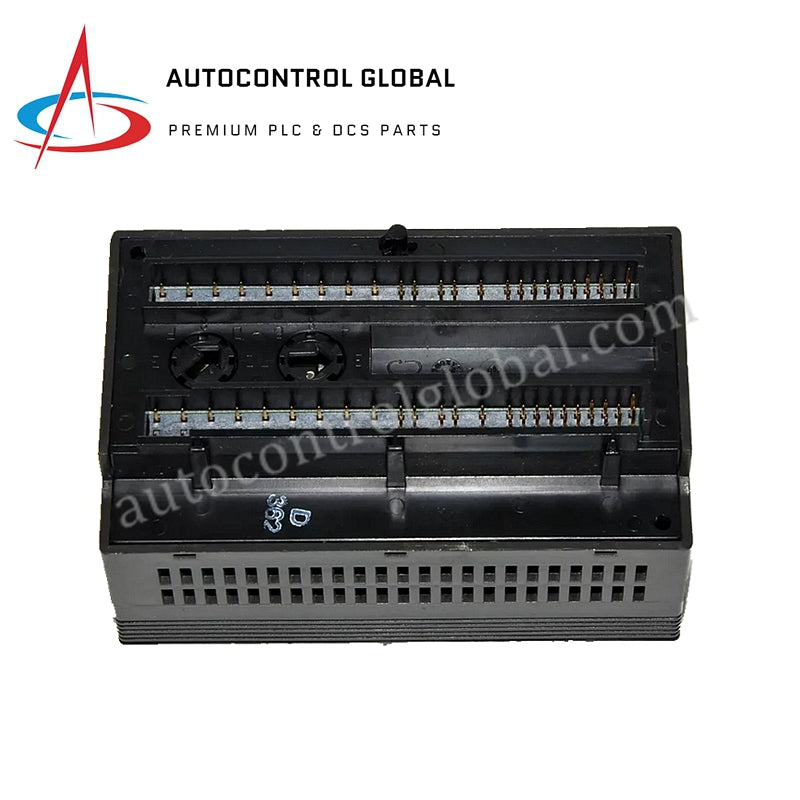

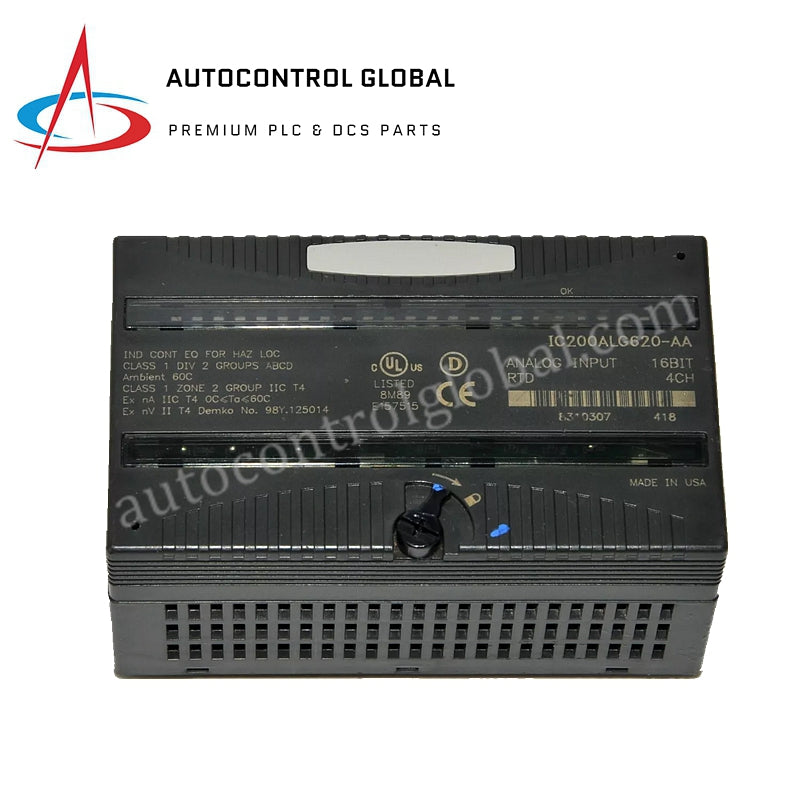

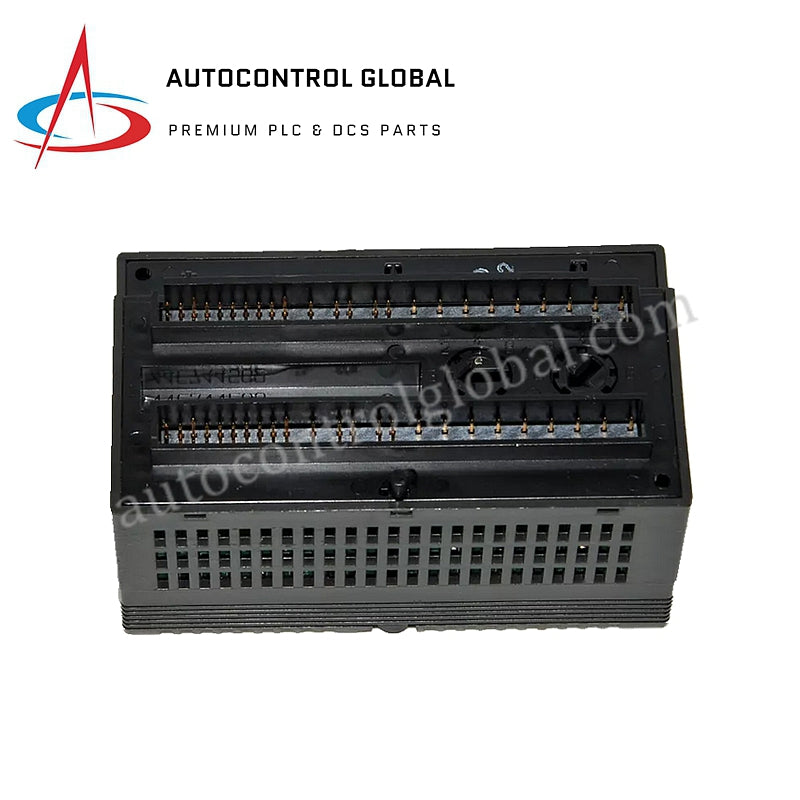

IC200ALG620 is a 4-point RTD/Resistance Input Module by GE Fanuc, part of the VersaMax series, providing precise temperature and resistance measurements.

Specifications

• Series: VersaMax
• Resolution: 16 bits
• Bus Voltage: 5 V DC
• Resistance Input Range: 0-500 Ohms; 0-3000 Ohms

Performance Details

• Update Rate: 210 ms
• Digital Resolution: 15 bits plus sign
• Accuracy at 25°C: ±0.15% for resistance and temperature measurements
• Frequency: 50-60 Hz

Compatibility

• RTD Sensors: Platinum (25, 100, 1000 Ohms), Copper (10, 50, 100 Ohms), Nickel (100, 120 Ohms), Nickel/Iron (604 Ohms)
• RTD Wiring: 3-wire and 4-wire

Isolation Ratings

• Input to Frame: 1500 V AC
• Input to Logic: 250 V AC
