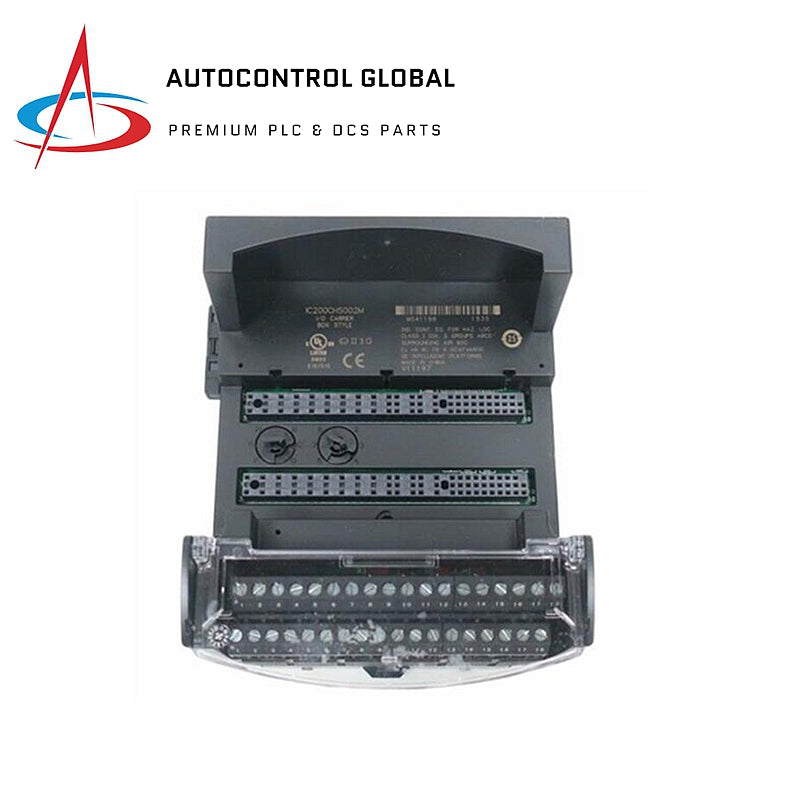

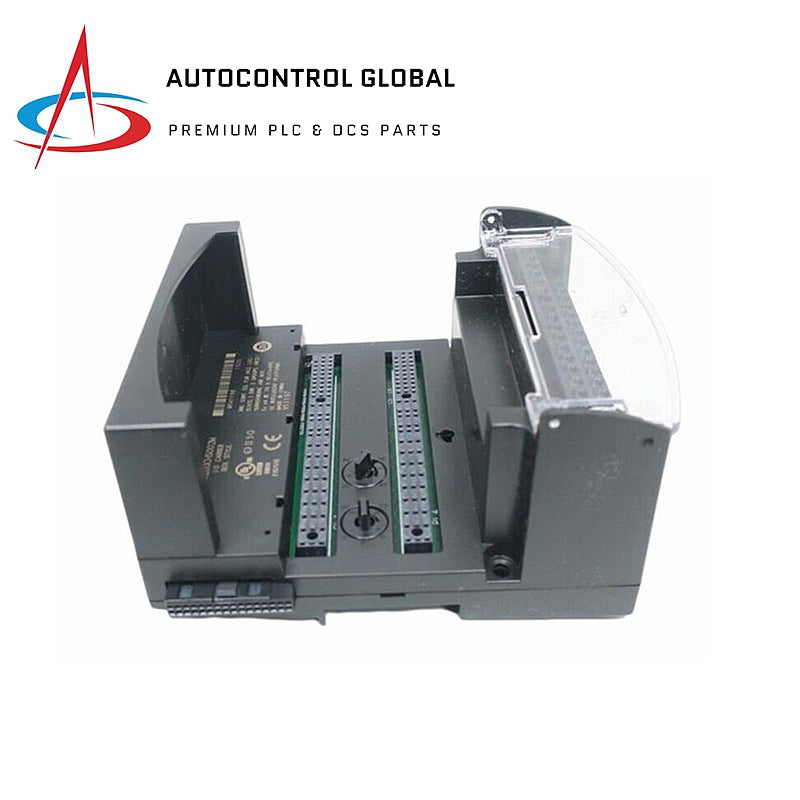

IC200CHS002 | GE Fanuc Compact I/O Carrier Module

Overview

The IC200CHS002 is a versatile I/O Carrier Module from the VersaMax series, offering easy modular I/O integration and servicing. It supports a wide range of I/O modules, ensuring reliable communication and efficient control for industrial automation applications.

Product Information

• Brand: GE Fanuc (VersaMax)
• Manufacturer: GE Intelligent Platforms
• Part Number: IC200CHS002
• Product Type: Box-style Terminal I/O Carrier
• Terminal Configuration: 36 terminals (A1-A18, B1-B18)

Key Specifications

• Dimensions:
  • Height: 133.4 mm (5.25 in)
  • Length: 66.80 mm (2.63 in)
• Wire Size:
  • Single wire: AWG #14 to AWG #22
  • Dual wire connection: AWG #18
• Voltage Rating: 0-264 VAC
• Current Rating:
  • Per point: 2 Amps
  • Power/Ground: 8 Amps
• Transient Voltage Rating: Up to 300 VAC
• Mounting: Horizontal, DIN Rail
• Terminal Torque: 0.37 to 0.45 lb-ft
• Mounting Clearance:
  • Top and bottom: 2 inches (5.1 cm)
  • Side: 1 inch (2.54 cm)

Compatibility

• Modular Flexibility: Supports 32-point I/O modules and high-density devices from the VersaMax family.
• Keying System: Embedded keying dials ensure secure and correct module alignment.

Applications

• Industrial Automation: Ideal for use in manufacturing and process control systems requiring modular I/O management.
• Control Systems: Perfect for systems needing flexible and reliable I/O connectivity.
