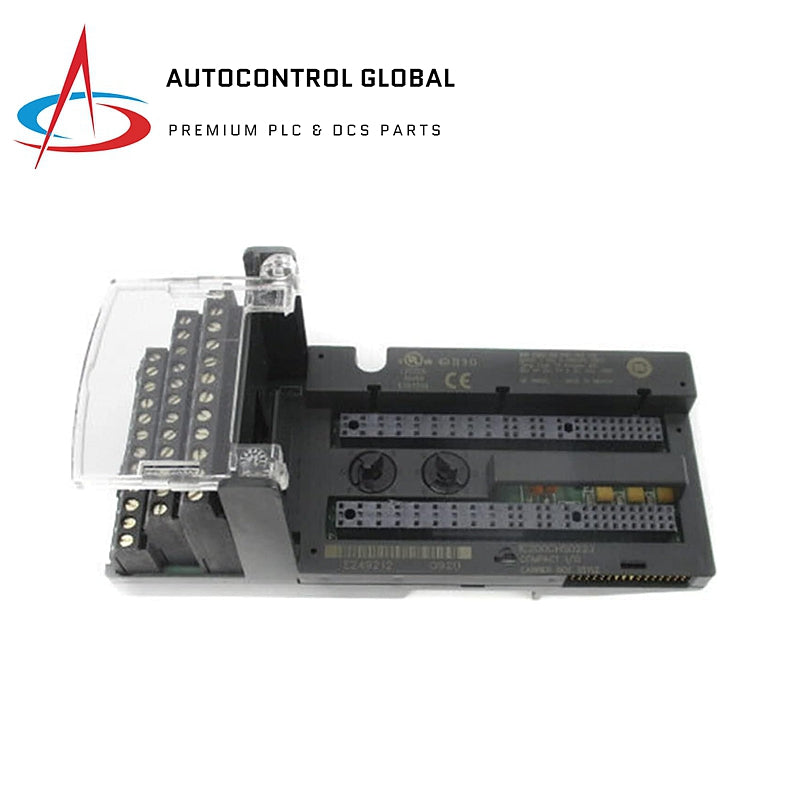

IC200CHS022 | GE Fanuc | Compact I/O Carrier Module

Overview

The IC200CHS022 is a compact I/O carrier module for the VersaMax series, designed for easy wiring and flexible module installation.

Specifications

• Model: IC200CHS022
• Terminals: 36 screw-type (A1-A18, B1-B18)
• Current per Point: 2 Amps
• Current per Power/Ground: 8 Amps
• Voltage Rating: 0-264 VAC
• Transient Voltage Rating: 300 VAC
• Mounting: DIN rail or panel
• Dimensions: 66.8 x 70 x 163.5 mm
• Temperature Range: 0-60°C

Functionality

• Voltage Rating: 264 VAC, 300 VAC transient withstand
• Wiring Flexibility: Supports single or two-wire connections (AWG #14 to #22)
• Mounting Options: DIN rail or panel
• I/O Security: Card holder for secure I/O module attachment
• Modular Design: Easy I/O module replacement

Performance Features

• Current Handling: 2 Amps per terminal, 8 Amps for power/ground
• Durability: Withstands up to 300 VAC transients
