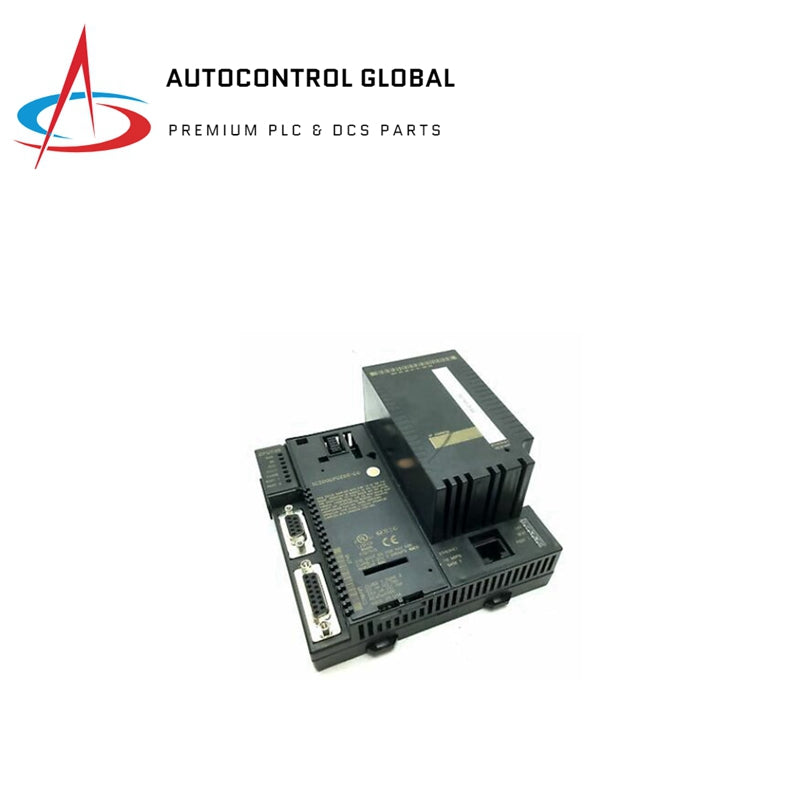

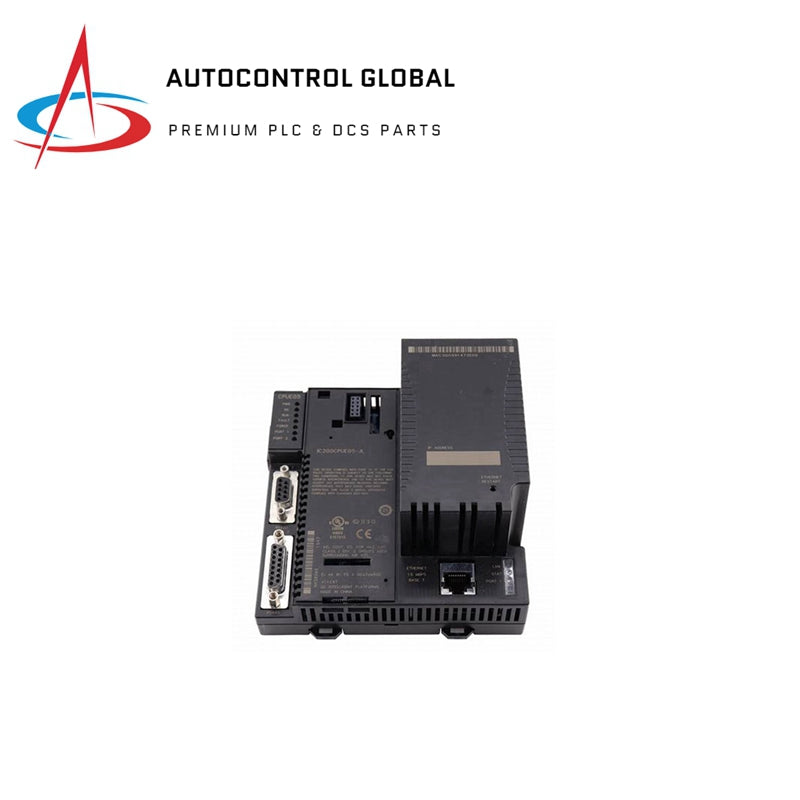

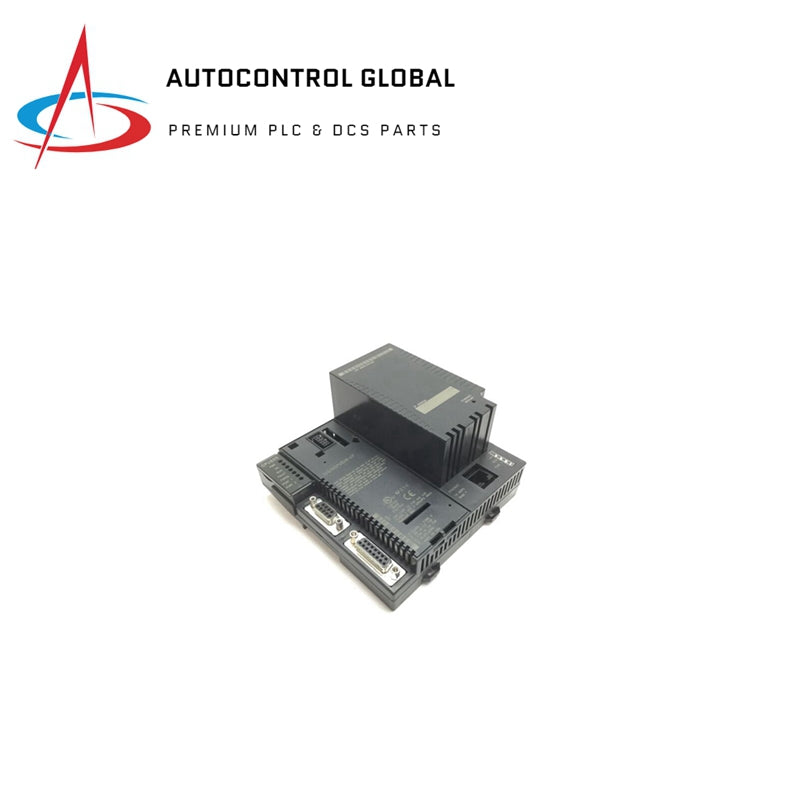

IC200CPUE05 | GE Fanuc | CPU with Embedded Ethernet Interface Module

Manufacturer: GE Fanuc
Part Number: IC200CPUE05
Condition：New with Original Package
Product Type: Ethernet Interface Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Specifications

Part Number: IC200CPUE05
Dimensions (W x H x D in mm): 126 x 128 x 69.1
Program Storage: System flash, battery-backed RAM
Power Requirements:
- 5V uses 220mA
- 3.3V uses 570mA
Floating Point: Yes
Boolean Execution Speed: 0.8 ms/K (typical)
Realtime Clock Accuracy (for timer functions): 100ppm (0.01%) or +/- 9 sec/day
Time of Day Clock Accuracy: 100ppm at full temperature range
Embedded Communications:
- RS-232
- RS-485
- Ethernet
Configurable Memory: 64K bytes maximum
Ethernet Data Rate: 10Mbps (half- or full-duplex)
Ethernet Port: RJ-45, UTP
Number of SRTP Server Connections: 8
Number of Ethernet Global Data (EGD) Configuration-Based Exchanges: 32
EGD Exchange Limits:
- 100 data ranges per exchange
- 1400 bytes of data per exchange
EGD Time Synchronization: NTP
Load EGD configuration from PLC to programmer: Yes
Remote Station Manager over UDP: Yes
Local Station Manager (RS-232): Via CPU Port 1

Features

Supports up to 64 modules with up to 2048 I/O points
Can be either autoconfigured or configured from a programmer using configuration software
64KB of configurable memory for the application program, hardware configuration, registers, analog inputs, and analog outputs
Programming in Ladder Diagram and Instruction List
Non-volatile flash memory for program storage
Battery backup for program, data, and time of day clock
Run/Stop switch
Floating point (real) data functions
Embedded RS-232, RS-485, and Ethernet communications
Supports EZ Program Store device
70mm height when mounted on DIN rail with power supply
