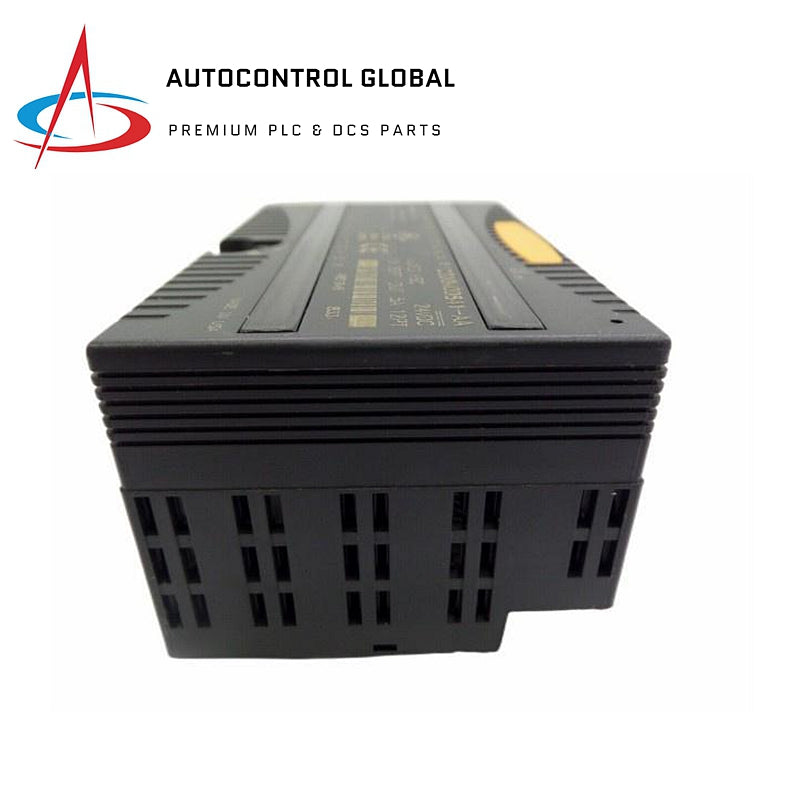

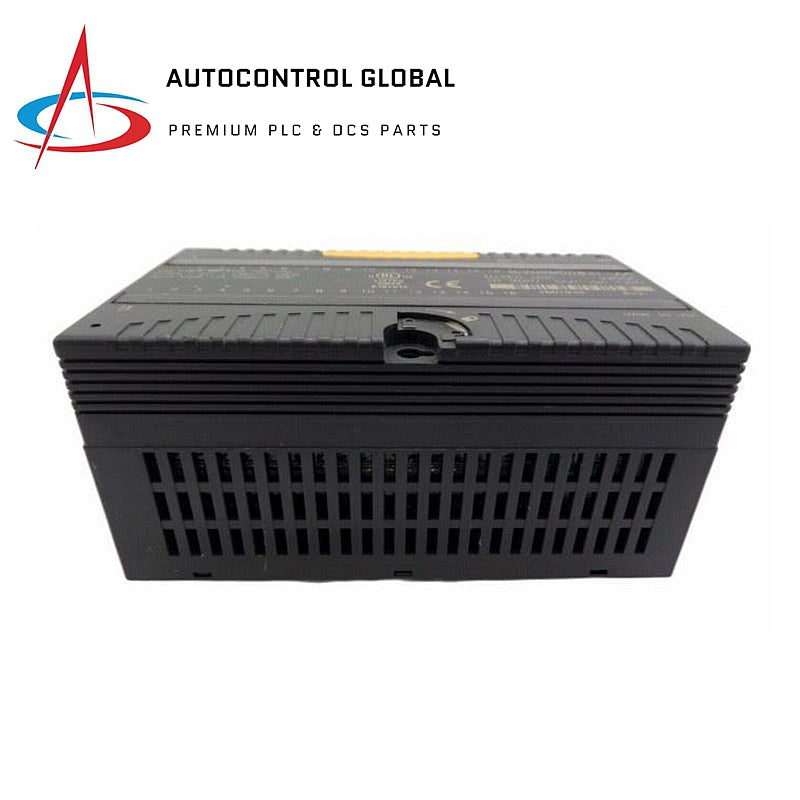

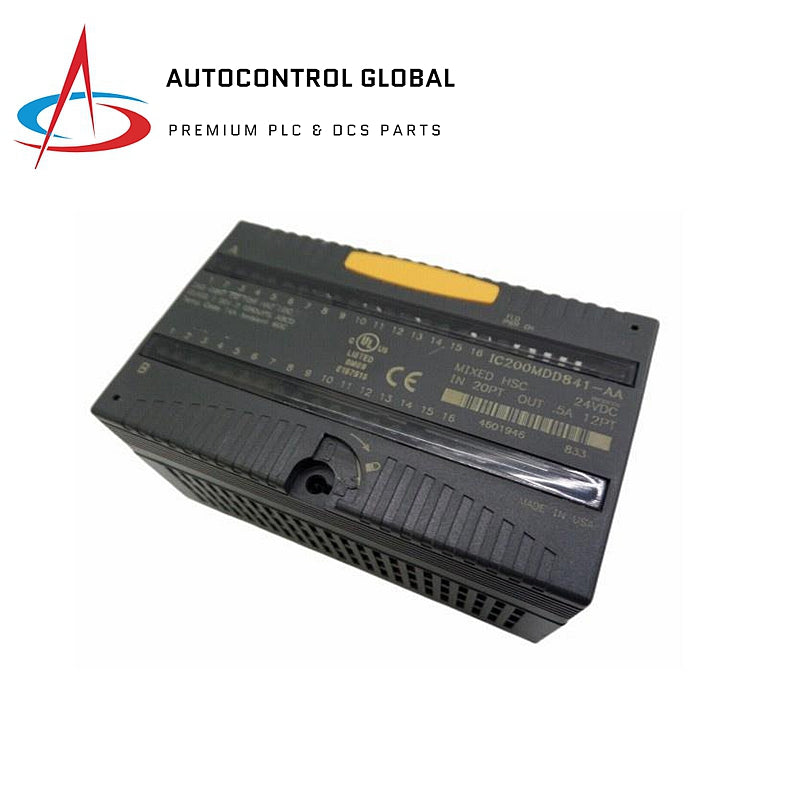

IC200MDD841 | GE Fanuc High-Speed Counter Module

Product Overview

The IC200MDD841 is a high-speed counter module from GE Fanuc's VersaMax series. It features configurable I/O points and is designed for applications requiring precise pulse signal processing.

Specifications

• Model: IC200MDD841
• I/O Points: 32 (Configurable)
• Inputs: 20 positive logic
• Outputs: 12 positive logic
• High-Speed Counter: 4 Type A counters
• Pulse Signal Speed: 80 kHz
• Voltage: 24V DC
• Current: 30 mA
• Backplane Power: 5V
• Dimensions:
  • Length: 66.8 mm (2.63 in)
  • Width: 110 mm (4.3 in)
  • Depth: 50 mm (1.96 in)

Additional Information

• I/O Configuration: Pulse width modulation, ramping pulse train, pulse train, high-speed counters
• Power Consumption: 30 mA from the backplane (5V)
• Current Rating: 3 to 8 mA (on), 0 to 0.5 mA (off)
• Error Detection: Status display up to 13 words
• Status Indicators: Onboard LED indicators

Applications

• Industrial Automation: Ideal for systems requiring high-speed counting and pulse signal processing, such as motion control and measurement applications.
