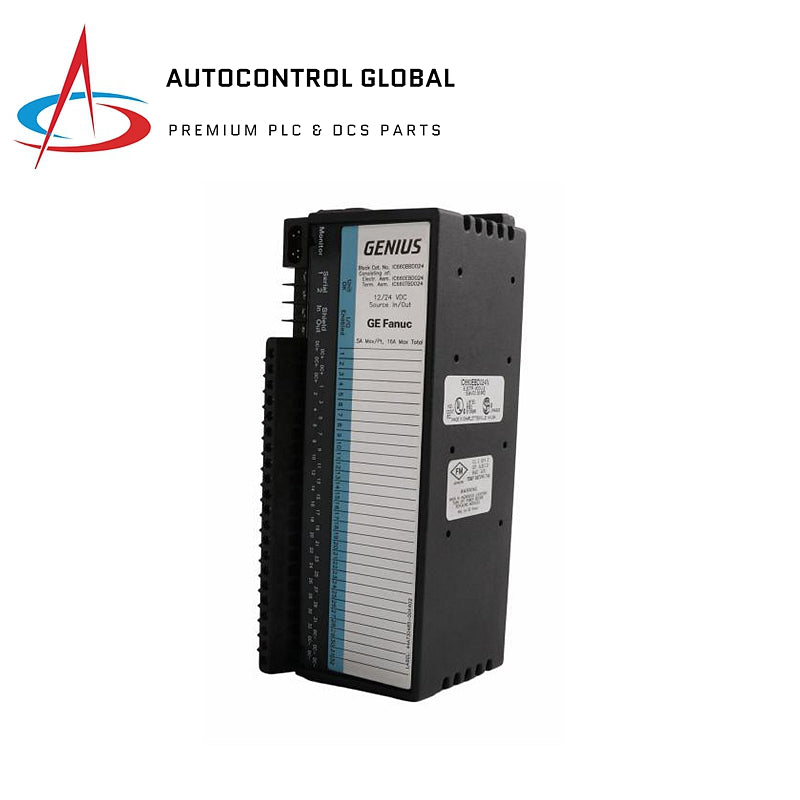

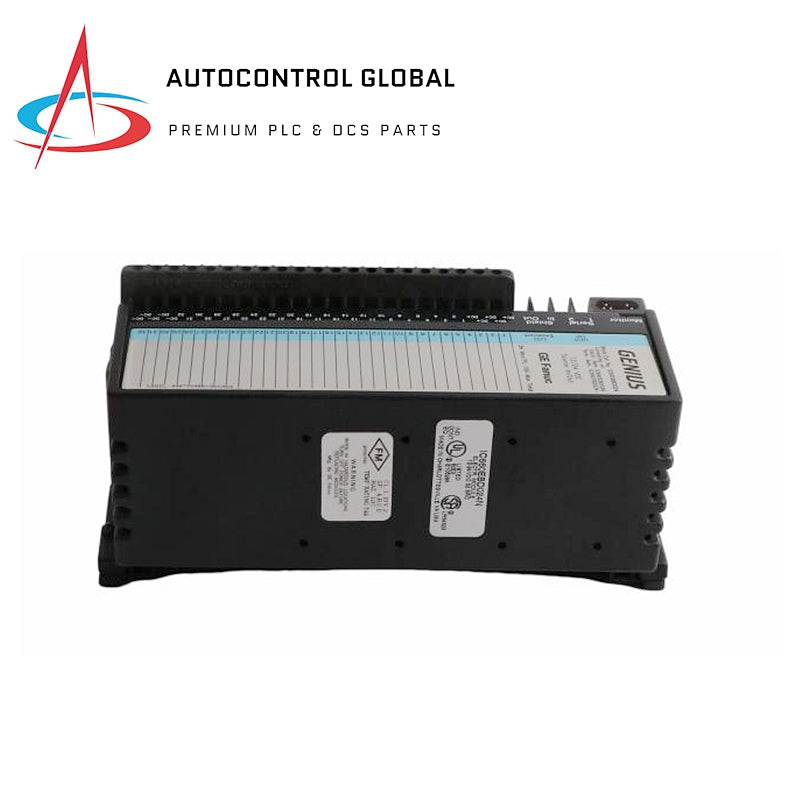

IC660EBD024 | GE Fanuc | Electronics Assembly

Overview

The IC660EBD024 is a 32-circuit discrete I/O electronics assembly from GE Fanuc's Genius I/O series, offering isolated I/O circuits with high reliability and fast response time.

Key Specifications

• Model: IC660EBD024
• I/O Circuits: 32 isolated
• Block-to-Block Isolation: 850 V
• Operating Voltage: 10 to 30 V DC
• Max. Output Current: 0.5 A per circuit
• Power Requirements: 150 mA (typical), 300 mA (max)
• Heat Dissipation:
  • Min. (8 inputs): 11 W
  • Max. (32 outputs): 18 W
• Temperature Range: 0°C to 60°C (operating), -40°C to 100°C (storage)
• Humidity: 5% to 95% non-condensing
• Weight: 4 lbs (1.8 kg)

Performance

• Output Diagnostics: Switch fault detection
• Response Time: 0.5 µs turn-on delay
• Current Rating: 16 A (block output)
