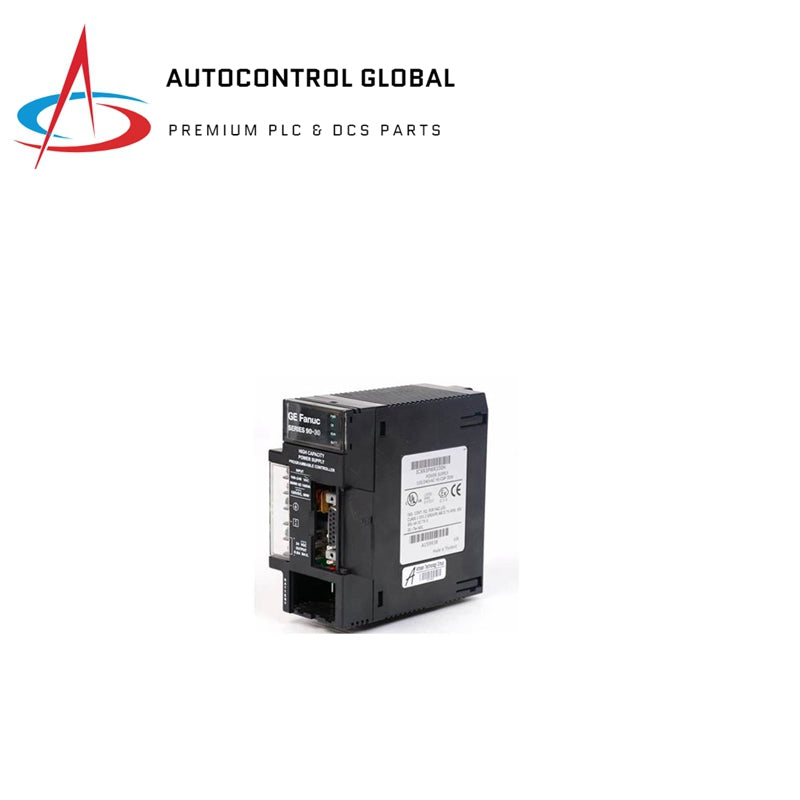

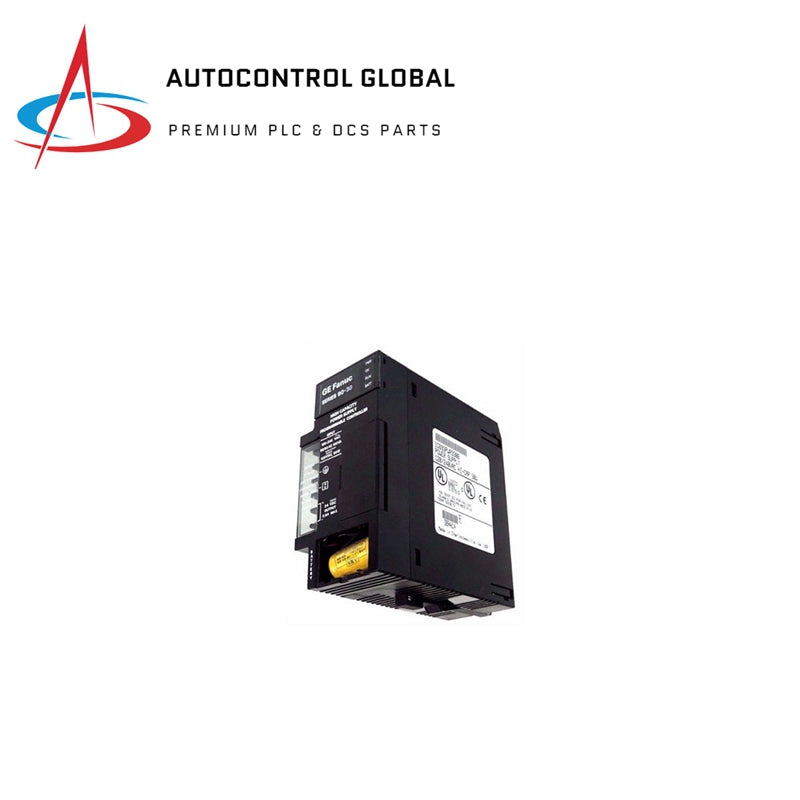

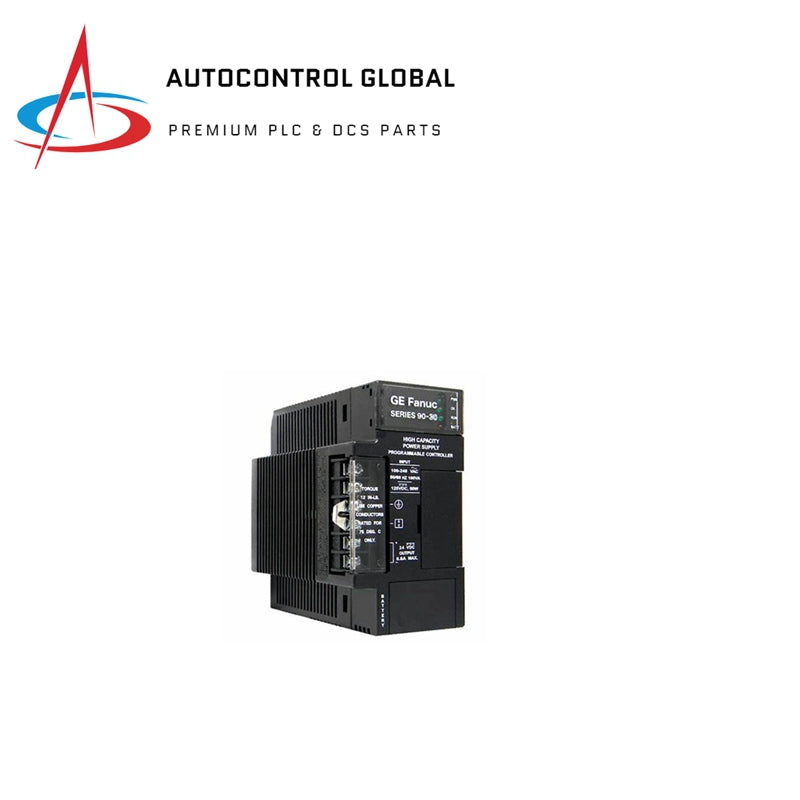

IC693PWR330 | GE Fanuc | Power Supply Module

Description
The IC693PWR330 offers a dependable power supply solution tailored for PLCs, boasting a robust output capacity suitable for diverse industrial applications.

Features

• High Capacity: Provides up to 30 watts of power.
• Wide Input Voltage Range: Accepts 85 to 264 VAC or 100 to 300 VDC.
• Multiple Outputs: Furnishes +5 VDC, +24 VDC Relay power, and an isolated +24 VDC for internal and external applications.
• Field Wiring Connections: Equipped with 6 terminals for user connections, covering AC power source and ground wires.
• Overvoltage Protection: Incorporates input overvoltage protection mechanisms.
• Overcurrent Protection: The 5V logic output is electronically limited to avert damage.

Specifications

• Output Capacities: 30 watts @ 5VDC, 20 watts @ 24VDC, and 15 watts @ +24VDC Relay1.
• Installation: Modular design facilitates easy plugging into Series 90-30 baseplates.
• Environmental Suitability: Engineered for standard industrial environments.
