IC694MDL740 | GE Fanuc | PACsystem RX3i Positive Logic Output Module
IC694MDL740 | GE Fanuc | PACsystem RX3i Positive Logic Output Module
/ 2

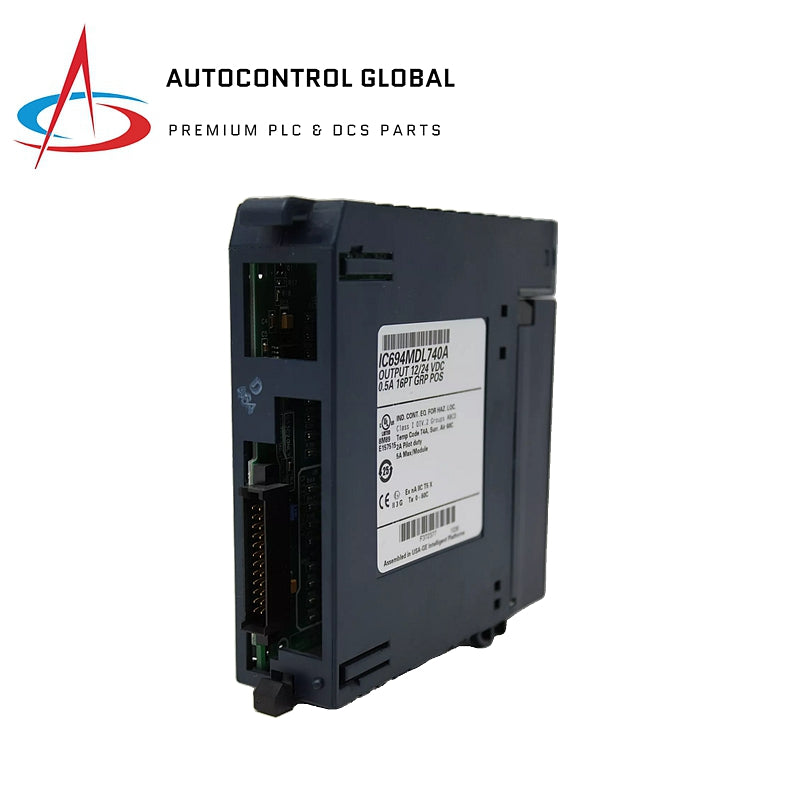

IC694MDL740 | GE Fanuc | PACsystem RX3i Positive Logic Output Module

  • Manufacturer: GE Fanuc

  • Part Number: IC694MDL740

  • Condition：New with Original Package

  • Product Type: Positive Logic Output Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

The IC694MDL740 is a PACsystem RX3i Positive Logic output module featuring 16 discrete channels. It operates with a voltage range of 12-24 VDC, providing 0.5 Amps per point and 2 Amps per module. The module draws 110 mA when all outputs are active.

Key Specifications

  • Output Voltage Range: 12 to 24 VDC (+20%, -15%)
  • Output Current: 0.5 Amps per point, 2 Amps per module
  • Output Voltage Drop: 0.5 V maximum
  • Inrush Current: 4.78 A for 10 ms

Electrical & Isolation Details

  • Power Consumption: 110 mA (all outputs on) from 5V DC bus
  • Isolation: 250 VAC continuous (Field to Backplane, optical), 1500 VAC for 1 minute (Field to Frame Ground), 250 VAC continuous, 1500 VAC for 1 minute (Group to Group)

Performance

  • On/Off Response Time: 2 ms maximum (both on and off)
  • Off-State Leakage: 1 mA maximum
  • LED Indicators: Yes

Compatibility

  • Series: PACSystem RX3i
  • Wiring Configuration: Positive Logic

Additional Information

  • Module Channels: 16 channels in two groups of 8
  • Nominal Output Voltage: 12 / 24 VDC
  • Lifecycle Status: Active
