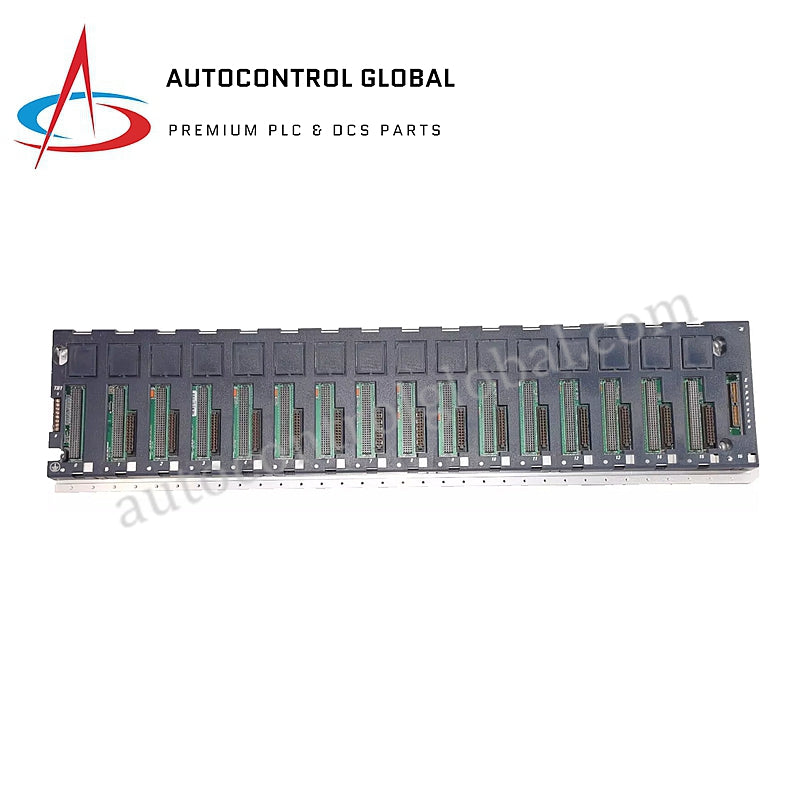

IC695CHS016 | PACSystem RX3i GE Fanuc Universal Backplane

Description

The IC695CHS016 is a universal backplane designed for the PACSystem RX3i and Series 90-30 I/O modules. It supports a variety of modules and facilitates connectivity with PCI and Serial Bus connectors, providing a reliable backbone for modular I/O systems.

Key Specifications

• Number of Slots: 16
• Current Rating:
  • 600 mA at 3.3 VDC
  • 240 mA at 5 VDC
• Input: +24 Volts
• Bus Connectors: PCI Bus / Serial Bus

Physical Features

• Mounting: Rack
• Dimensions:
  • Height: 141.4 mm (5.5 inches)
  • Width: 602 mm (23.7 inches)
  • Depth: 147.3 mm (5.8 inches)
• Required Protection: NEMA/UL Type 1 (IP20)
• Minimum Required Clearance: 102 mm (4 inches) on all sides
• Recommended Wire Size: 14 to 22 AWG
• Mounting Orientation: Horizontal
• Backplane Orientation: Horizontal
• Enclosure: IP54 or greater

Power and Terminals

• Internal Power Consumption:
  • 240 mA at 5 Volts DC
  • 600 mA at 3.3 Volts DC
• Input Terminals:
  • TB1; Terminal 7: Isolated 24VDC
  • Terminal 8: Isolated ground
