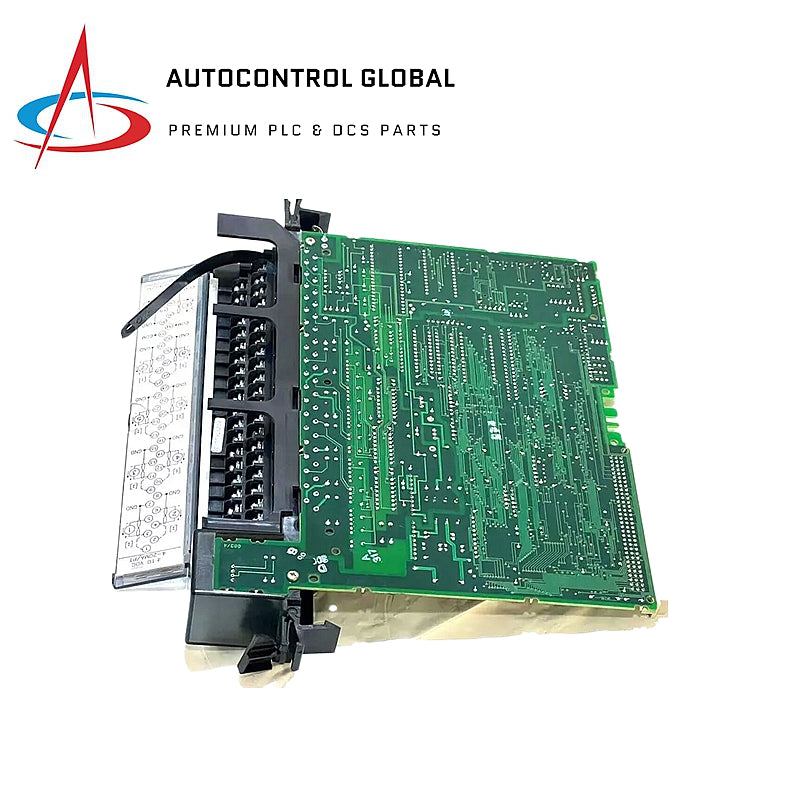

IC697ALG230 | GE Fanuc | Base Converter Module Series 90-70

Overview

IC697ALG230 is a base converter module for the GE Fanuc Series 90-70 PLC system. It supports both 4-20 mA and -10V to +10V input signals with 16-bit resolution and is expandable to 120 inputs using expander modules.

Specifications

• Brand: GE Fanuc
• Series: 90-70
• Part Number: IC697ALG230
• Channels: 8 analog inputs
• Input Signal: 4-20 mA, -10V to +10V
• Configuration: Differential wiring
• Resolution: 16 bits
• Update Rate: 2.4 ms to 2.8 ms
• Power: 0.8A (4W) at +5V DC
• Accuracy: Voltage ±0.01%, Current ±0.05%
• Terminals: 40
• Expanders: IC697ALG440, IC697ALG441

Features

• Expandable: Supports up to 120 inputs.
• Fast Update: 2.4 ms to 2.8 ms rate.
• Differential Input: Reduced EMI for accurate measurements.
• ADC: 14-bit analog-to-digital conversion.
• Isolation: Optical isolation for protection.

Applications

• Automation Systems: Ideal for precise signal conversion in industrial control.
• Data Monitoring: Used for high-accuracy voltage and current measurements.

Installation

• Expandable: Connects up to 7 expander modules.
• Connector: 40-terminal removable block.
• Software: Configured with MS-DOS Windows software.

Performance

• High Accuracy: Minimal signal distortion with excellent calibration.
• Fast Response: Quick readings with low latency for precise control.
