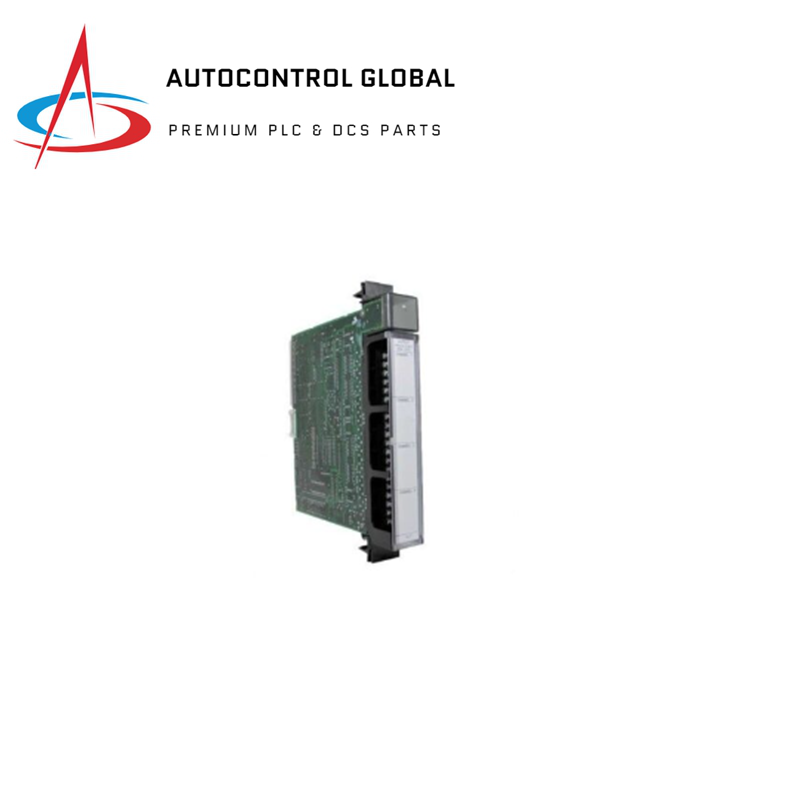

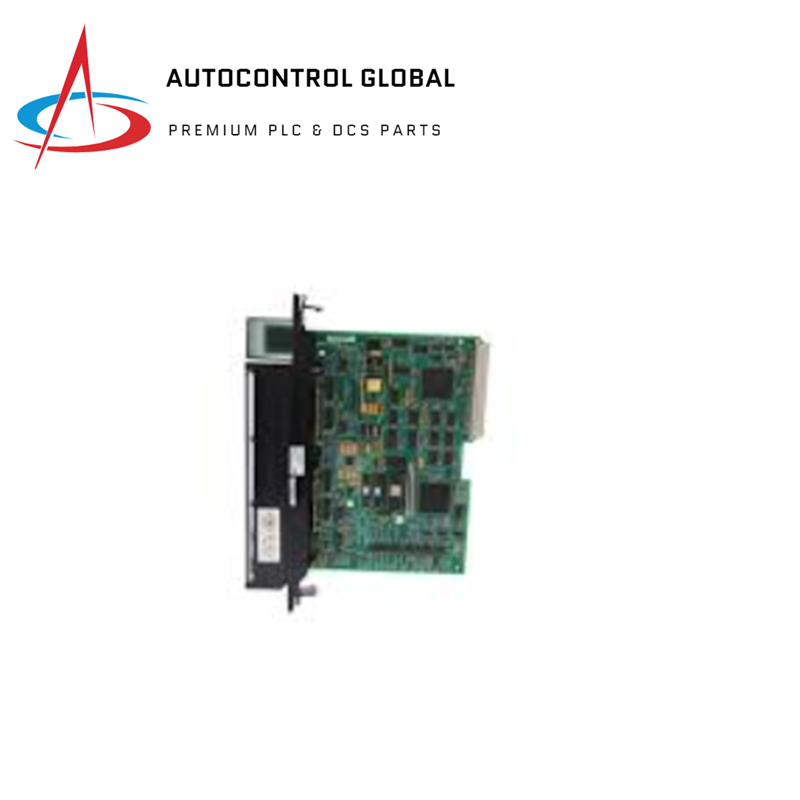

IC697ALG320 | GE Fanuc | High-Level Analog Output Module

Technical Specifications

• Number of Output Channels: 4
• Output Type: Current or Voltage
• Output Range: 0-22.5 mA
• Resolution: High
• Accuracy: High
• Supply Voltage: DC 5V
• Operating Temperature: 0-55°C

Key Features and Functions

• High-Precision Analog Output: Provides current loop signals ranging from 0 to 22.5 mA. Each output channel can be individually calibrated by the user to ensure the accuracy of the output signals.
• Flexible Configuration: Supports both voltage and current outputs. The module includes four independent output channels, each configurable for current or voltage output, and allows for setting bipolar or unipolar output.
• Strong Compatibility: Fully compatible with GE Series 90-30 modules, enabling seamless integration into existing control systems.
• High Reliability: Designed with industrial-grade standards for excellent resistance to interference and stability, making it suitable for harsh industrial environments.

Applications

• Process Control: Controls process variables such as temperature, pressure, and flow.
• Motion Control: Manages motor speed, position, and other motion parameters.
• Data Acquisition: Converts analog sensor signals into digital signals for data collection and analysis.
