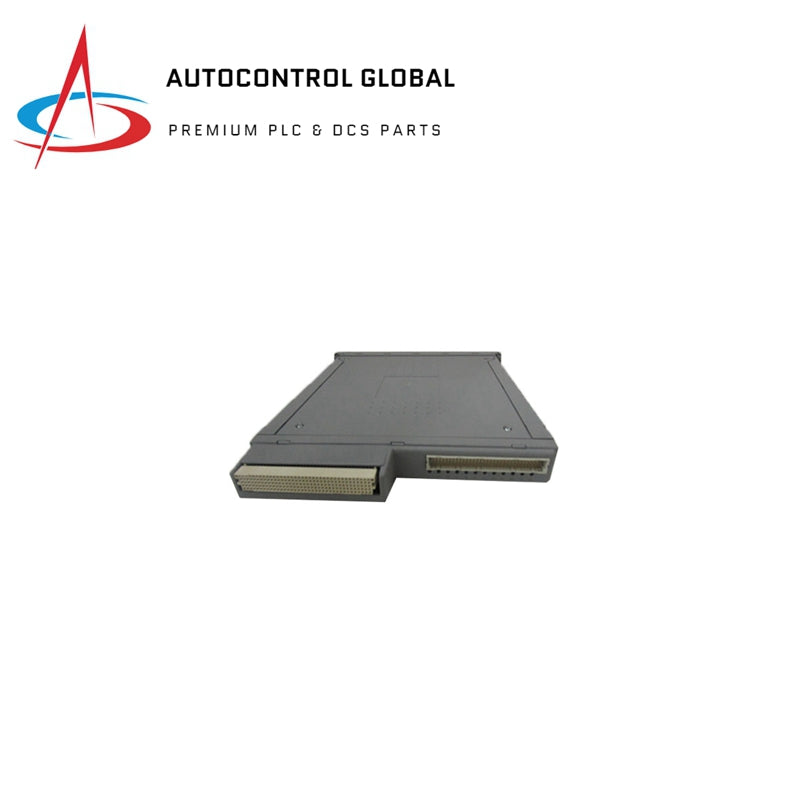

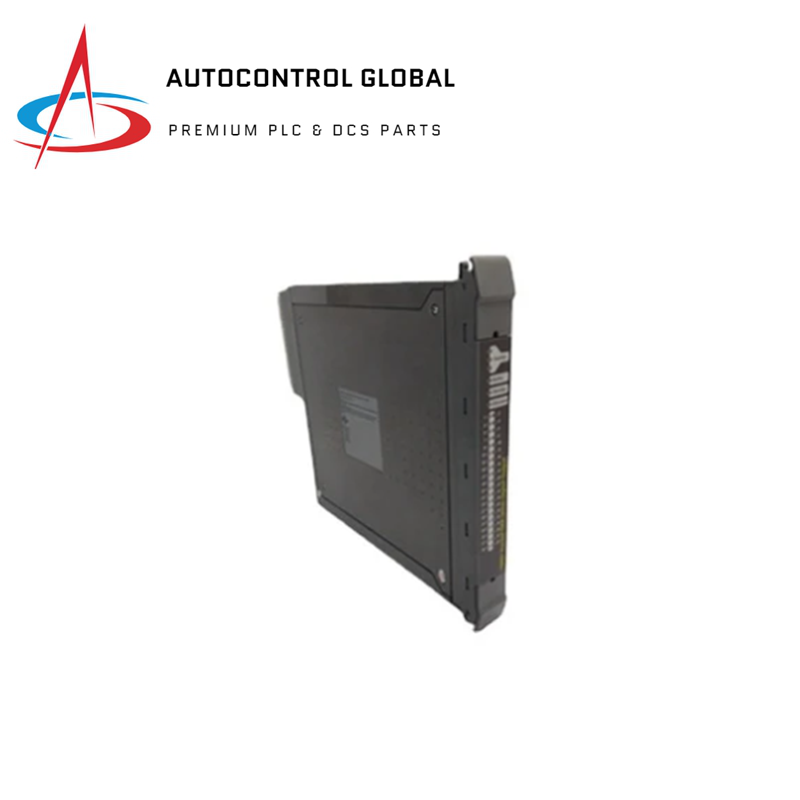

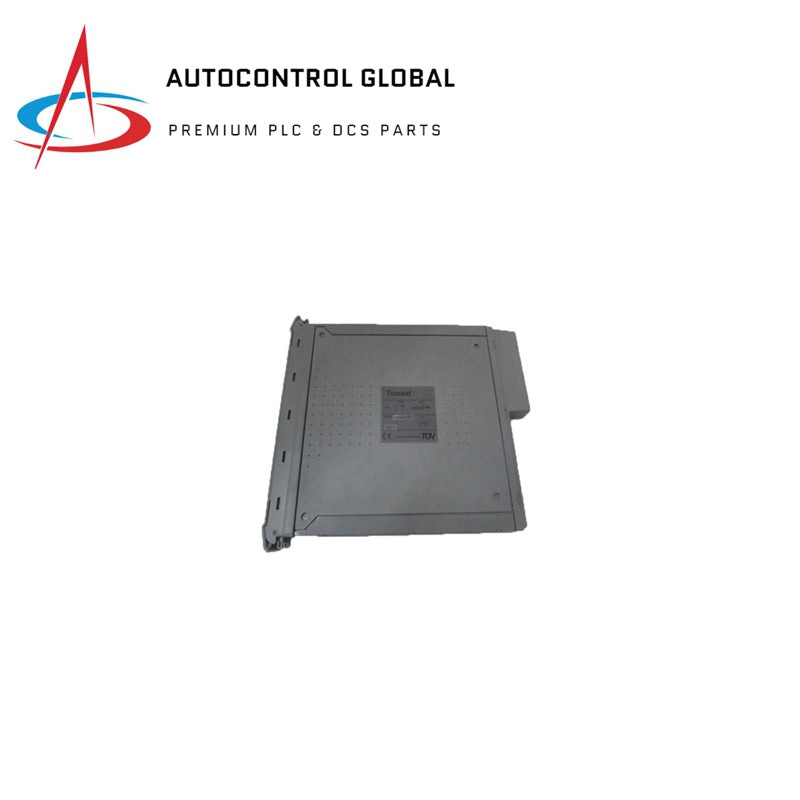

ICS Triplex T8311 Trusted TMR Expander Interface

Description

The ICS TRIPLEX T8311 is a trusted TMR expander interface that provides a secure and reliable connection between the ICS TRIPLEX controller chassis and the CS300 chassis. It supports up to 16 TMR channels, and can be used to connect a variety of field devices, including servo motors, drives, and sensors.

Specifications

• Voltage Range: 20 to 32V DC
• Heat Dissipation: 40W
• Use with Chassis: T8300
• Maximum Load: 40W
• Module Clocks: 50MHz
• Expander Bus Data Rate: 250Mbps
• I/O Interface: Expander Chassis backplane

Environmental Specifications

• Operating Temperature: -5°C to 60ºC (13°F to 140°F)
• Non-operating Temperature: -25°C to 70ºC (-25°F to 158°F)
• Operating Humidity: 5 to 95% RH

Physical Dimensions

• Dimensions (LxWxH): 30.3 cm x 3.1 cm x 26.6 cm
• Weight: 1.14 kg
• Shipping Weight: 3 kg
