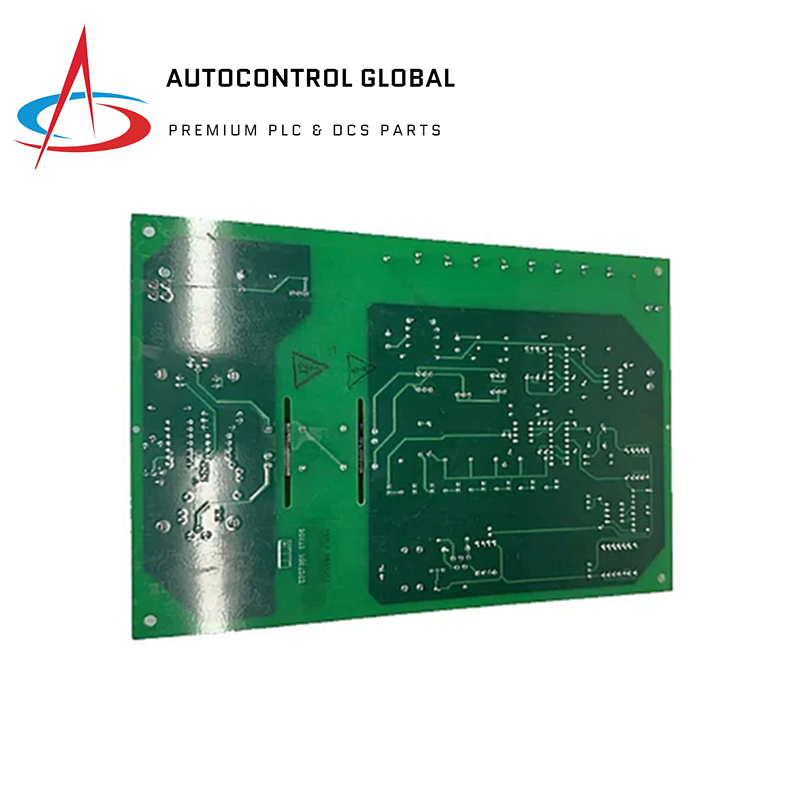

IS200EDCFG1BAA | General Electric | Exciter DC Feedback Board
Manufacturer: GE Fanuc
-
Part Number: IS200EDCFG1BAA
Condition：New with Original Package
Product Type: Exciter DC Feedback Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The IS200EDCFG1BAA is an Exciter DC Feedback Board from General Electric, part of the EX2100 excitation system. It measures field current and voltage across the SCR bridge, interfaces with the EISB board via fiber-optic link, and features an LED indicator for power supply feedback.
Key Information
- Part No.: IS200EDCFG1BAA
- Manufacturer: General Electric
- Product Type: Exciter DC Feedback Board
Specifications
- Size: 15.9 cm x 10.2 cm
- Technology: Surface-mount
- Operating Temperature: -30 to 65°C
Features
-
Fiber-Optic Interface: Offers voltage isolation and noise immunity.
- Plastic Fiber: Up to 10 meters.
- Hard Clad Silica Fiber: Up to 90 meters.
- Bending Radius: 1.5 inches minimum.
-
Field Current Measurement: Generates a low-level signal proportional to field current (max 500 mV).
-
Signal Processing: Amplified by a differential amplifier with output between -5 V and +5 V.
-
VCO Integration: Output frequency modulated based on field current.
