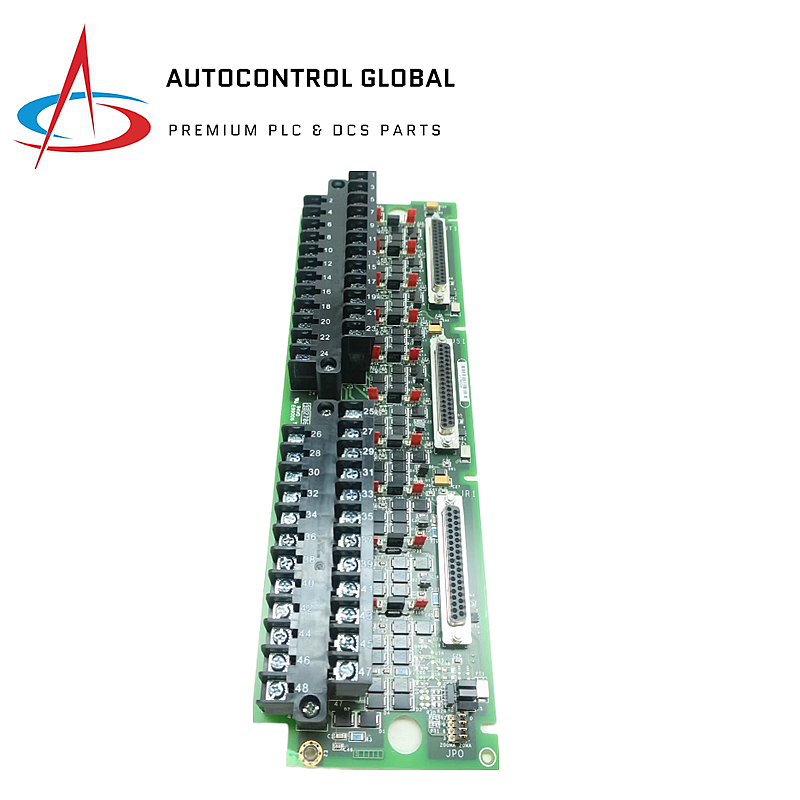

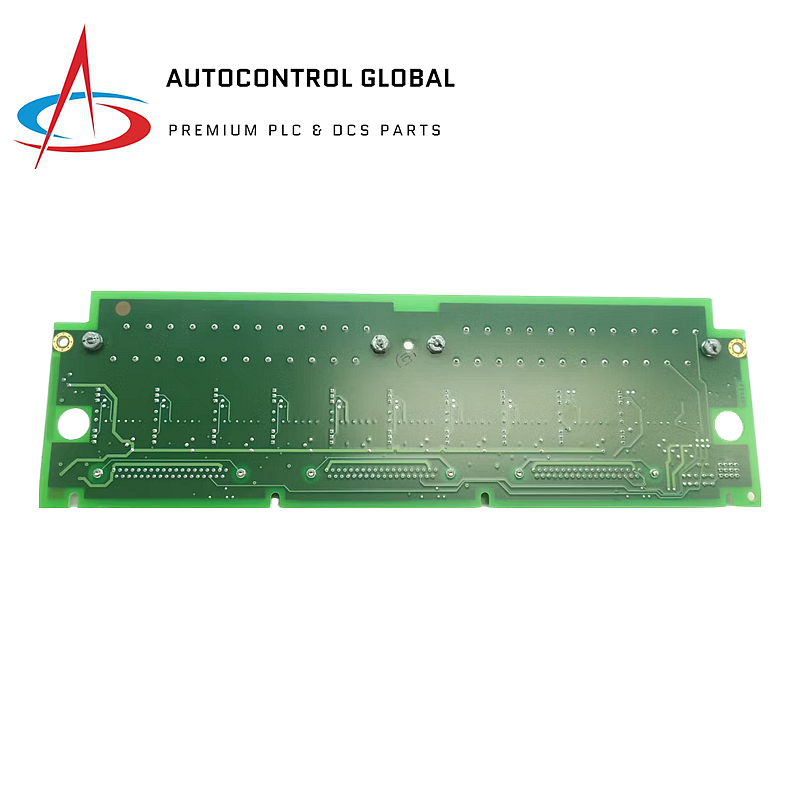

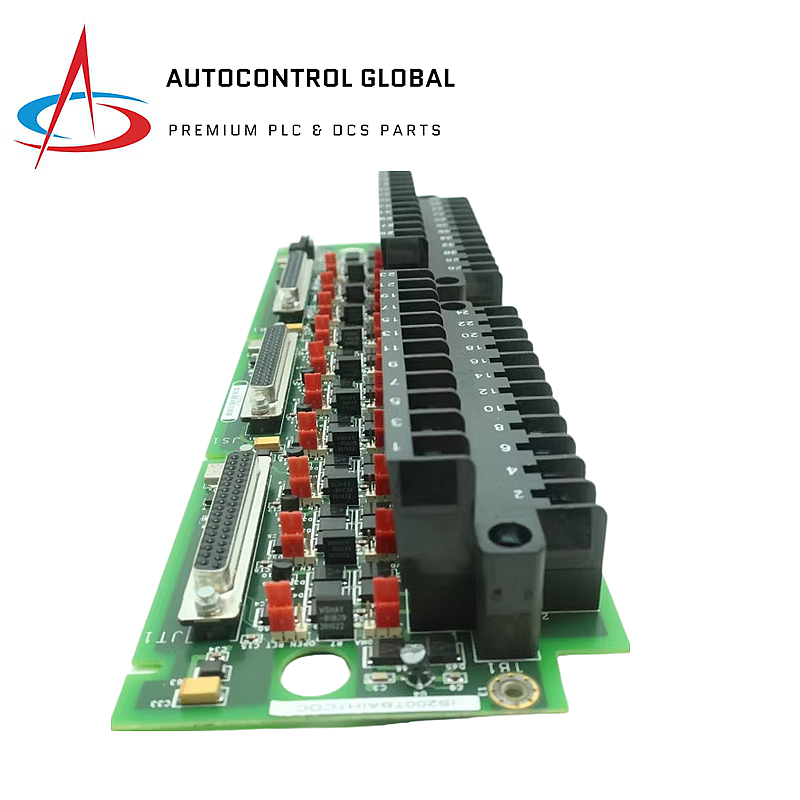

IS200TBAIH1CDC | GE Fanuc | Analog Input/Output Terminal Board

Overview

The IS200TBAIH1CDC is an Analog Input/Output Terminal Board developed by General Electric for the Mark VIe control system. It facilitates analog signal processing, supporting both inputs and outputs for efficient system integration.

Specifications

• Part Number: IS200TBAIH1CDC
• Series: Mark VIe
• Product Type: Analog Input/Output Terminal Board
• Number of Channels: 12
• Input Span (Transmitters): 1-5 V DC
• Temperature Range: -30 to 65°C
• Size: 10.16 cm x 33.02 cm

Features

• Analog Inputs: 10 inputs supporting various transmitter types (2-wire, 3-wire, 4-wire, externally powered).
• Analog Outputs: 2 outputs, with an optional 0-200 mA range (PAICH2).
• Noise Suppression: Circuitry for surge and high-frequency noise protection.
• Connector Configuration: 3 DC-37 pin connectors for interfacing with PAICs.
• TMR Compatibility: Inputs fanned out for R, S, and T controls; outputs combined for accurate control in redundant systems.

Configuration Options

• Input Channels: Jumpers to select current or voltage input, and to configure the return connection.
• Output 1 Range: Jumper to select between 20 mA or 200 mA output range.
