IS215UCVEH2AE | General Electric | Speedtronic Turbine Control PCB

Overview

The IS215UCVEH2AE is a Speedtronic Turbine Control PCB from General Electric, designed for the Mark VI Speedtronic control system. This board serves as a VME control card within the Mark VI system.

General Information

• Manufacturer: General Electric
• Model: IS215UCVEH2AE
• Product Type: Speedtronic Turbine Control PCB
• System: GE Mark VI Speedtronic Control System

Design and Features

• Form Factor: Rectangular board with an attached front faceplate
• Faceplate:
  • Includes a set screw at the top and bottom for secure installation
  • Ethernet port, two COM ports, and a LAN port
  • Mezzanine card opening

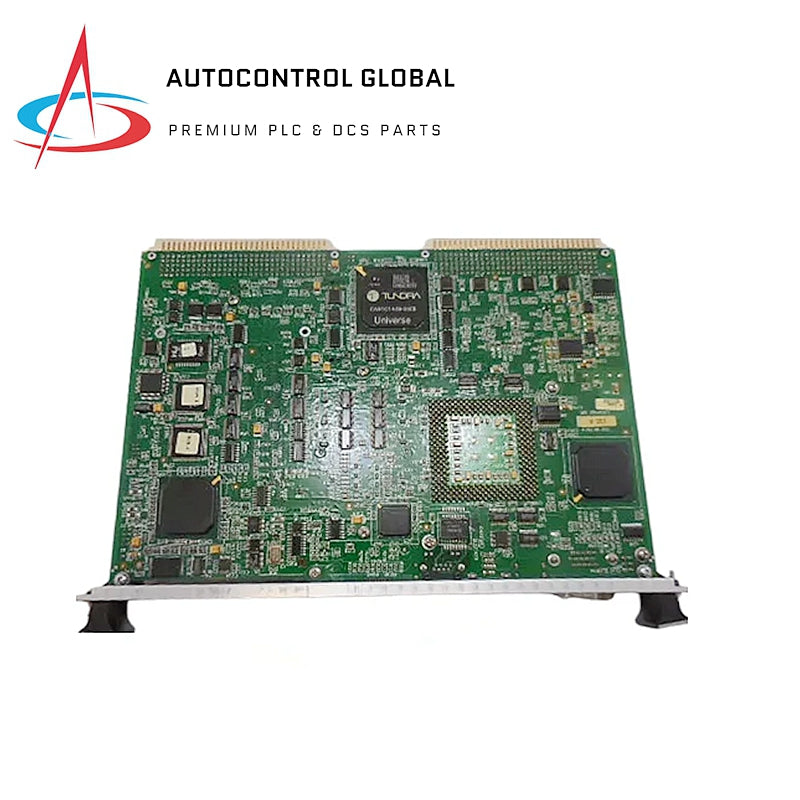

• Board Components:
  • Vertical pin connectors within the body
  • Right-angled pin connectors along the edge
  • Integrated circuits, resistors, capacitors, chokes, and more
• Additional Elements:
  • Small angled circuit board mounted at the center
  • Heatsink cover over half of the board

Compatibility

• Rack Type: VME card rack (13-slot or 21-slot)
