IS220PDOAH1B GE Fanuc | Discrete Output Pack

Overview

The IS220PDOAH1B is a Discrete Output Pack from General Electric, part of the Mark VIe control system. This component links Input/Output (I/O) Ethernet networks to discrete output terminal boards, enabling the control of up to 12 relays. It is designed for use in industrial automation systems, providing reliable connectivity and customizable relay options.

Features

• Relay Options: Choose between electromagnetic relays (compatible with TRLYH1B, C, D, and F terminal boards) and solid-state relays (for TRLYH1E boards).

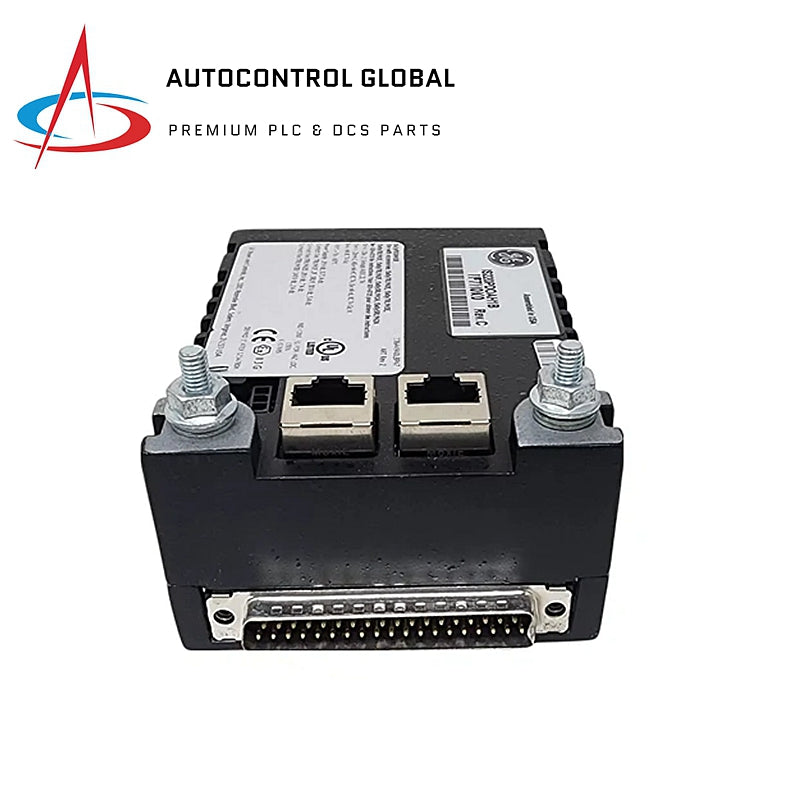

• Input Connectivity: Dual RJ45 Ethernet connectors for redundant and reliable data exchange.
• Power Supply: Three-pin input for stable and efficient operation.

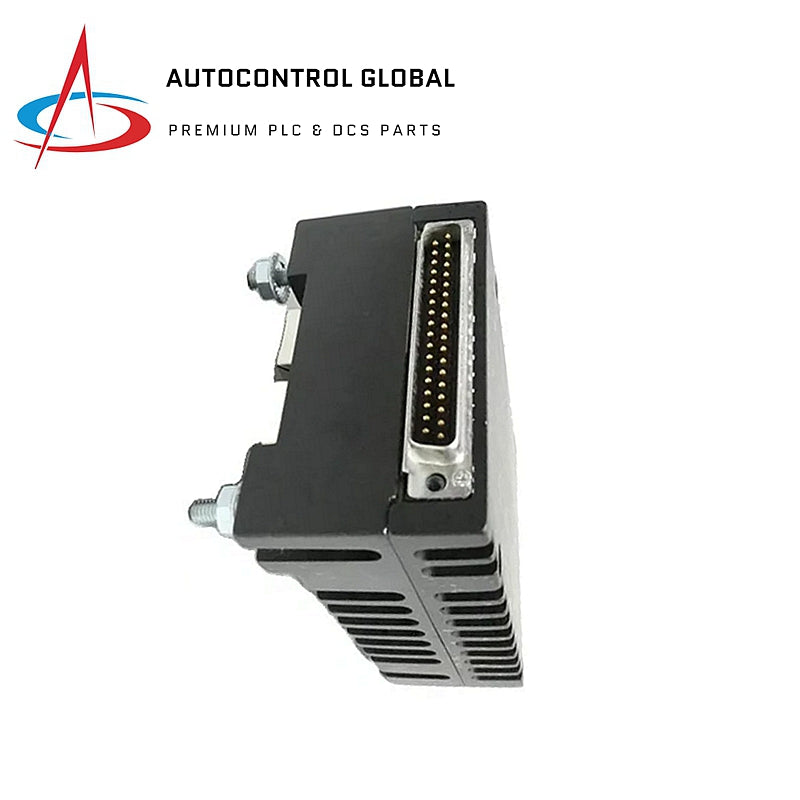

• Output Connection: DC-37 pin connector for seamless connection to terminal boards.

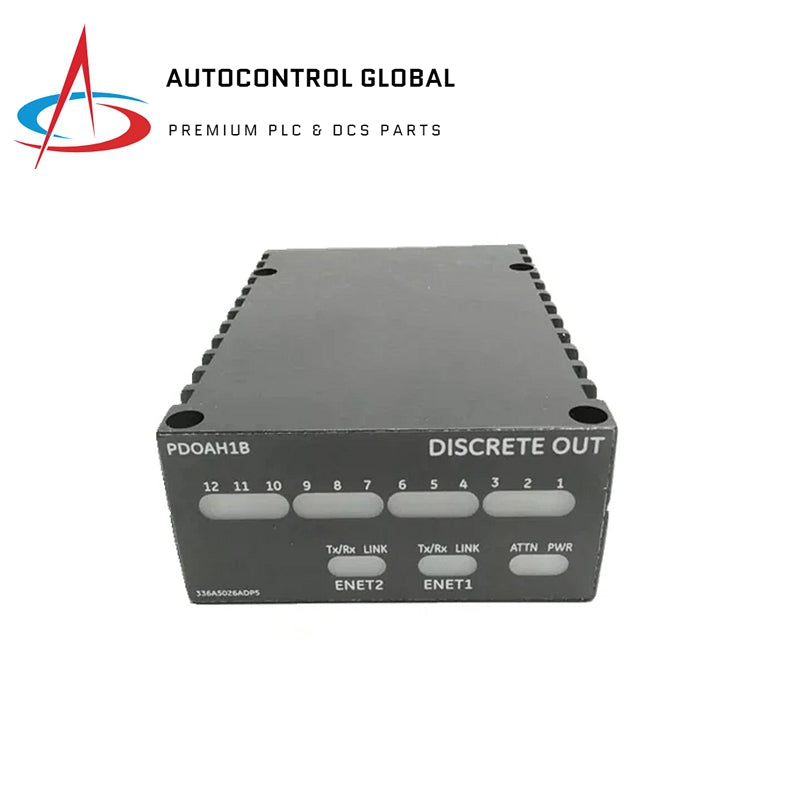

• LED Indicators: Visual diagnostics to monitor system status.
• Local Serial Communication: Infrared port for diagnostics and configuration.

Functional Description

The IS220PDOAH1B serves as a key component in GE's Mark VIe distributed I/O system. It connects Ethernet networks to discrete output terminal boards, managing the operation of up to 12 relays. The component includes a processor board common to all Mark VIe distributed I/O packs and an acquisition board designed specifically for discrete output functionalities. The pack features two Ethernet ports for network connectivity and is equipped with multiple diagnostic features for efficient system monitoring.

Installation

• Mounting: Securely mount the terminal board at the desired location. For a simplex configuration, connect one PDOA I/O pack to the terminal board; for a TMR setup, connect three PDOA I/O packs.
• Mechanical Stability: Use the threaded studs adjacent to the Ethernet ports to secure the packs into a mounting bracket. Ensure the bracket prevents right-angle force on the DC37 connector.
• Ethernet Connectivity: Connect one or two Ethernet cables to the pack, with ENET1 typically linked to the R controller network.
• Powering Up: Connect the power input connector to apply power, utilizing the I/O pack's soft-start capability for smooth current inrush management.
• Configuration: Customize the pack's settings according to the system’s requirements for optimal functionality.

Processor and Features

• High-Speed Processor: Equipped with sufficient RAM and flash memory for efficient processing and data storage.
• Dual Ethernet Ports: Two independent 10/100 Ethernet ports for fast and reliable network communication.
• Watchdog Timer: Built-in hardware watchdog timer and reset circuit to ensure system reliability.
• Ambient Temperature Sensor: Monitors local environmental conditions for effective temperature management.
• Infrared Port: Provides wireless serial communication for diagnostics and configuration.
• Status LEDs: Indicator LEDs for quick system status checks.
• Electronic ID: Supports board identification for easy system management.
• Programmable Logic: Extensive programmable logic support for the acquisition board, enabling customized functionality.
• Soft Start Power Connector: Features soft start and current limiting for safe power delivery.
• Power Supply Monitoring: Local power supplies with sequencing and monitoring for enhanced system stability.

Technical Specifications

• Part Number: IS220PDOAH1B
• Manufacturer: General Electric
• Series: Mark VIe
• Product Type: Discrete Output Pack
• Size:
  • Height: 8.26 cm
  • Width: 4.19 cm
  • Depth: 12.1 cm
• Relay Channels: 12
• Relay and Coil Monitoring: 15 pack inputs
• Technology: Surface-mount
• Input Power: Three-pin connector with soft start and current limiter
• Ethernet Ports: Dual 10/100 Ethernet connectors
• Status Indicators: LED indicators for visual diagnostics
• Local Power: Monitoring and sequencing capabilities for power supplies
