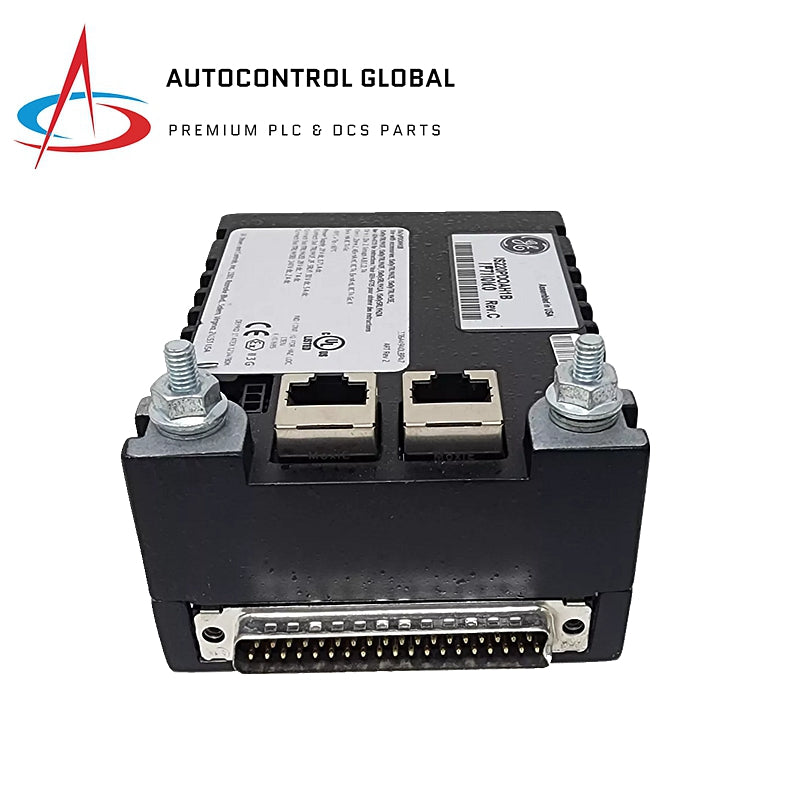

IS220PDOAH1BC | General Electric | Mark Vie Digital I/O Pack Module

Overview

The IS220PDOAH1BC is a Digital Input/Output (I/O) Pack Module designed for the General Electric Mark VIe Speedtronic system. It interfaces between the Mark VIe system and various field devices, such as sensors, switches, and actuators, ensuring efficient and reliable data transmission.

Technical Specifications

Electrical Specifications

• Input Voltage: 24V DC
• Output Voltage: 0-10V DC
• Current Rating: 5A max per channel
• Isolation: 1500V DC isolation between channels

Performance Metrics

• Response Time: <2 ms for digital inputs
• Data Transfer Rate: 1 Gbps

Environmental Conditions

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing

Dimensions and Weight

• Length: 12.5 cm (4.92 inches)
• Width: 10 cm (3.94 inches)
• Height: 3 cm (1.18 inches)
• Weight: 0.5 kg (1.1 lbs)
