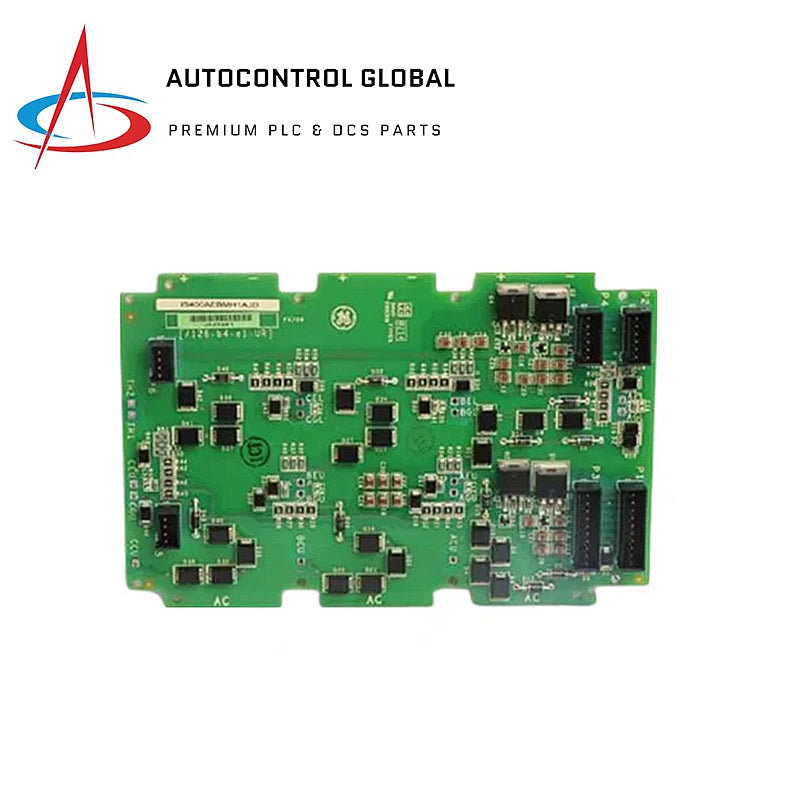

IS400TCASH1AFD | GE Fanuc | I/O Module

Overview

The GE Fanuc IS400TCASH1AFD is an advanced I/O Module designed for use in versatile industrial automation systems. It offers high performance and reliability, making it an excellent choice for various control, monitoring, and data acquisition applications in demanding environments.

Features

• High-performance Signal Processing: Offers both digital and analog input and output channels
• Versatile Communication Protocols: Supports Modbus TCP/IP, DNP3, and IEC 61850
• Industrial-grade Durability: Suitable for harsh industrial conditions

Technical Specifications

Electrical Characteristics

• Rated Voltage: 24 VDC
• Current Capacity: Up to 2A per channel
• Control Voltage: 24 VDC
• Frequency Range: 47-63 Hz

Signal Processing

• Number of Channels:
  • Input Channels: 16
  • Output Channels: 8
• Input Signal Types: Digital, Analog
• Output Signal Types: Relay Contacts
• Communication Protocols:
  • Modbus TCP/IP
  • DNP3
  • IEC 61850

Performance Metrics

• Measurement Accuracy: 0.5% full-scale
• Response Time: < 1 ms for relay activation
• Switching Time: < 5 ms
• Electromagnetic Immunity: Compliant with IEC 61000-4-2, 3, 4, 6

Environmental Conditions

• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -50°C to +90°C
• Humidity Range: 0% to 95% RH, non-condensing
• Ingress Protection: IP54

Mechanical Characteristics

• Mounting Type: DIN rail or panel mount
• Material: Industrial-grade metal enclosure
• Vibration Resistance: 5 g rms, 5 Hz to 150 Hz

Dimensions and Weight

• Length: 100 mm (3.9 inches)
• Width: 50 mm (1.9 inches)
• Height: 25 mm (0.9 inches)
• Weight: 0.3 kg (0.66 lbs)
