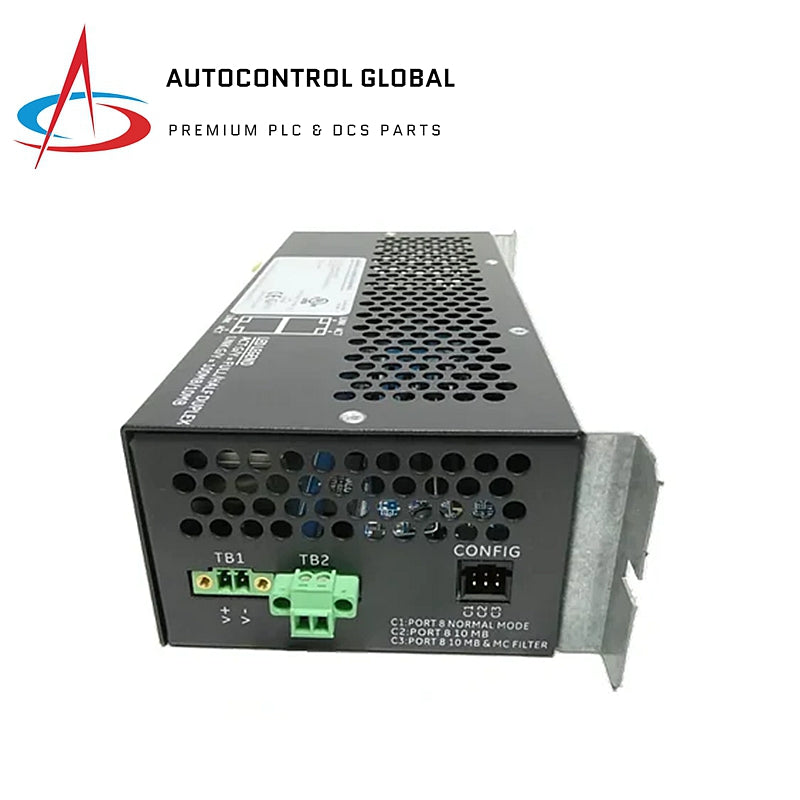

IS420ESWBH3A | General Electric | IONET Switch Board

Overview

The IS420ESWBH3A is an Industrial Ethernet Switch designed for General Electric's Mark VIe Turbine Control System Series. It plays a crucial role in supporting Ethernet communication within the system, with specific applications for wind, steam, and gas turbines.

Key Specifications

• Manufacturer: GE Energy
• Weight: 2 lbs
• Input Voltage: 24/28 VDC
• Dimensions:
  • Height: 18.8 cm
  • Width: 8.6 cm
  • Depth: 5.6 cm

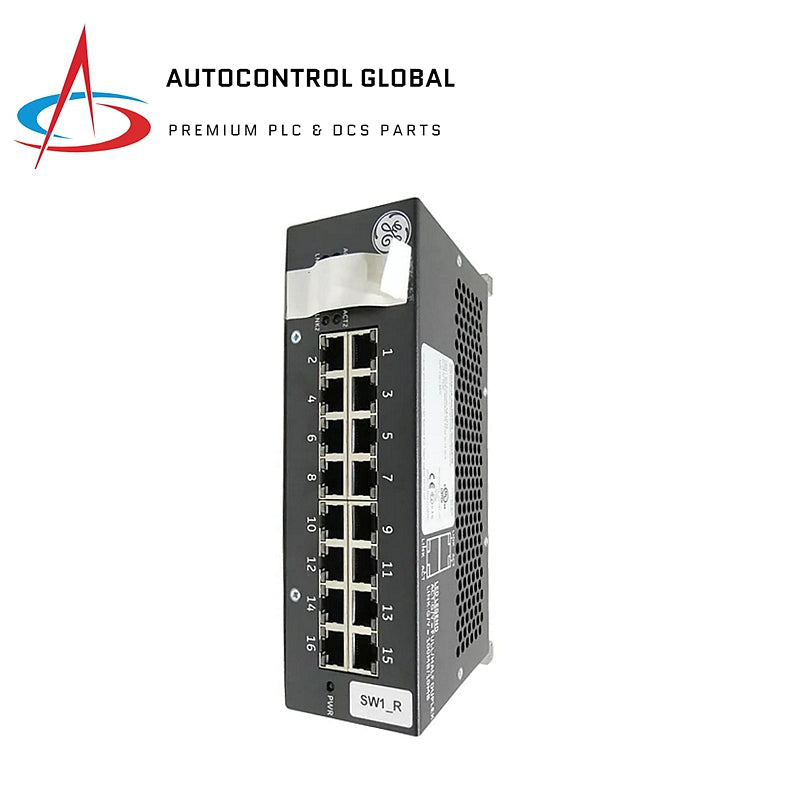

• Copper Ports: 16 x 10/100Base-TX RJ45
• Fiber Ports: None
• Mounting: DIN-Rail or Panel Mount
• Cooling Method: Convection Cooled
• Operating Temperature: -40°C to 70°C

Switch Features

• Ports: 16 x Copper 10/100Base-TX RJ45
• Function: Level 1 Ethernet switch for multicast and broadcast packet buffering
• Buffering: One packet per port; multiple streams buffered for later transmission

LED Indicators

• Power LED: Indicates power status
• Link LED:
  • Solid Yellow: 10 MB link
  • Solid Green: 100 MB link
  • No Light: No link
• Activity LED:
  • Flashing Green: Full duplex activity
  • Flashing Yellow: Half duplex activity

Mounting Options

• DIN-Rail Mounting: Can be mounted in parallel or perpendicular orientation
• Panel Mounting: Optional panel mounting available
