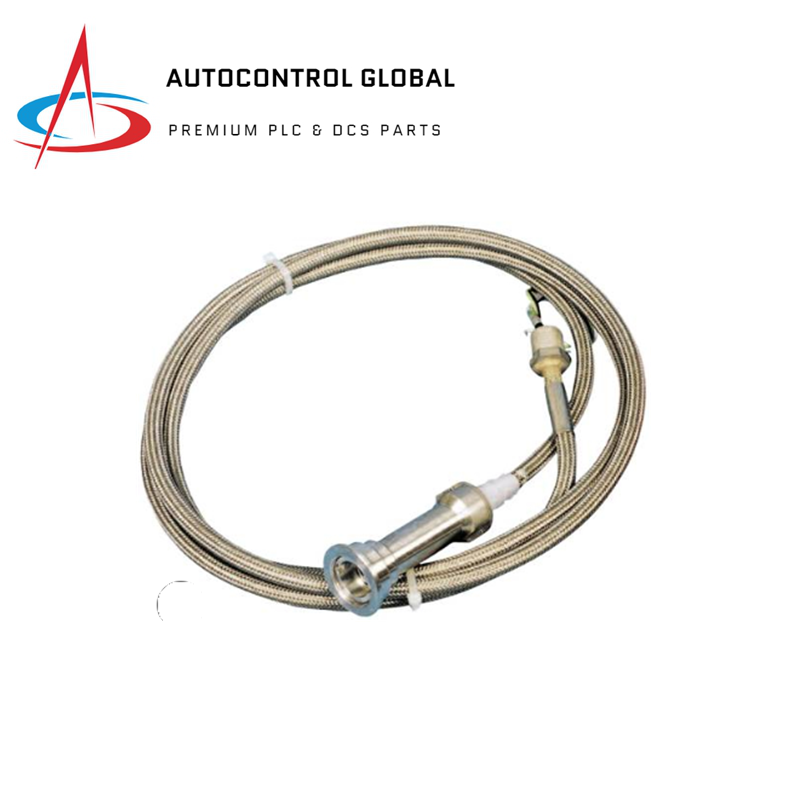

LG1093AC01 | Honeywell | LG1093 Flame Detector

Key Details

• Manufacturer: Honeywell
• Product No.: LG1093AC01
• Product Type: LG Flame Detector
• Application: Gas turbine flame monitoring systems for power generation and compressors

Specifications

• Sensor Type: Geiger Mueller-type sensor phototube
• UV Detection Range: 180-260 nm
• Temperature Range: -40°C to 176°C
• Shelf-life: 2 years
• MTBF: 10,000 hours
• Operating Hours: Over one billion (10^9) hours

Hardware Outputs

• EG1033AA: Transistor open collector
• EG1033AB and EG1033AC: Relay contacts (SPDT)

Features

• High Sensitivity: Fast Flame Present Response Time (0.1 sec typical)
• Flame Loss Response Time: 0.2 sec max.
• Voltage Requirements for Amplifiers:
  • 28 VDC
  • 20-35 VDC
  • 115 VAC
• Operating Distance: Up to 330 meters (1000 feet) from sensor to amplifier
• Qualified for: General Electric turbines
• Compliance:
  • CE mark for EMC 89/336/EEC, LVD 73/23/EEC
  • ATEX Explosive Atmosphere 94/9/EC (EEx d IIA T3 or EEX d IIC T3, Zone 1 and 2)
  • Factory Mutual approval for explosive atmospheres (Class I, Div 1 and 2, Groups B, C, and D)

Additional Information

• Flame Sensor Dimensions: 1.73" O.D. by 0.14" wide flange
• Cable: 2-conductor armoured cable, 9 feet (2.7 meters) in length
• Viewing Window Rating: 428 mbar (6.3 psi)
• Weight: 0.91 kg
• Shipping Weight: 3 kg
