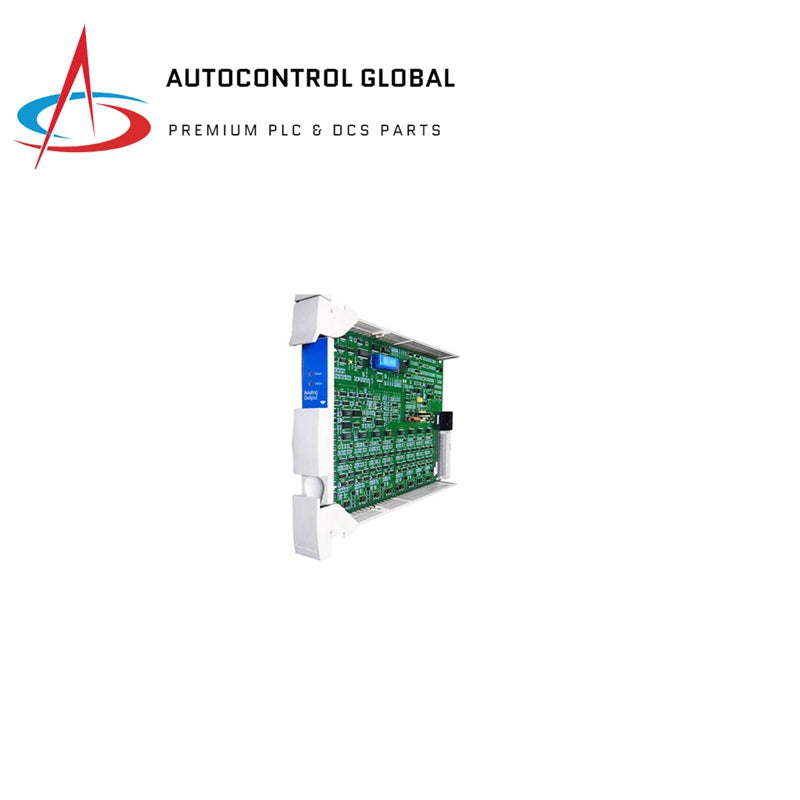

MC-PAOX03 51309152-175 | Honeywell | Analog Output

Product Details

• Manufacturer: Honeywell
• Product No.: 51309152-175

• Product Type: MC-PAOX03 Analog Output (AO)

Part Numbers

• Non CE Compliant Part Number: 51304672-150
• CE Compliant Part Number: 51309152-175

Description

• Description: Analog Output (AO)
• IOPs: Conformally Coated
• Analog Output: 8-Point Processor/FTA

Specifications

• Function IOP Models: AO (8 points MC-PAOX03)

• IOP Configuration: AO

• Number of Channels: 8

• Smallest ORU(1): IOP

• Redundancy(2): Yes

• Redundancy Method: Outputs Electrically Isolated via Field Replaceable Relay Switch, Module on FTA

• Redundancy Bias(3): Yes

• Output Ripple: 100 mV peak-to-peak at power line frequency, across 250 Ω load

• Resolution: ± 0.05%

• Calibrated Accuracy: ± 0.35% (25°C) including linearity

• Humidity: 10 - 90% non-condensing

• Directly Accessible Output Current Range: 0.1-21.4 mA

• Maximum Current Output: 26 mA

• Maximum Resistive Load: 750 Ω @ 22 mA

• Surge Withstand Capability: ANSI/IEEE C37.90.1-1978

• Conformally Coated Assemblies: Completely covered with a thin layer of a special plastic material that is resistant to the corrosive effects of humidity and most chemical gases

• Shipping Weight: 2 kg

Environmental Limits

• • Operating Temperature: -30°C to +65°C (-22°F to +150°F)
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 10 - 90% non-condensing
