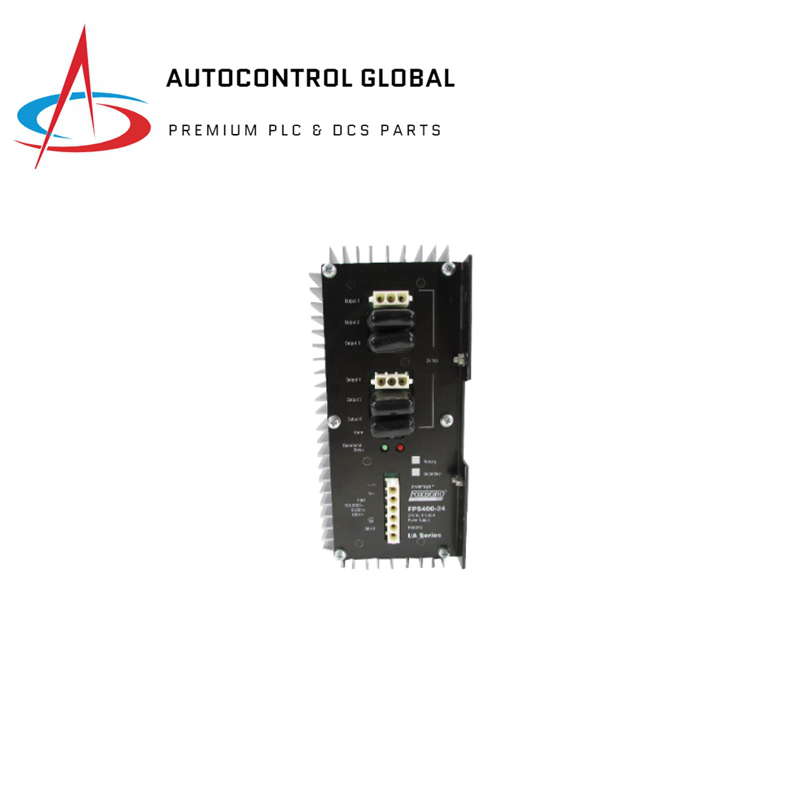

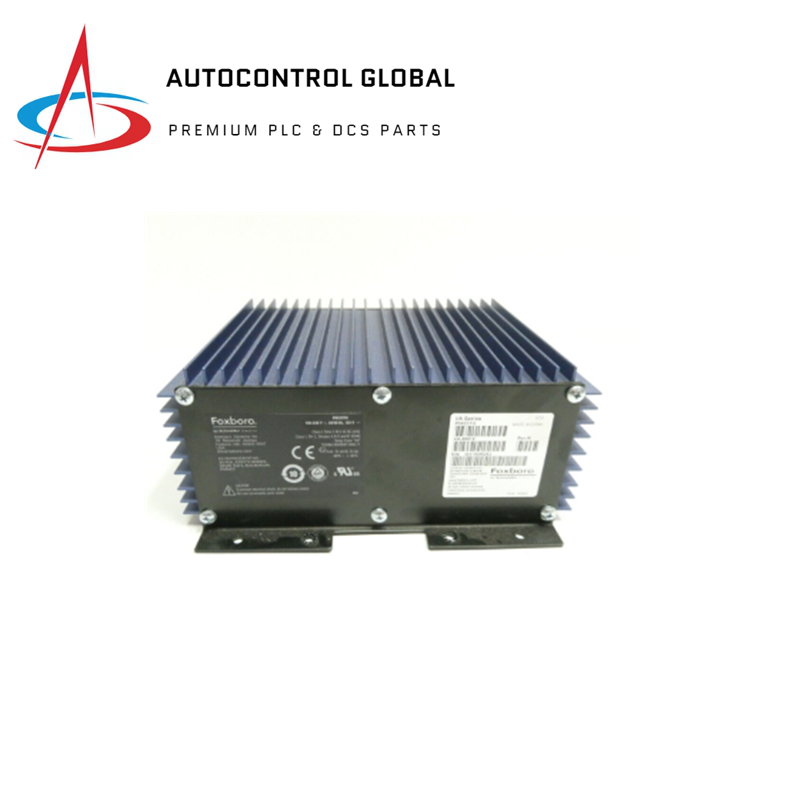

P0922YU | Foxboro | Power Supply

Description

• Manufacturer: Foxboro (by Schneider Electric)

• Product No.: P0922YU

• Model: Power Supply

Key Features and Specifications

• Input Voltage Range: 85 to 265 V AC or 108 to 145 V DC, with a nominal 125 V DC.
• Input Frequency Range: 47 to 63 Hz.
• Input Current:
  • 5.6 A at 85 V AC input (RMS maximum).
  • 2.5 A at 230 V AC input (RMS maximum).
• Output Voltage: 24.0 V DC, ±0.2 V DC nominal factory setting.
• Voltage Line Regulation: 2.0% of Vout.
• Over Current Protection: Current limiting to 110% of maximum at the rated 25°C load.
• Leakage Current: AC line to chassis ground is less than 1.6 mA when operated at 250 V AC (47 to 63 Hz) or lower voltages.
• Vibration Resistance: 0.75 g (5 to 500 Hz).
• Operating Temperature: –30 to 71°C (–58 to +160°F).
• Operating Relative Humidity: 5 to 95% (non-condensing).
• Operating Altitude: –300 to +3,000 m (–1,000 to +10,000 ft).
• Dimensions (HxWxD): Approximately 17.8 cm x 10.7 cm x 21.5 cm.
• Shipping Weight: 6 kg.
