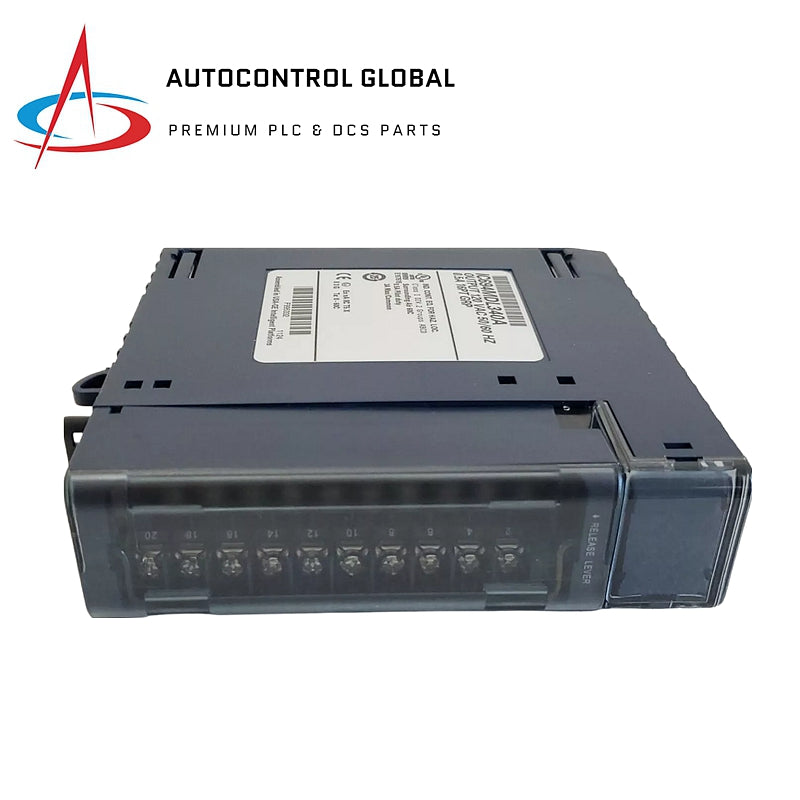

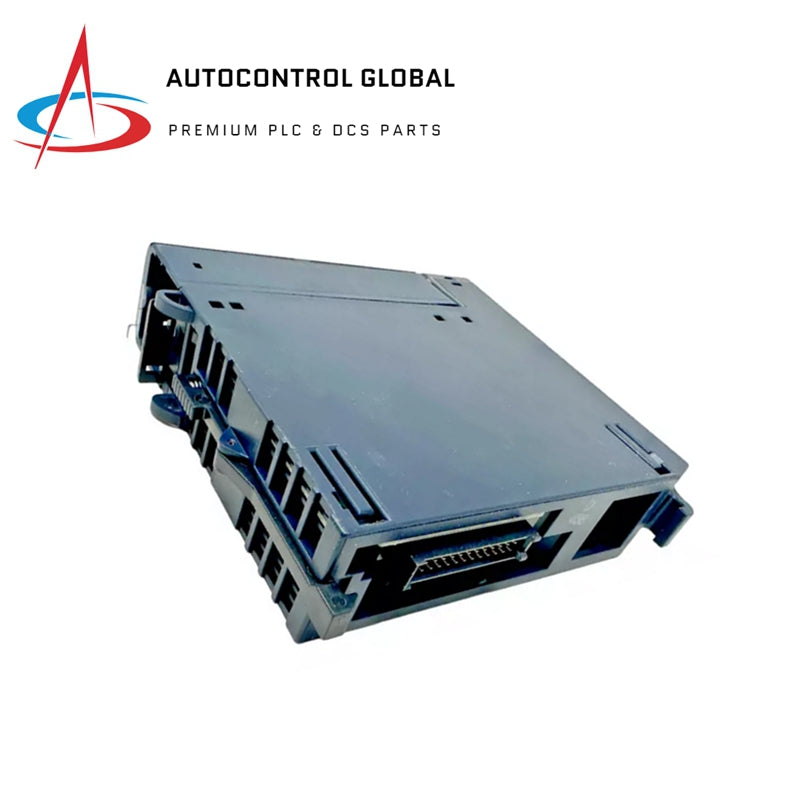

PACsystem RX3i | IC694MDL340 | GE Fanuc Discrete Output Module

Overview

The IC694MDL340 is a discrete output module for the PACsystem RX3i, with 16 channels (2 groups of 8). It provides reliable 120 VAC output with high inrush current handling.

Features

• Voltage Range: 85-132 VAC
• Current per Channel: 0.5 A
• Output Groups: 2, each with 8 channels
• Inrush Current: 20 A for 1 cycle
• Frequency: 50/60 Hz
• Isolation: 250 VAC continuous, 1500 VAC for 1 minute

Application Areas

• Used to control AC-driven devices like motors and relays
• Applicable in automation systems for industrial processes
• Ideal for managing high-power loads in manufacturing settings

Specifications

• Operating Temperature: 0 to 60°C
• Storage Temperature: -40 to 85°C
• Humidity: 5% to 95% (non-condensing)
• Response Time: On 1 ms, Off ½ cycle
• Leakage Current: 2 mA max

Product Status

• Lifecycle: Active
