PACSystem RX3i IC695CPE305 | GE Fanuc Controller Module

Overview

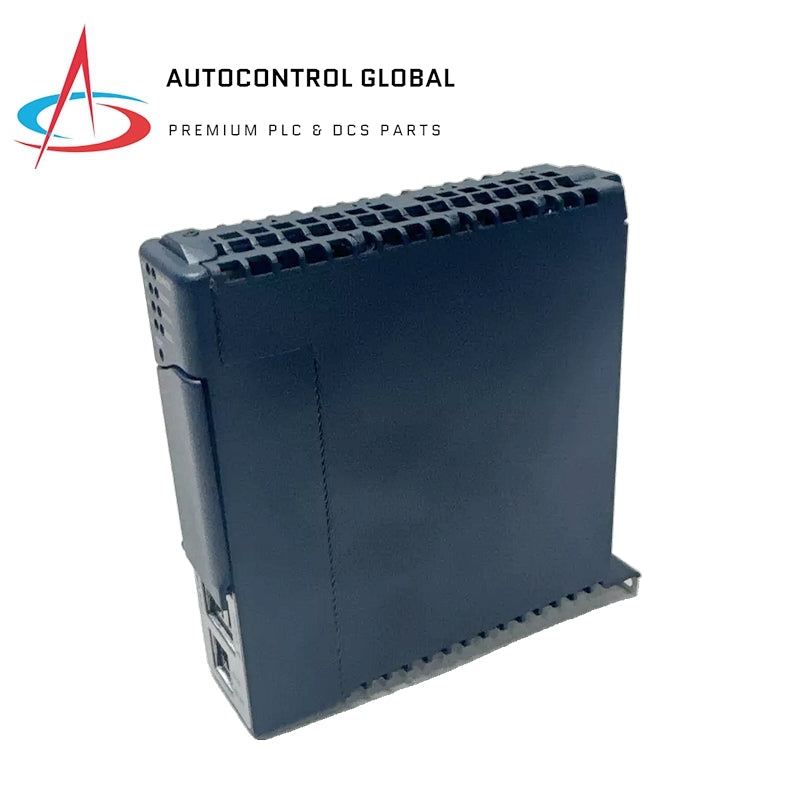

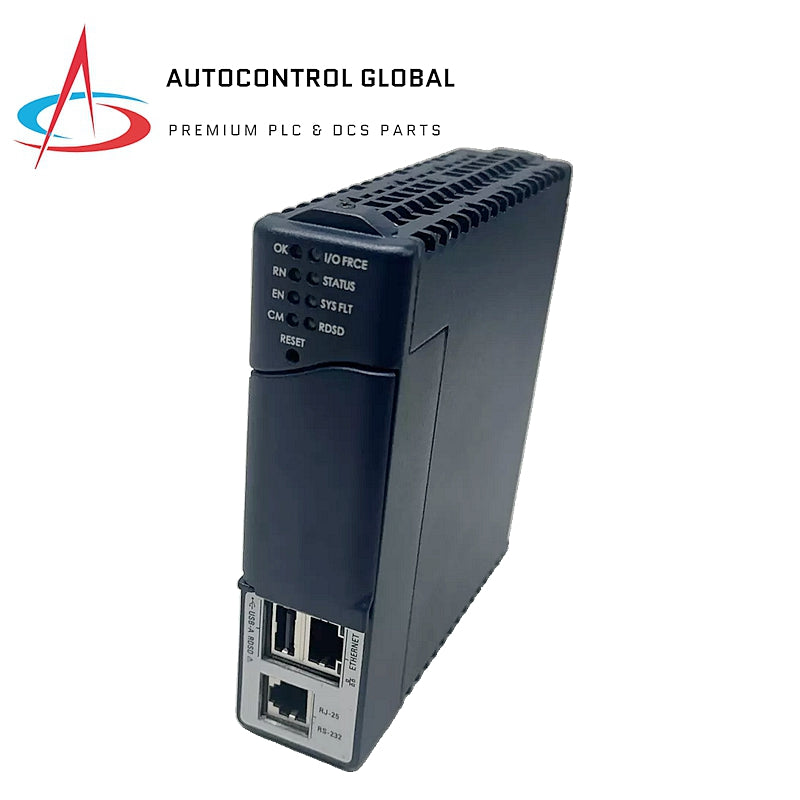

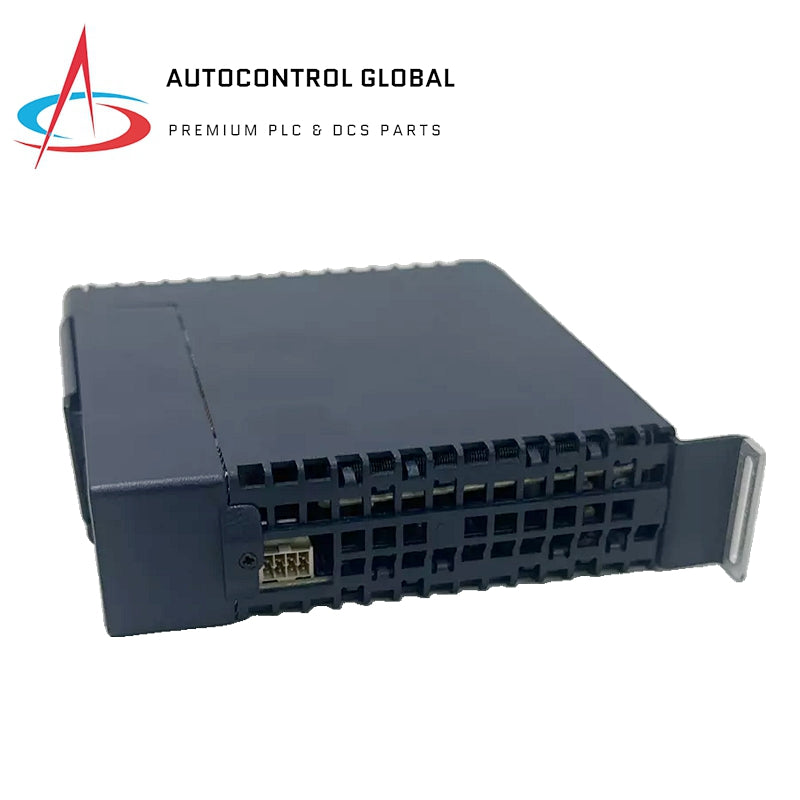

The IC695CPE305 is a PACSystem RX3i CPU module from GE Fanuc. It offers a high-speed 1.1 GHz processor with 5MB RAM and 5MB non-volatile memory, making it ideal for demanding automation tasks.

Specifications

• Processor Speed: 1.1 GHz
• RAM: 5MB
• Non-volatile Memory: 10MB
• Switchover Time: 1 logic scan (min. 3.133 ms)
• Ethernet Port: 10/100 Mbps
• Serial Ports: 2 (RS232, RS485)
• USB 2.0 Master Port: Yes
• Maximum Program Blocks: 512
• Maximum Block Size: 128KB
• Operating Temperature: 0 to 60°C
• Power Requirements:
  • 1 Amp at +5V, +3.3V DC
  • 0.5 Amps at +24V DC
• Floating Point Support: Yes
• Protocols Supported: Modbus RTU Slave, SNP, Serial I/O
• Backplane: Universal backplane
• Number of Slots: 1
• Number of Local Racks: 8

Communication Capabilities

• Ethernet: Supports PROFINET, Modbus TCP, and OPC UA
• Serial Ports: RS-232, RS-485
• USB Port: For program download/upload from thumb drives
• Protocols: Ethernet, Genius, DeviceNet, PROFIBUS DP

Additional Features

• Network Protocols: Ethernet Global Data, Modbus TCP, and more
• Compatibility: PCI 2.2 standard, RX3i Series PCI devices
• Expandability: Supports additional communication cards for Serial, Genius, CMX, and Ethernet
