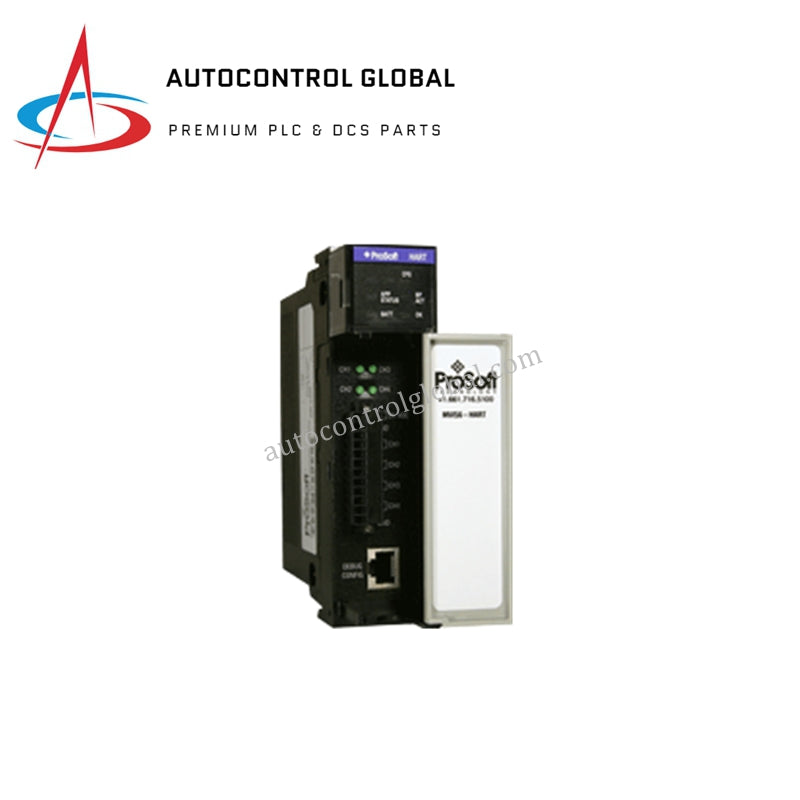

Prosoft MVI56-HART Communication Module In Stock

Product Overview

The MVI56-HART Master Multi-drop Network Interface Module is a versatile communication module designed to enable seamless integration between Rockwell Automation ControlLogix I/O compatible processors and HART (Highway Addressable Remote Transducer) slave devices. This module facilitates reliable communication in industrial environments, making it an ideal solution for applications requiring efficient data acquisition, control, and maintenance.

Key Specifications

• Module Type: MVI56-HART Master Communication Module
• Processor Compatibility: Rockwell Automation ControlLogix I/O compatible processors
• Number of HART Channels: 4
• Devices Supported per Channel: Up to 15 HART slave devices
• Maximum Registers: 5000 registers for data exchange
• Data Exchange Method: Internal database within the module and direct control via ladder logic or pre-defined data objects
• Port Configuration: Each port is individually configurable
• Applications: Chemical and refining operations, gas and liquid distribution systems, remote offshore monitoring stations

Features and Benefits

1. Multi-Drop Communication

• Supports up to 15 HART slave devices on each channel, allowing efficient use of resources and minimizing wiring complexity.
• The module’s four channels enable independent communication with multiple networks of HART devices.

2. Master Protocol Support

• Implements master protocol commands to interface with HART slave devices, ensuring robust and reliable communication.
• Allows full control over HART devices, including configuration, diagnostics, and real-time data acquisition.

3. Flexible Data Exchange

• Data is exchanged between the HART network and the ControlLogix processor using:
  • An internal database within the module.
  • Direct control via the processor’s ladder logic and pre-defined data objects.
• Supports up to 5000 registers, providing ample capacity for extensive data handling.

4. Individually Configurable Ports

• Each of the four ports can be configured independently, offering flexibility to adapt to specific application requirements and network setups.

5. Wide Industrial Application

• Ideal for industries such as:
  • Chemical and refining operations
  • Gas and liquid distribution systems
  • Remote offshore monitoring stations
• Addresses various aspects of control, data acquisition, and maintenance, making it a comprehensive solution for industrial automation.

6. Enhanced System Integration

• Seamlessly integrates into Rockwell Automation’s ControlLogix platform, leveraging its powerful processing capabilities.
• Simplifies the implementation of HART communication in existing or new systems.

7. Reliability and Efficiency

• Optimizes communication and control in industrial environments, reducing downtime and improving operational efficiency.
• Facilitates predictive maintenance by enabling access to diagnostic information from HART devices.
