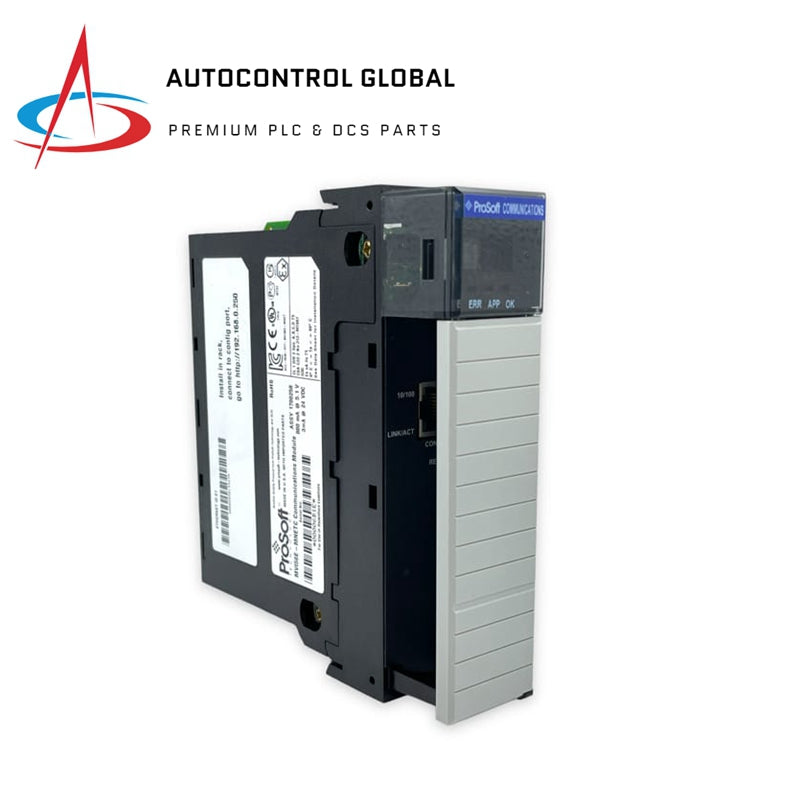

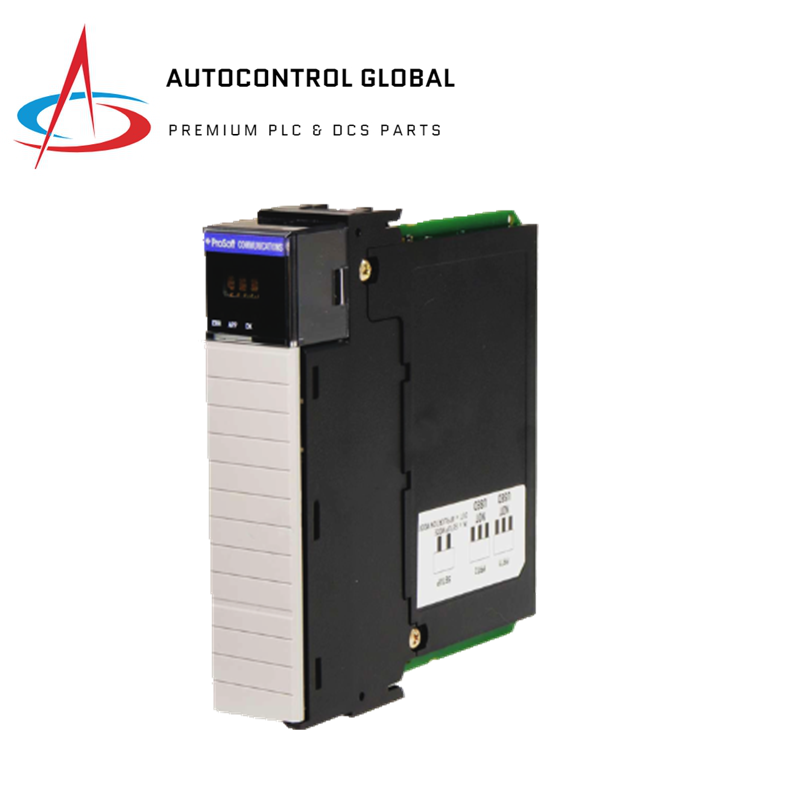

ProSoft MVI56E-MNETC Modbus TCP/IP Enhanced Communication Module
Manufacturer: Prosoft
-
Part Number: MVI56E-MNETC
Condition：New with Original Package
Product Type: Enhanced Communication Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The MVI56E-MNETC module provides a powerful connection between Rockwell Automation® ControlLogix processors and Modbus TCP/IP network applications. Acting as an input/output module, it facilitates communication between the Modbus TCP/IP network and the ControlLogix backplane. The data transfer from the processor is asynchronous from the actions on the Modbus TCP/IP network. The MVI56E-MNETC and MVI56E-MNETCXT are functionally the same, with the MVI56E-MNETC designed for standard process applications.
Features
- Supports up to 30 Clients and 20 Servers.
- Integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder file.
- Enable/Disable commands easily from ladder logic.
- Remote configuration and diagnostics.
- Backward compatible with MVI56.
- User-definable module data memory mapping of up to 10,000 16-bit registers.
- Single-slot 1756 ControlLogix backplane compatible.
- 10/100 Mbps auto crossover detection Ethernet configuration and application port.
Specifications
- Protocol / Network: 10Base-T Ethernet; Fast Ethernet; Serial; Modbus TCP/IP.
- Host Bus: Allen Bradley - ControlLogix.
- Number of Ports: 2.
- Port Type: RJ-45; RS232.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Operating Humidity: 5% to 95%.
