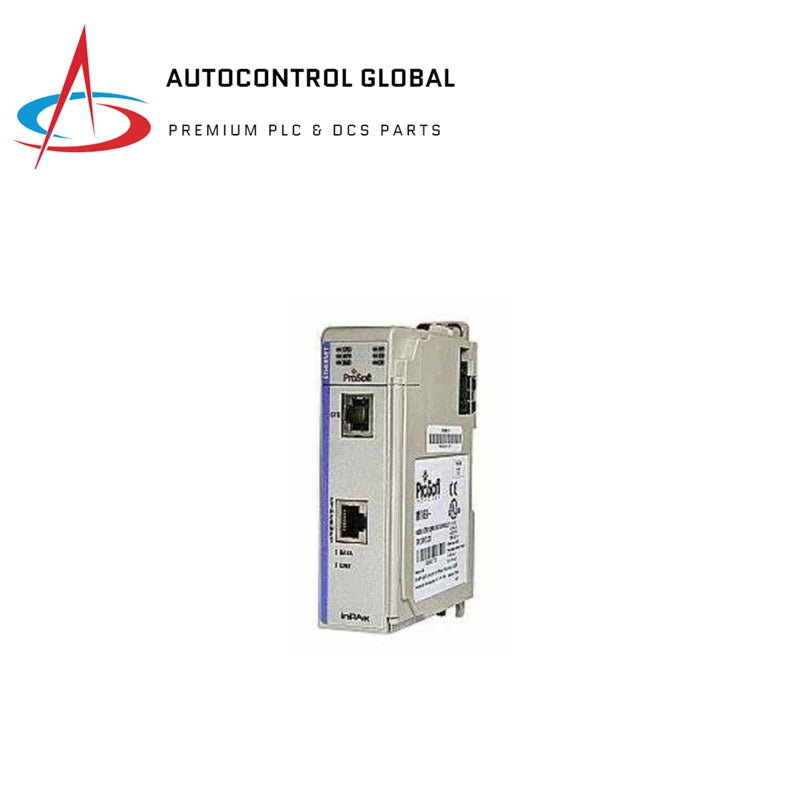

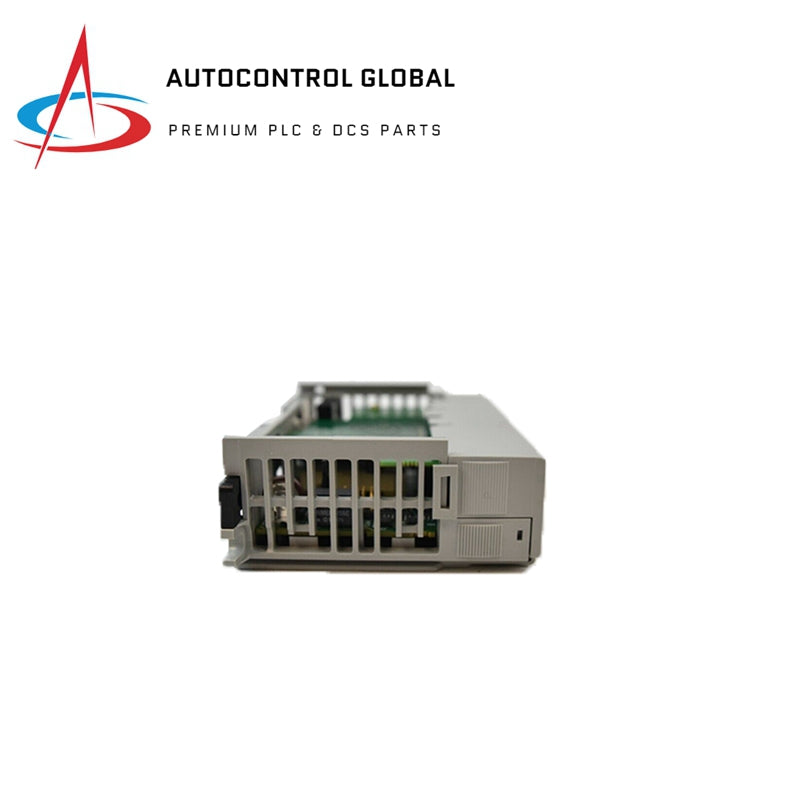

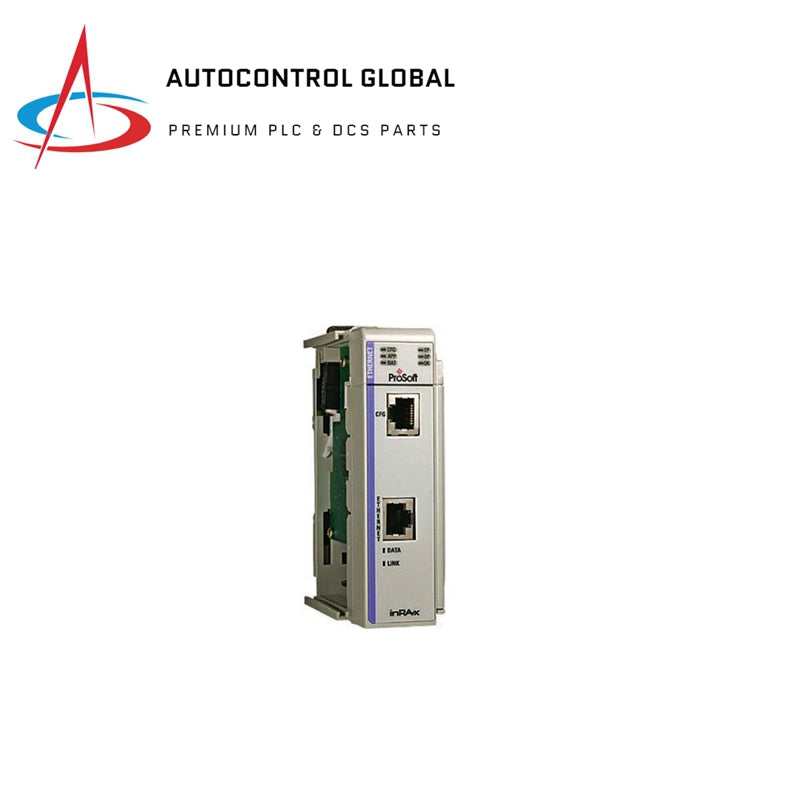

ProSoft MVI69-MNET Communication Module

Description

The MVI69-MNET module is a single-slot solution that provides a powerful connection between Rockwell Automation® CompactLogix processors and Modbus TCP/IP network applications. The module acts as an input/output module between the Modbus TCP/IP network and the CompactLogix backplane. The data transfer from the processor is asynchronous from the actions on the Modbus TCP/IP network.

Features

• Support for the storage and transfer of up to 5000 registers to/from the PLC processor using the block transfer interface.
• User-definable module memory usage.
• 10/100 Base-T Ethernet-compatible interface.
• Data mapping begins at Modbus register 40001.
• Configurable parameters for the Client, including a minimum response delay of 0 to 65535 milliseconds.
• Floating-point support for Enron, Daniels®, and other floating-point data types.
• Single-Slot, 1769 backplane-compatible.
• Supports all CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x.

Specifications

• Dimensions: Standard 1769 single-slot module.
• Current Load: 800 mA max @ 5 VDC.
• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Relative Humidity: 5% to 95% (with no condensation).
• LED Indicators.
