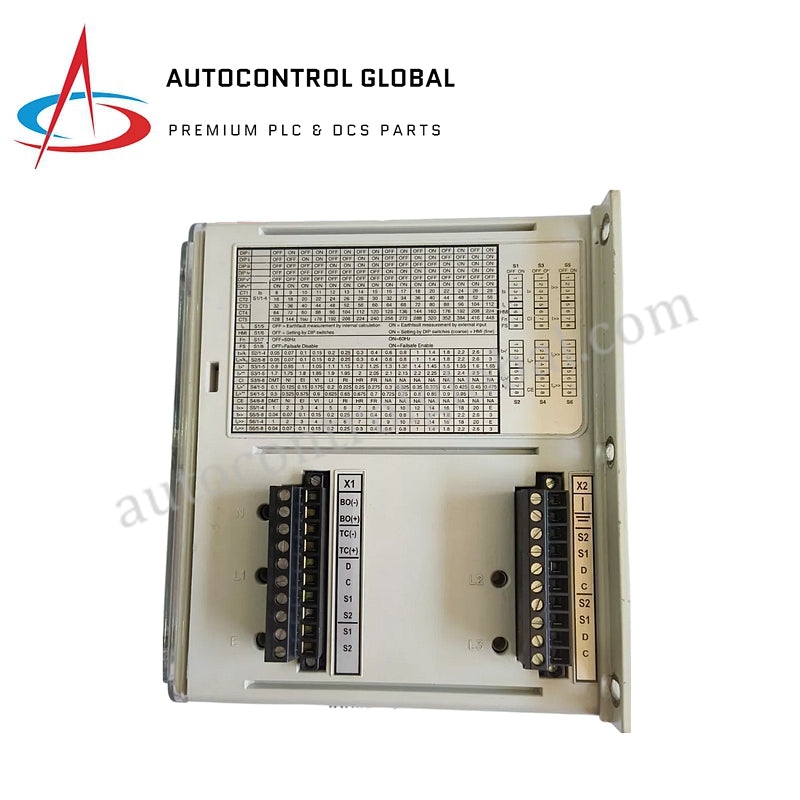

REJ603BBB10NN3XC | ABB | Self-Powered Feeder Protection

Overview

The REJ603BBB10NN3XC Self-Powered Feeder Protection is designed for high-efficiency protection without an HMI, offering reliable binary input and output features in power systems.

Specifications

• Model Number: REJ603BBB10NN3XC
• Type: Self-Powered Feeder Protection
• Dimensions:
  • Width: 96 mm
  • Height: 160 mm
  • Depth: 149 mm
• Binary Inputs:
  • Rated Voltage: 24 - 240 V AC/DC
  • Operating Range:
    • AC: -15% to +10%
    • DC: -30% to +20%
  • Current Drain: 2 to 15 mA
  • Power Consumption: < 0.8 W
  • Threshold Voltage: 13 V AC / 17 V DC
• Impulse Voltage Trip Output:
  • Rated Output Voltage: 12 V
  • Pulse Time: 30 ms
  • Energy: 50 mJ
