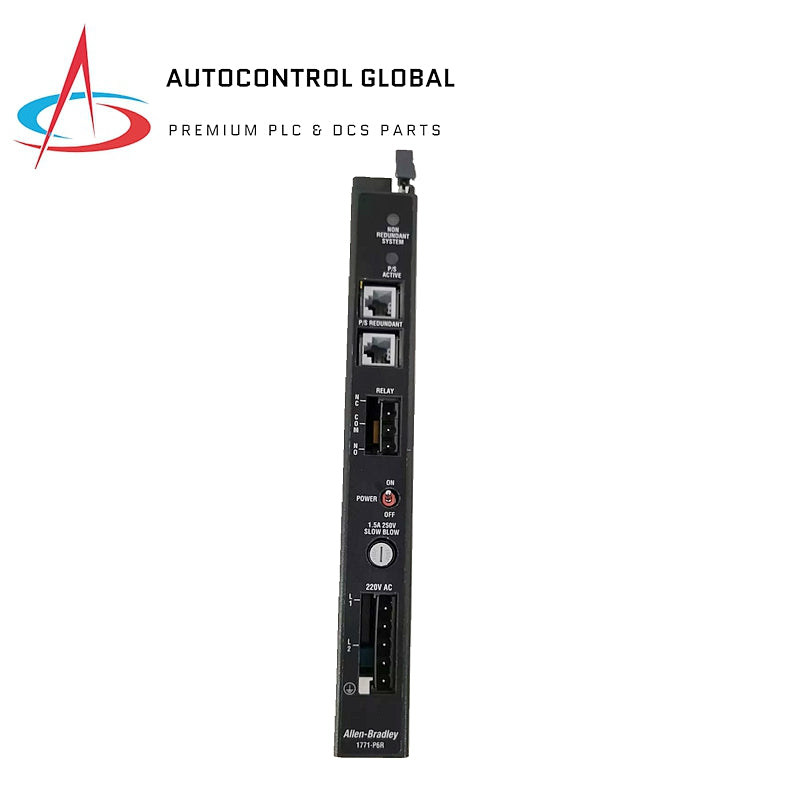

Rockwell Allen-Bradley | 1771-P6R C | Power Supply

Description

• Manufacturer: Rockwell Automation
• Part Number: 1771-P6R C
• Product Type: Redundant Power Supply
• Brand: Allen-Bradley
• Series: PLC 5

Specifications

• Nominal Input Voltage: 220 V AC
• Input Voltage Range: 194-264 V AC
• Maximum Real Input Power: 59 W
• Maximum Apparent Input Power: 92 VA
• Maximum Transformer Load: 148 VA
• Backplane Output Current: 8 A (at 5 V DC)
• Frequency: 47-63 Hz
• Fuse: 1.5 A, 250 V, slow-blow
• Cabling: Redundancy Cable (included)
• Location: 1771 Chassis, 1 Slot
• Dimensions: 1 Chassis Slot

Configuration

• Jumpers: Two back panel jumpers for configuration (remote/local sensing)

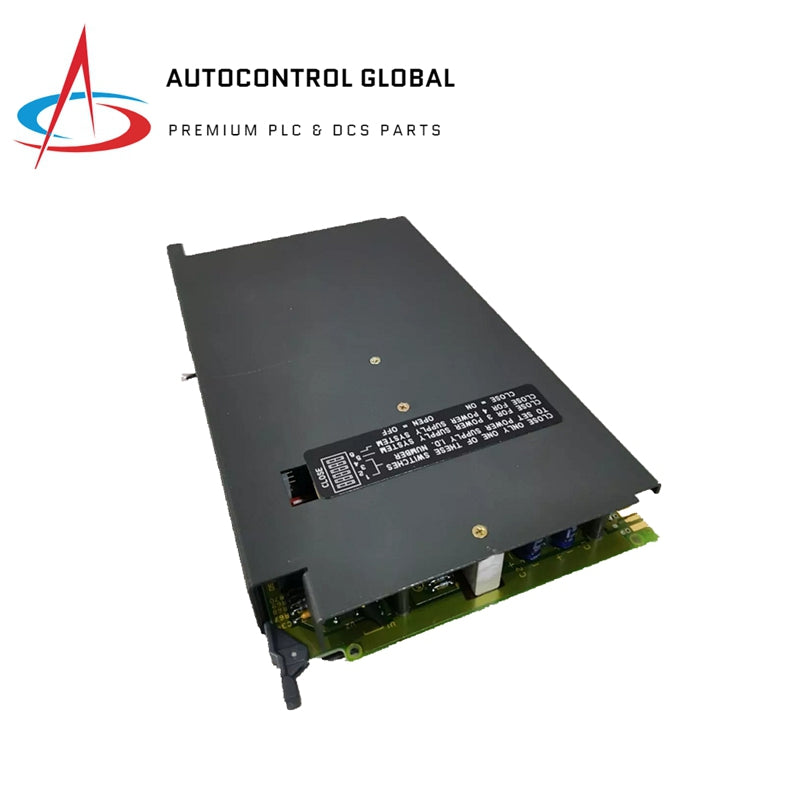

• I.D. Selection Switches: For unique identification in a redundant system
• Paralleled: Supports 3 or 4 supplies in a daisy-chained redundant system
• Terminal Blocks:
  • 3-position
  • 5-position

Indicators

• NO-REDUNDANT: Yellow indicator (indicates insufficient number of operating supplies for redundancy)
• P/S ACTIVE: Green indicator (indicates normal operation or fault)

Installation

• Compatible Chassis: 1771-A1B, -A2B, -A3B, -A3B1, -A4B, -PSC
• Slot Allocation: 2 to 4 adjacent slots required for redundancy setup

Environmental

• Hazardous Environment Rating: Suitable for Pollution Degree 2
• Application: Safe for non-hazardous and Pollution Degree 2 hazardous industrial environments
