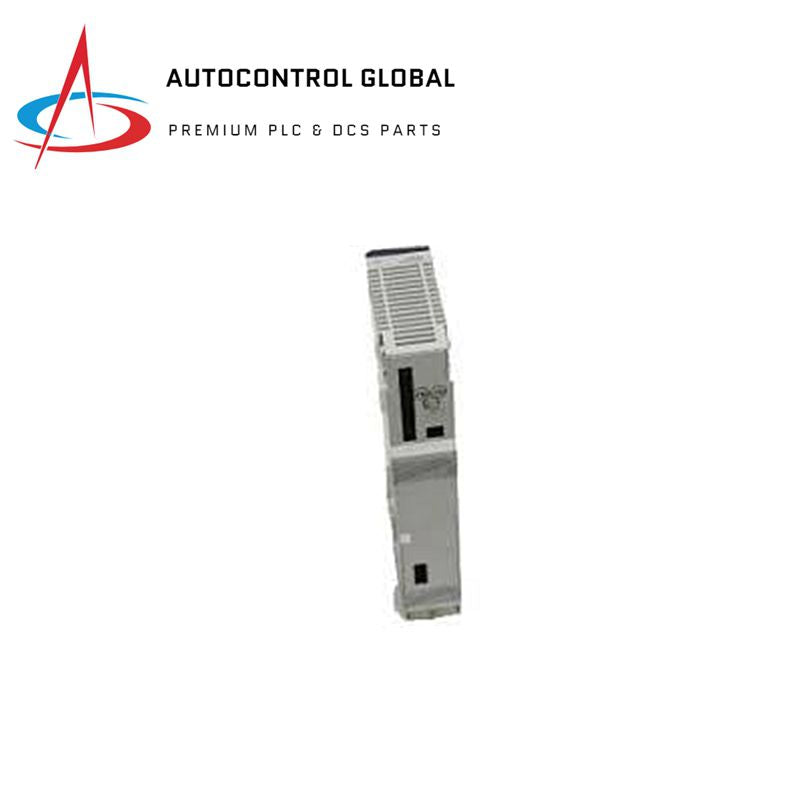

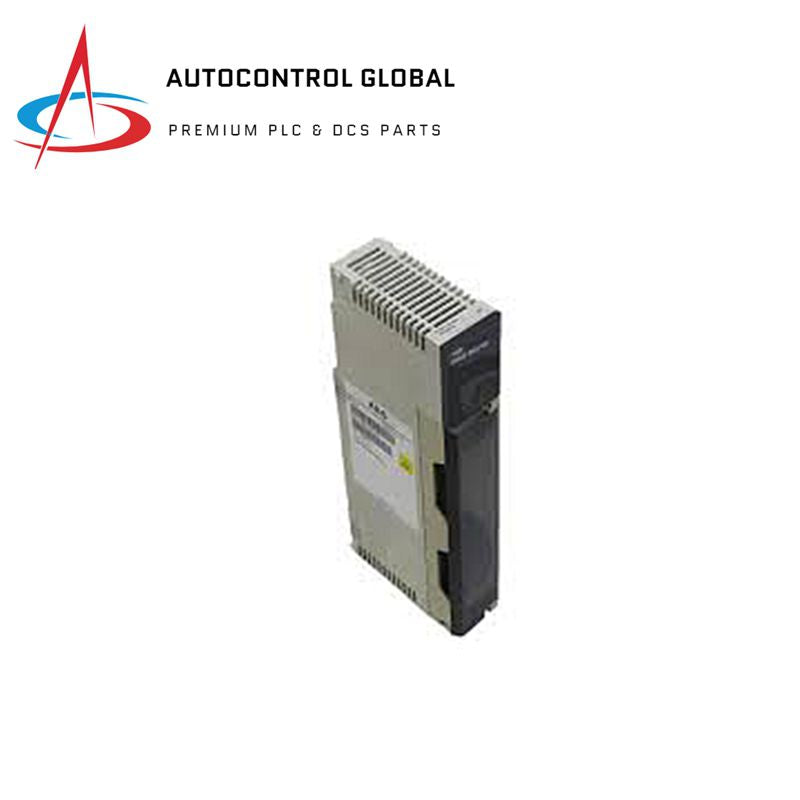

Schneider 140DD084300 Dc Discrete Input Module

Description

The Schneider 140DD084300 is a discrete output module designed for the Modicon Quantum automation platform. It features 16 outputs and operates within a voltage range of 10 to 60 V DC. This module is used for controlling external devices in industrial automation applications.

Technical Specifications

• Number of Outputs: 16
• Discrete Output Voltage: 10…60 V DC
• Output Voltage Limits: 10.2…72 V
• Maximum Load Current: 2 A per point, 12 A per module
• Surge Current: 7.5 A for 50 ms
• Response Time: ≤ 1 ms
• Maximum Leakage Current: 1 mA at 60 V
• Load Inductance: Inductance (H) = 0.5 / (current (A))² x (switching frequency (Hz))
• Associated Fuse Rating: 2 A per point, 8 A per group
• Isolation Between Channels and Bus: 2500 Vrms DC for 1 minute
• Isolation Between Groups: 700 Vrms DC for 1 minute
• Power Dissipation: 1 W + (1 V x total module load current)
• Local Signaling: 1 LED (green) for bus communication, 1 LED (red) for external fault detected, 16 LEDs (green) for input status
• Bus Current Requirement: 160 mA
• Module Format: Standard
• Net Weight: 0.99 lb (0.45 kg)
• Operating Temperature: 0…60 °C
• Storage Temperature: -40…85 °C
• Relative Humidity: 95 % without condensation
• Operating Altitude: ≤ 5000 m
• Standards: UL 508, CSA C22.2 No 142, FM Class 1 Division 2, C-tick, GOST, ABS
