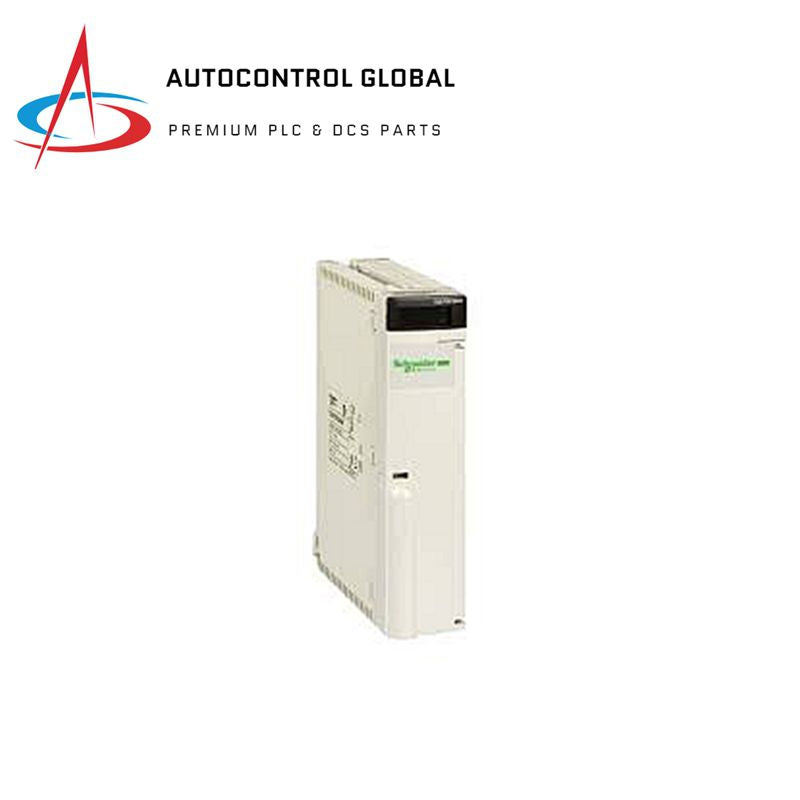

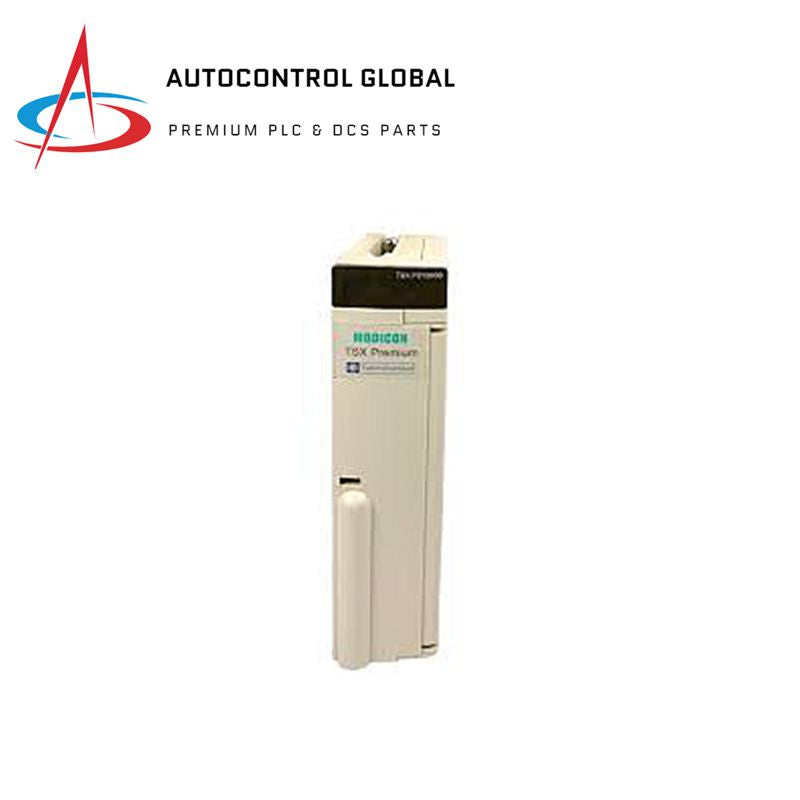

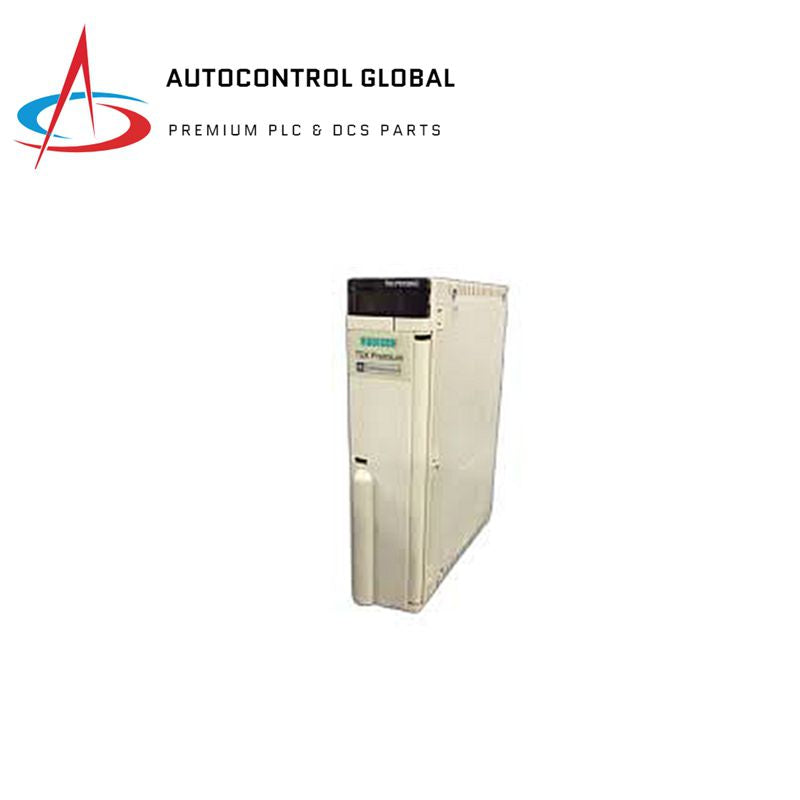

Schneider TSXPSY2600M Power Supply Module

Description

The Schneider TSXPSY2600M is a power supply module designed for the Modicon Premium automation platform. It provides a secondary power of 26W with an input current of 300mA and operates within a voltage range of 85 to 264VAC.

Technical Specifications

• Primary Voltage: 100…240 V AC
• Network Frequency: 50/60 Hz
• Input Current: 300 mA at 240 V, 500 mA at 100 V
• Inrush Current: 37 A at 100 V, 75 A at 240 V
• Protection Type: Internal fuse, overload protection, overvoltage protection, short-circuit protection
• Total Useful Secondary Power: 26 W
• Secondary Power: 15 W at 24 V DC, 25 W at 5 V DC
• Current at Secondary Voltage: 0.5 A at 24 V DC sensor power supply, 0.6 A at 24 V DC relay power supply, 5 A at 5 V DC
• Insulation Resistance: >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
• Local Signaling: LED indicators for presence of sensor voltage, presence of voltages, and battery fault
• Module Format: Standard
• Net Weight: 1.12 lb (0.51 kg)
• Operating Temperature: 32…140 °F (0…60 °C)
• Storage Temperature: -13…158 °F (-25…70 °C)
• Relative Humidity: 10…95 % without condensation for operation, 5…95 % without condensation for storage
• Operating Altitude: 0…6561.68 ft (0…2000 m)
• Degree of Protection: IP20
• Pollution Degree: 2
