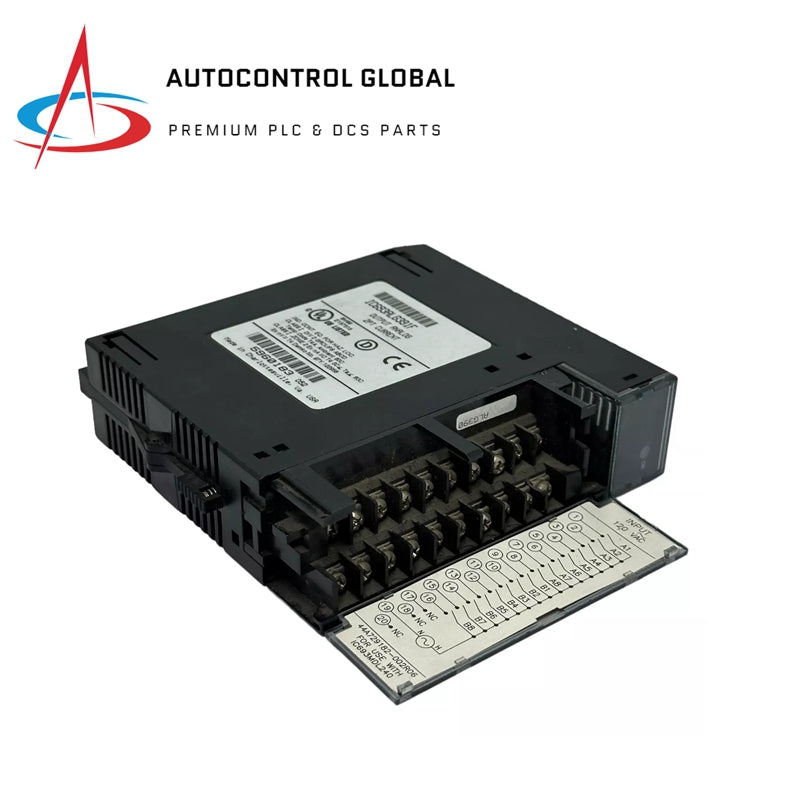

Series 90-30 IC693ALG391 | GE Fanuc Analog Output Module

Overview

The IC693ALG391 is an analog output module designed for the Series 90-30 PLC by GE Fanuc. It provides current and voltage output signals, making it ideal for industrial automation systems requiring precise analog signal generation.

Key Information

• Brand: GE Fanuc
• Series: Series 90-30
• Part Number: IC693ALG391
• Product Type: Analog Output Module
• Channels: Two output channels

Specifications

Signal Output

• Current Output: 0-20 mA / 4-20 mA
• Voltage Output: 1-5VDC / 0-5VDC
• Resolution:
  • 4-20 mA: 4µA (1 LSB = 4µA)
  • 0-20 mA: 5µA (1 LSB = 5µA)
  • 1-5V: 1 mV (1 LSB = 1 mV)
  • 0-5V: 1.25 mV (1 LSB = 1.25 mV)
• Accuracy:
  • 4-20 mA: ±8µA at 25°C (77°F)
  • 0-20 mA: ±10µA at 25°C (77°F)
  • 1-5V: ±50 mV at 25°C (77°F)
  • 0-5V: ±50 mV at 25°C (77°F)

Electrical & Power Requirements

• Current Draw:
  • 30 mA @ 5 VDC
  • 215 mA @ 24 VDC (from isolated backplane or user supply)
• Supply Voltage:
  • +24 VDC (from isolated +24 VDC backplane or user supply)
  • +5 VDC from backplane
• External Supply Voltage Range: 20-30 VDC (typically 24 VDC)
• Isolation: 1500 VAC

Performance & Environment

• Update Rate: 5 ms (all channels)
• Calibration: Factory calibrated to 4µA per count
• Module Width: 1-slot
• Maximum Compliance Voltage: 25 V
• Status Indicator: Module OK

Physical Characteristics

• Bus Current Draw: 30 mA from +5V supply; 215 mA from Isolated +24 VDC supply
• Internal Power Consumption: 30 mA @ 5 VDC, 215 mA @ 24 VDC (isolated)
