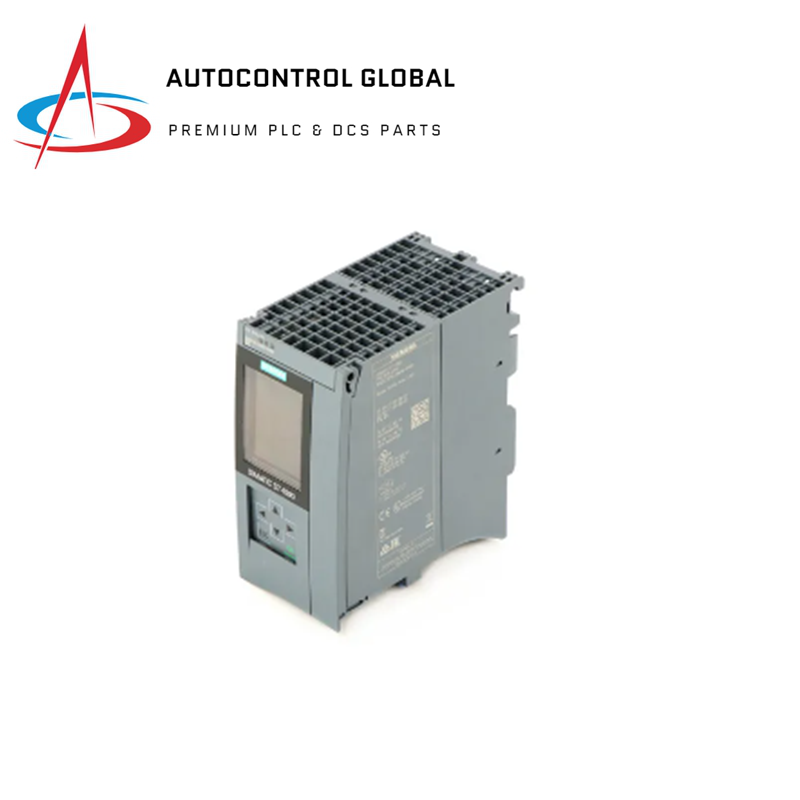

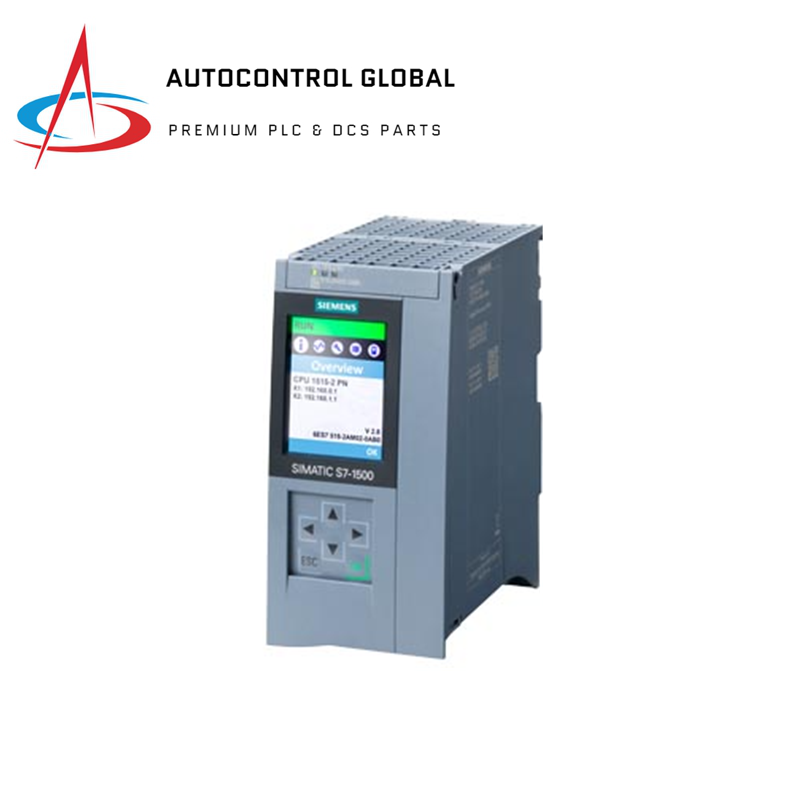

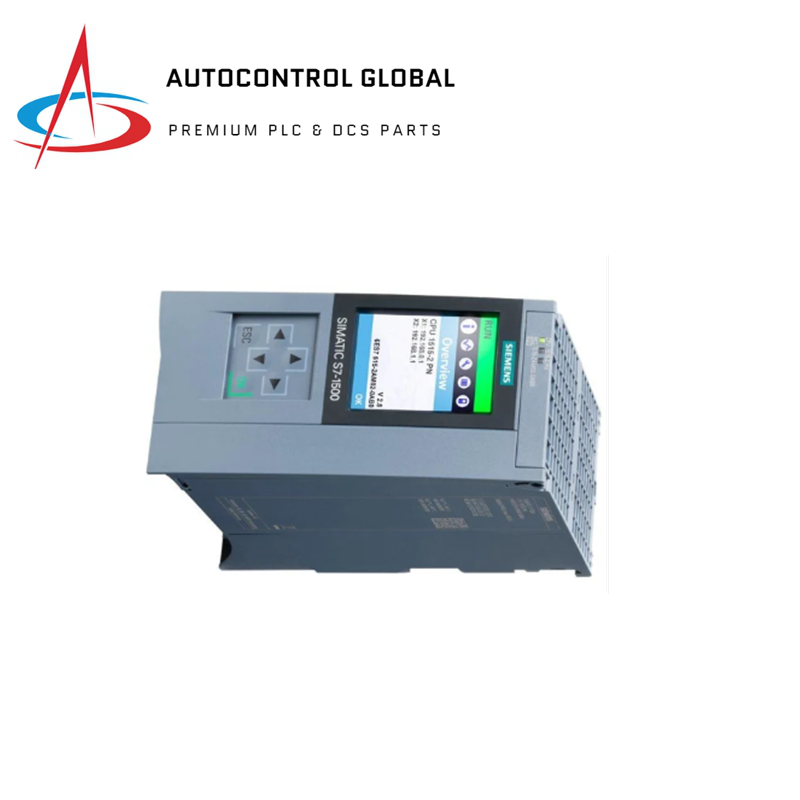

Siemens 6ES7515-2AM02-0AB0 Central Processing Unit

Description

The 6ES7515-2AM02-0AB0 is a central processing unit (CPU) designed for high-performance industrial automation applications. It boasts a robust design and advanced capabilities for handling complex tasks efficiently.

Features

• Memory:
  • 500 KB work memory for programs
  • 3 MB for data
• Interfaces:
  • 1st interface: PROFINET IRT with a 2-port switch
  • 2nd interface: PROFINET RT
• Performance: 30 ns bit performance
• Memory Card: Requires a SIMATIC Memory Card for operation
• Integration: Seamless integration with other Siemens automation products

Specifications

• Product Lifecycle: Phase-out stage with a successor product available (6ES7515-2AN03-0AB0)
• Compliance:
  • RoHS: Compliant since October 9, 2019
  • REACH: Contains substances listed in the REACH regulation
• Physical Dimensions: 15.60 x 16.10 x 8.30 cm (packaging dimensions)
• Weight: 0.596 kg (net weight)
• Export Control Regulations:
  • AL: N
  • ECCN: EAR99H
