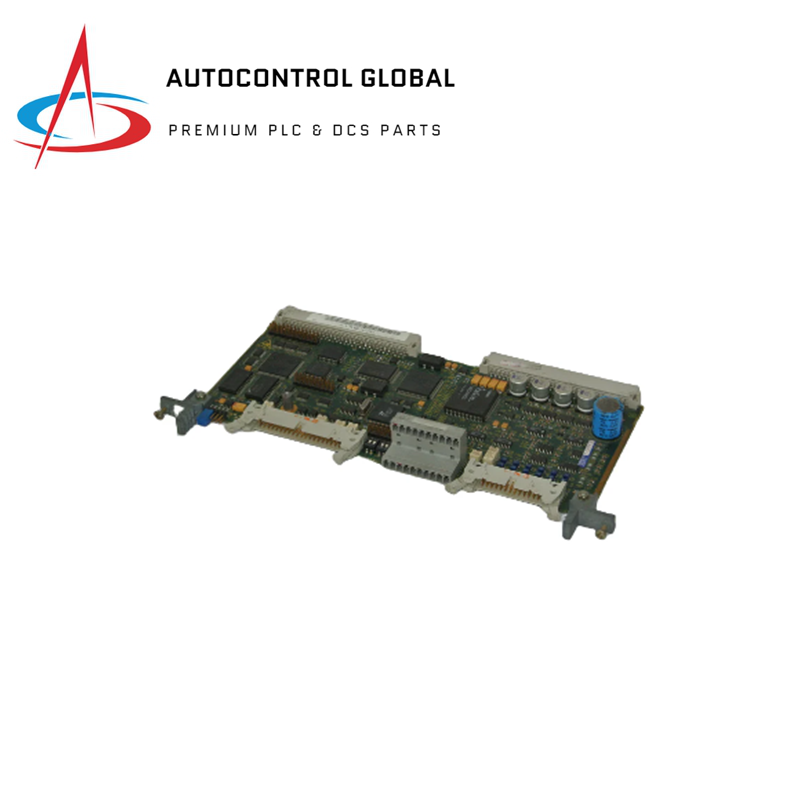

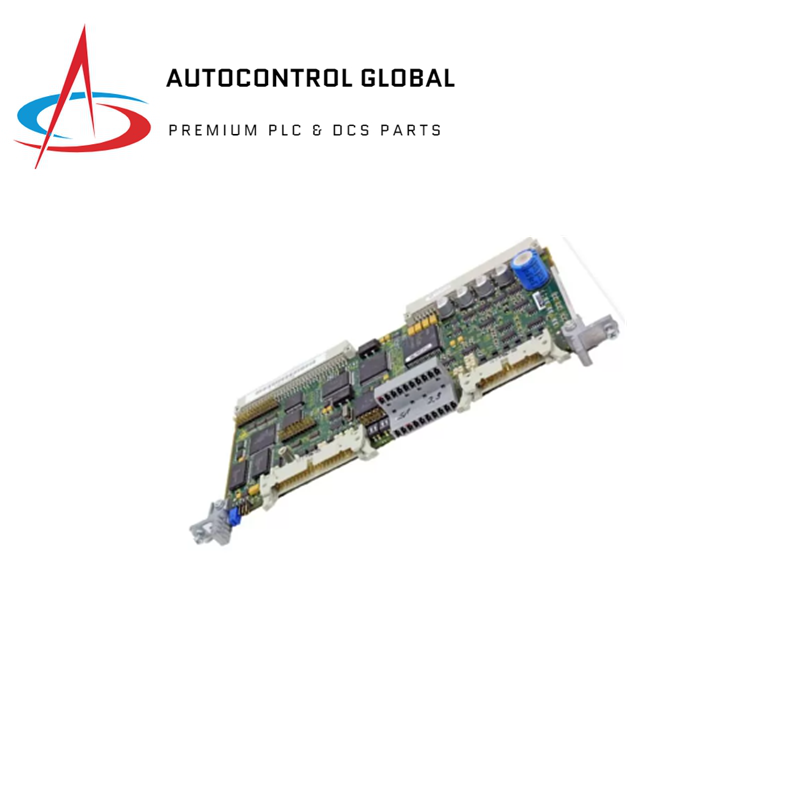

Siemens 6SA8252-0BC83 MasterGuard Control Card

Functions

• Drive control: The CUX module controls the speed and torque of the motor.
• Communication: The CUX module can communicate with other control systems, such as PLCs and HMI devices.
• Diagnostics: The CUX module can monitor the drive system for faults and provide diagnostic information.

Specifications:

• Part Number: 6SA8252-0BC83
• Manufacturer: Siemens
• Compatibility: Siemens SINAMICS G120 drive system
• Function: Modular control unit for drive system
• Control Type: Vector control
• Power Rating: 0.75 kW to 7.5 kW
• Supply Voltage: 208-240 VAC
• Input Frequency: 50/60 Hz
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 70°C (14°F to 158°F)
• Humidity: 0% to 95% (non-condensing)
• Dimensions: 130 mm x 270 mm x 30 mm (5.12 in x 10.63 in x 1.18 in)
• Weight: 0.4 kg (0.88 lbs)
