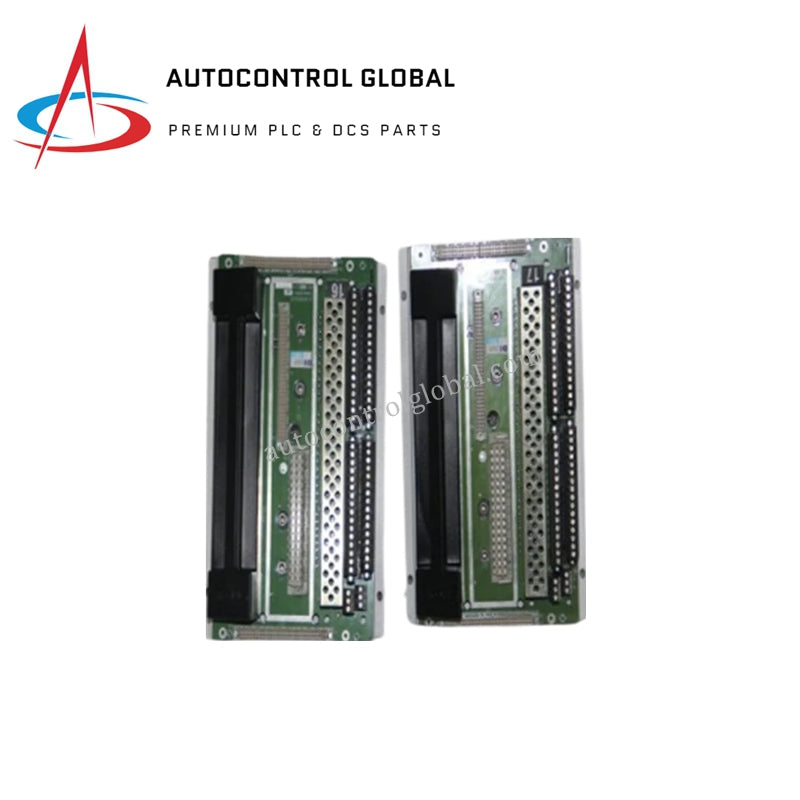

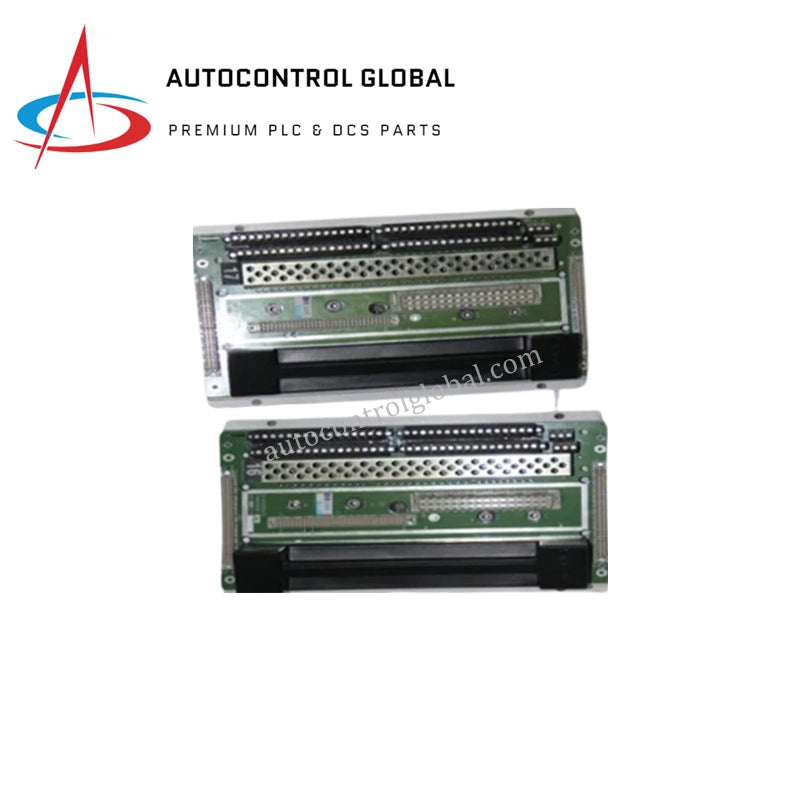

Triconex 7400208C-020 DI2301 Digital Input Baseplate In Stock

Product Overview

Triconex 7400208C-020 DI2301 Digital Input Module

The Triconex DI2301 is a specialized digital input module designed for use in safety-critical systems, particularly as part of the TRICONEX Trident safety system. This module is engineered to provide reliable and accurate signal processing in harsh industrial environments, making it indispensable in sectors like oil and gas, chemical processing, and power generation where safety and reliability are paramount.

Technical Specifications

• Input Voltage Range: 5V to 125V DC
• Input Impedance: 5 kΩ
• Input Current:
  • Typical: 5mA
  • Maximum: 20mA
• Response Time: Maximum 10ms
• Surge Voltage Protection: Up to 1500V
• Isolation Voltage: 500V
• Operating Temperature Range: -40°C to +70°C
• Digital Input Channels: Supports 16 channels
• Noise Immunity: High
• Surge Protection: Integrated surge protection

Key Features

• Wide Input Voltage Range:

  • Operates effectively with a broad range of input voltages from 5V to 125V DC, providing flexibility for various applications and input signal types.

• High Input Impedance:

  • With an input impedance of 5 kΩ, the module minimizes the load on the signal source, ensuring accurate signal representation.

• Fast Response Time:

  • A maximum response time of 10ms ensures rapid detection of changes in input signals, critical for timely control and monitoring actions.

• Robust Protection:

  • Equipped with surge voltage protection up to 1500V and isolation voltage up to 500V, the module safeguards against electrical surges and noise, enhancing system reliability.

• Wide Operating Temperature Range:

  • Designed to operate reliably within temperatures ranging from -40°C to +70°C, suitable for deployment in diverse and challenging environmental conditions.

• High Noise Immunity:

  • Built-in high noise immunity ensures stable performance even in electrically noisy environments, maintaining signal integrity.

• Safety-Critical Design:

  • As part of the TRICONEX Trident safety system, the DI2301 is specifically designed to meet stringent safety requirements, contributing to overall system safety and compliance with industry standards.

Applications

The Triconex DI2301 finds application across several industries due to its robust design and safety-focused features:

• Oil and Gas Industry:

  • Provides reliable input signal processing for safety instrumented systems (SIS), helping to ensure safe operations in hazardous environments.

• Chemical Processing:

  • Ensures accurate monitoring and control of process parameters in chemical plants, supporting safe and efficient production processes.

• Power Generation:

  • Integrates into safety systems for power plants, facilitating dependable operation and safeguarding critical infrastructure.

Benefits

• Reliability and Safety:

  • Designed to meet the demands of safety-critical applications, the DI2301 enhances system reliability and safety, reducing risks associated with operational failures.

• Versatility:

  • Wide input voltage range and high noise immunity make it adaptable to various industrial settings and input signal types.

• Performance:

  • Fast response time and integrated surge protection contribute to optimal performance under demanding conditions.

• Durability:

  • Capable of operating across a wide temperature range, the module remains functional in extreme environmental conditions.
