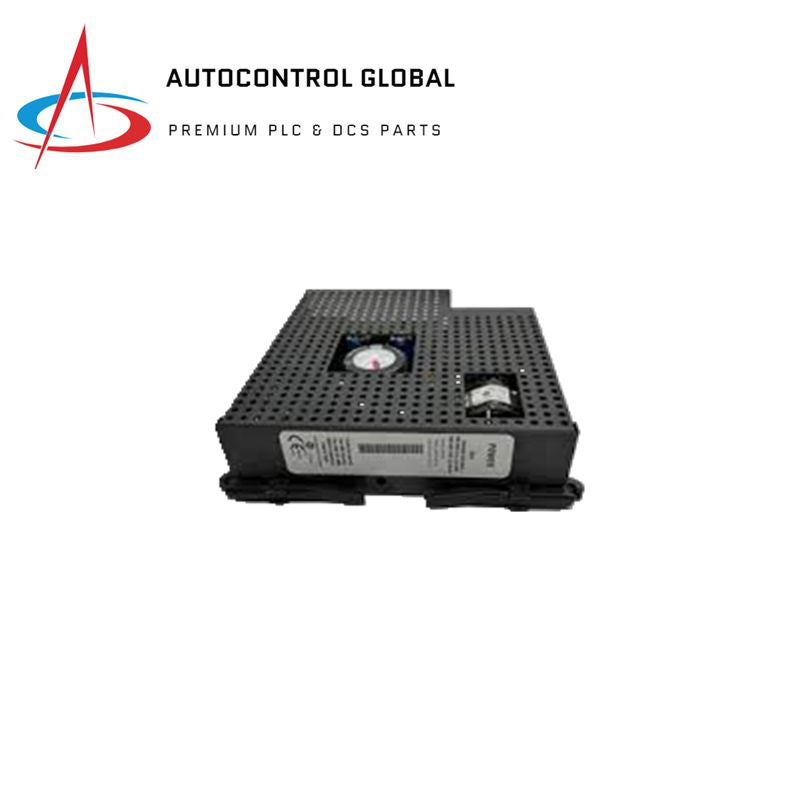

UR Multilin URRHH RH 35W Power Module

The General Electric UR-RHH is a power supply module designed for the Universal Relays series. Here are the key details:

• Voltage Ranges:
  • Low Range (LO): Operates at 24 to 48 V nominal (DC only).
  • High Range (HI): Operates at 125 to 250 V nominal (DC and AC).
• Redundant Power Option: Can include or exclude redundant power.
• Functionality: Provides power to the relay and dry contact input connections.
• Internal Fuse Rating: 4A / 250 V.
• Health Assessment: The relay’s self-testing elements automatically assess the power supply module’s health. Major and minor tests ensure proper hardware function and can de-energize the module in case of critical failure.
• Faceplate LEDs: Indicate power supply status—CONTINUOUS ON, ON/OFF CYCLING, and OFF.
• Technical Specifications:
  • Manufacturer: GE Multilin
  • Manufacturing Location: Markham, Ontario, Canada
  • Weight: Approximately 2 lb, 2 oz
  • Dimensions: Approximately 6.5” L x 6.5” W x 1.75” H
  • Software: EnerVista UR
