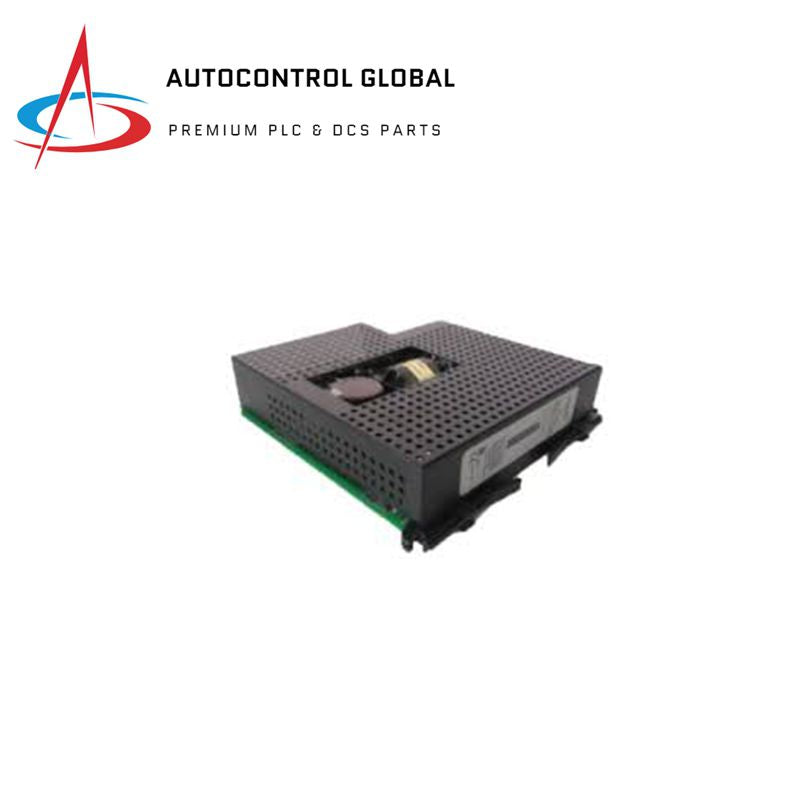

UR8HH | GE Multilin UR-8HH CT/VT Module

1. Data Monitoring:

   • Provides real-time data for protective relay functions, displayed on an LCD.
   • Enables efficient monitoring and analysis of critical parameters.

2. EnerVista UR Software:

   • Allows easy configuration and customization of settings related to the CT/VT module.
   • Features a user-friendly interface and a drag-and-drop environment for quick commissioning.

3. CT/VT Integration:

   • Supports 1A/5A ground and 3-1A/5A phase CTs.
   • Ensures accurate scaling of current and voltage ratings for reliable monitoring.

4. Installation:

   • Designed for straightforward installation within the Universal Relays series.
   • The module bay can be accessed quickly by unhinging the faceplate.

Dimensions and Weight:

• Weight: 2.55 lbs (1.16 kg)

Manufacturer Details:

• Manufacturer: General Electric Multilin
• Manufacturing Location: Markham, Ontario, Canada
