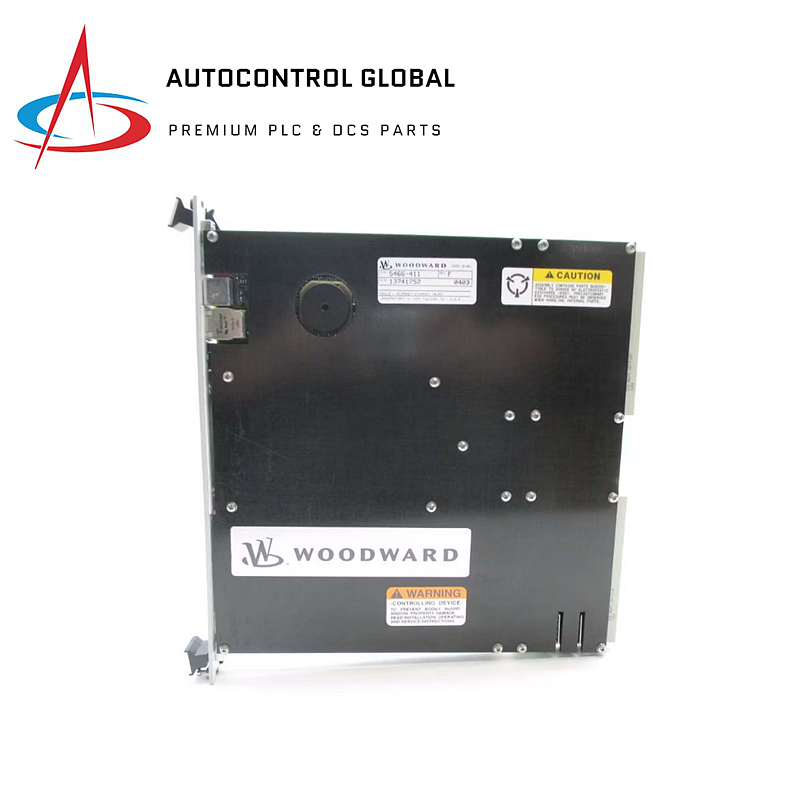

Woodward 5466-411 Micronet Ethernet Module

Overview

The Woodward 5466-411 is a Micronet Ethernet Module designed for networking, data gathering, and control configuration in MicroNet Digital Controllers. It uses a 10BaseT Ethernet connector for reliable communication.

Features

• Flash Memory: 64 MB
• Input Voltage: 110 VAC/125 VDC
• Ethernet Speed: 10/100 Base T
• Maximum Stub Length: 300 mm
• Voltage Range: 80-150 VAC
• Output Voltage Rating: 24 VDC, 16 A
• Real-Time Clock for time-sensitive operations
• Speed Sensing: 1 to 30 VAC

Applications

• Networking: Connects multiple control units for seamless communication
• Data Gathering: Facilitates transfer of I/O data between modules
• Control Configuration: Used for configuring and adjusting connected MicroNet devices
• Requires an Ethernet Field Termination Module (FTM) for optimal performance

Specifications

• Dimensions: 9.50 x 10.50 x 1.00 inches
• Operating Temperature: -40 to +85°F
• Connector Type: 10BaseT Ethernet RJ45
• Voltage Range: 80-150 VAC

General Information

• Product Type: Micronet Ethernet Module
• Series: MicroNet Digital Controllers
• Part Number: 5466-411
