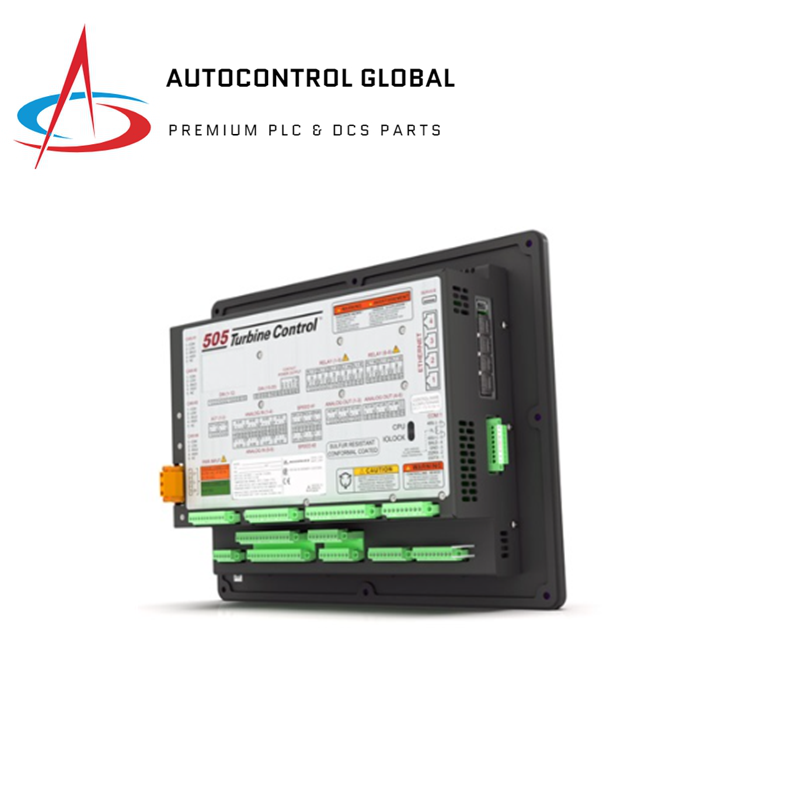

Woodward 8200-1312 Digital Governor Turbine Control

Description

• Model: 8200-1312
• Type:Digital Turbine Speed and Load Control
• Application:Steam turbine digital governor control for extraction and admission

Features

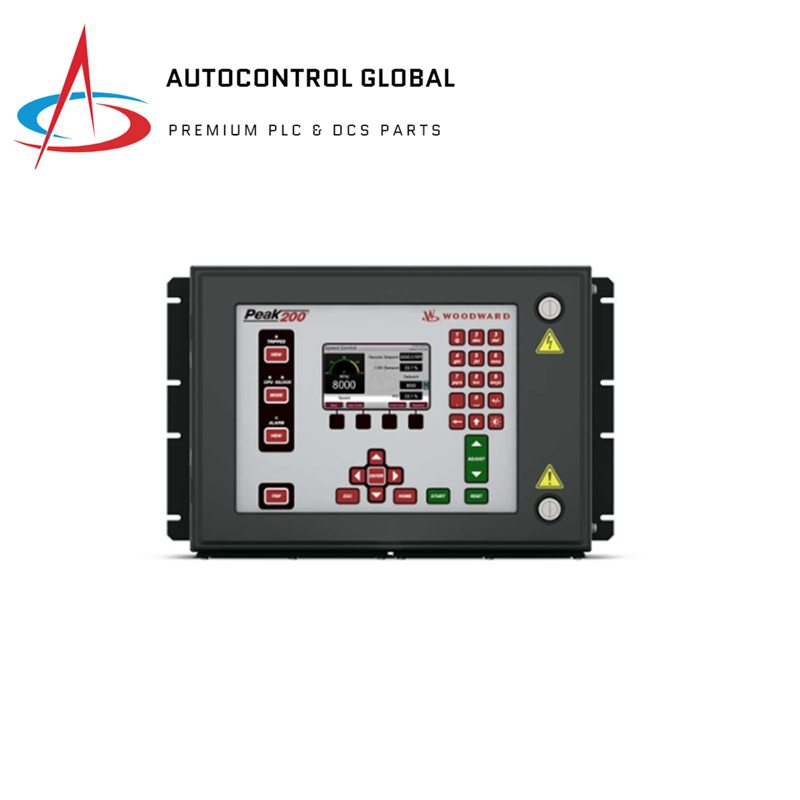

• Integrated Graphical Front Panel HMI Screen: Multilingual screens, including Chinese, for easier operator use, diagnosis, and control.
• Real-Time Trending: Viewable locally by operators and engineers.
• Graphic Steam Map: Displays the current operating point for extraction and admission.
• Improved Communications: Ethernet connectivity to plant DCS, service tools, and RemoteView operator control panels.
• Intelligent/Adaptive Control Algorithms: Includes OptiTune adaptive PID technology for optimal turbine performance.
• Vibration Monitoring: For protection and control (requires Sensor Kit 8928-7482).
• Cyber Compliant: Password-enabled logins and RemoteView program for virtual monitoring and control.

Specifications

• Input Voltage: 18-36 Vdc
• Output Voltage: 0-10 Vdc
• Current Capacity: 2A
• Communication Interface: RS485
• Operating Temperature: -40°C to 85°C
• Dimensions: 263 × 58 × 28 mm
• Weight: 4.3 kg
