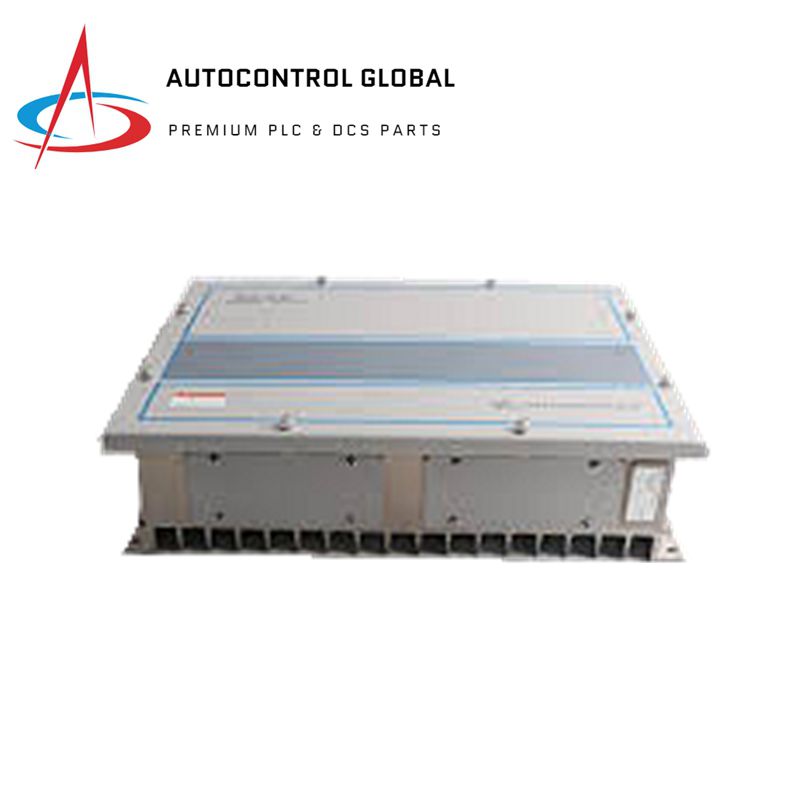

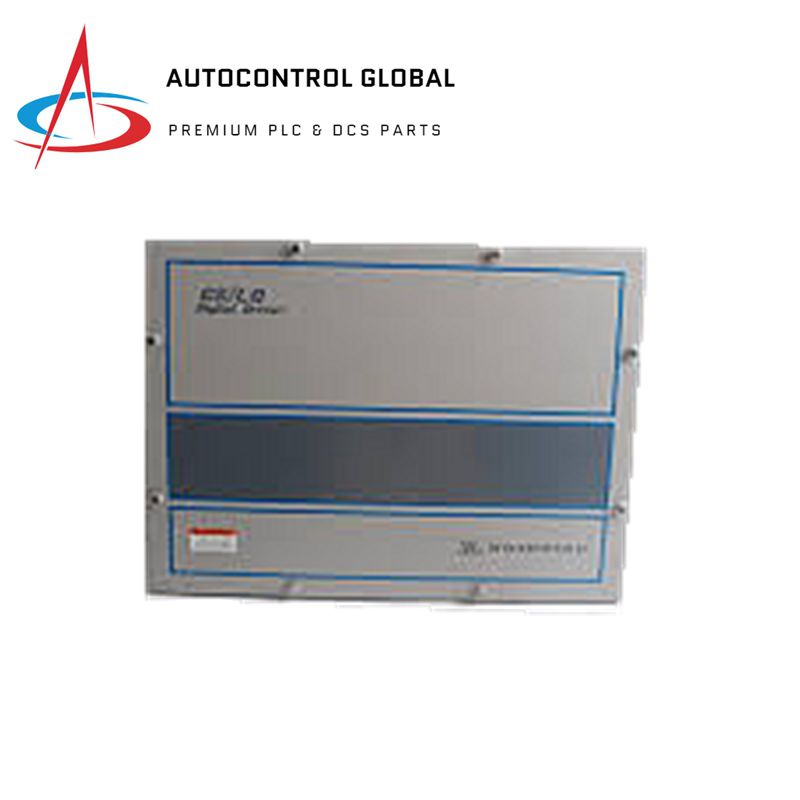

Woodward 8200-314 Digital Driver Board

SPECIFICATIONS:

• Part Number: 8200-314
• Manufacturer: Woodward
• External Dimensions: 8.75W x 14.625D x 5.375H
• Input Voltage Rating: 18-32VDC, 27.4A
• Power Supply Input: (18 to 32) V (dc)
• Signal to Actuator: 0 to 200 mA
• Network Isolation: 0–60 Hz: 1000 Vrms
• Power Consumption: 14 W
• Output Voltage Rating: 24VDC, 16A
• Availability: In Stock
• Country of Origin: United States
• Operating Temperature: 55°C
• Weight: 9.11 lbs

FUNCTIONAL DESCRIPTION:

The 8200-314 is a Digital Driver Board manufactured and designed by Woodward for Gas Turbine Control Systems. This board serves as the interface between the control system and the turbine's actuators. It is responsible for receiving signals from the control system and translating them into commands that control the turbine's speed, power, and other parameters.

The digital driver board consists of a microprocessor, digital-to-analog converters (DACs), analog-to-digital converters (ADCs), and other electronic components that allow it to process control signals. It includes output drivers that convert digital signals into analog signals for controlling turbine actuators.

FEATURES:

• High-Speed Operation: Responds quickly to changes in control signals, allowing real-time adjustments.
• Programmability: Easily programmed and configured for various turbine control applications, enhancing flexibility.
• Analog and Digital Signal Processing: Includes ADCs and DACs for processing both signal types, ensuring compatibility with diverse control systems.
• Fault Detection and Protection: Detects faults such as overvoltage and overcurrent, taking protective measures to prevent damage to the turbine or components.

WORLD OF CONTROLS (WOC) has the largest stock of Woodward Steam Turbine Control System Replacement Parts. We can also repair faulty boards and supply unused or rebuilt units backed with a warranty. Our team of experts is available round the clock to support your OEM needs. For pricing and availability on any parts and repairs, please contact our team by phone or email.
