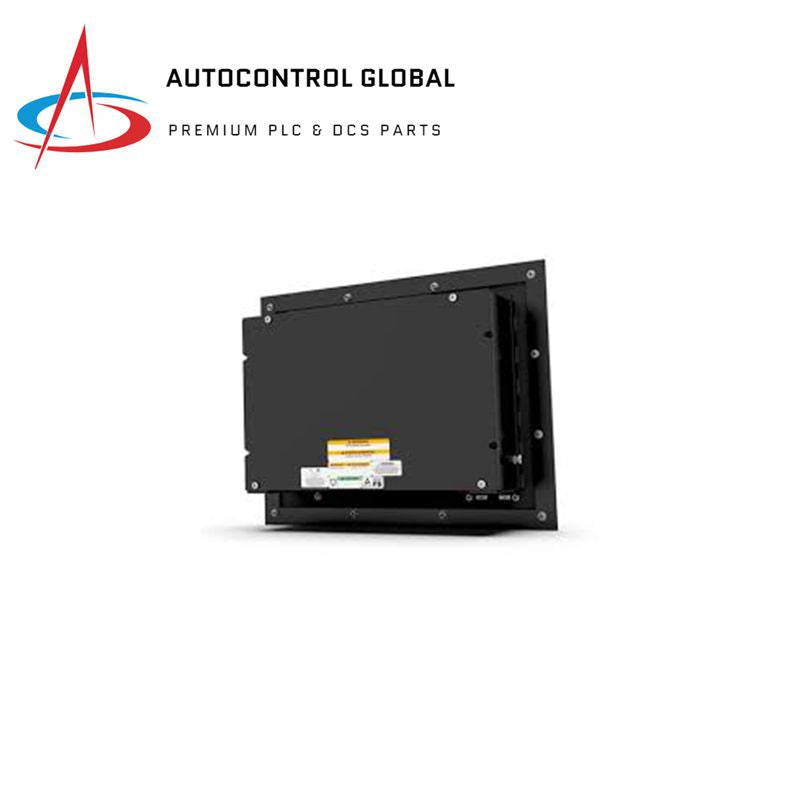

Woodward 8237-1600 Overspeed Safety Device

Description

The Woodward 8237-1600 is an overspeed safety device designed to safely shut down steam, gas, and hydro turbines of all sizes upon sensing an overspeed or overacceleration event. It features a panel mount design with high voltage/low voltage power input and voted relays/voted inputs for steam turbine overspeed protection.

Features

• Acceleration Detection: Protects turbines from high acceleration events by detecting the derivative of the speed signal and issuing a trip command.

• MPU Detection: Validates the MPU connection before and during turbine operation.

• Automatic Overspeed Test Routine: Performs routine overspeed tests and logs the results.

• Sulfur Contamination Resistant: Utilizes a special conformal coating material for long-term protection against H2S and SO2 gases.

• On-line Repair: Allows for easy replacement of modules while the turbine is operating.

• Modbus Communications: Integrates easily into any turbine safety system.

Technical Specifications

• Dimensions: 13 x 17.5 x 6.25 inches

• Enclosure Type: IP56 dust and water resistant (when installed properly)

• Input Voltage: 2 High Voltage Inputs OR 1 High Voltage and 1 Low Voltage

• Inrush Current: 10 A at 115 Vac, 20 A at 220 Vac

• Keypad/Display: 4.2-inch display and 15 keys per module

• Operating Temperature: –20 to +60 °C at 95% humidity

• Storage Temperature: –20 to +65 °C at 95% humidity
