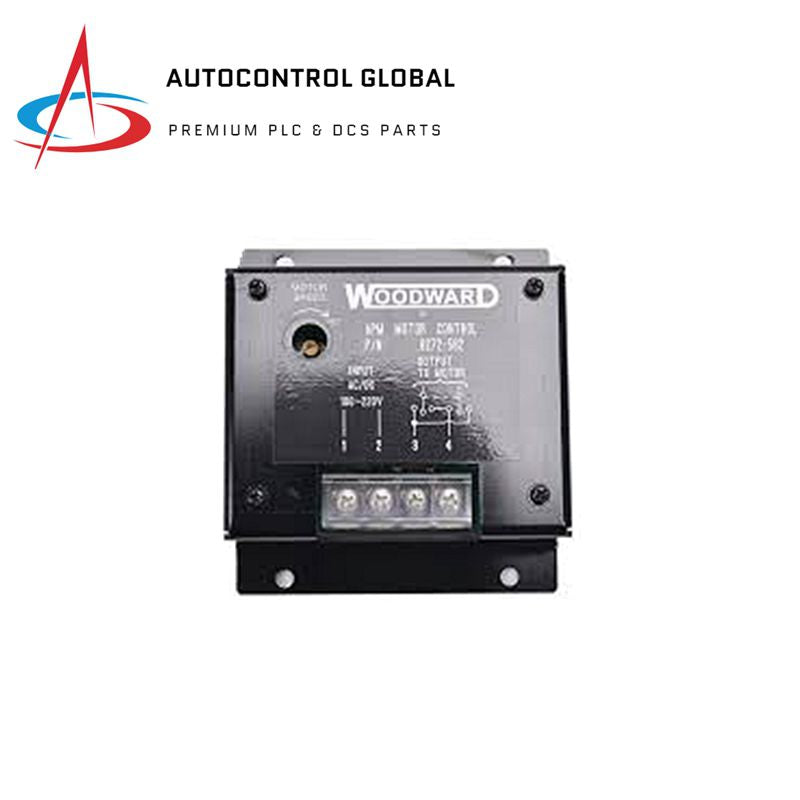

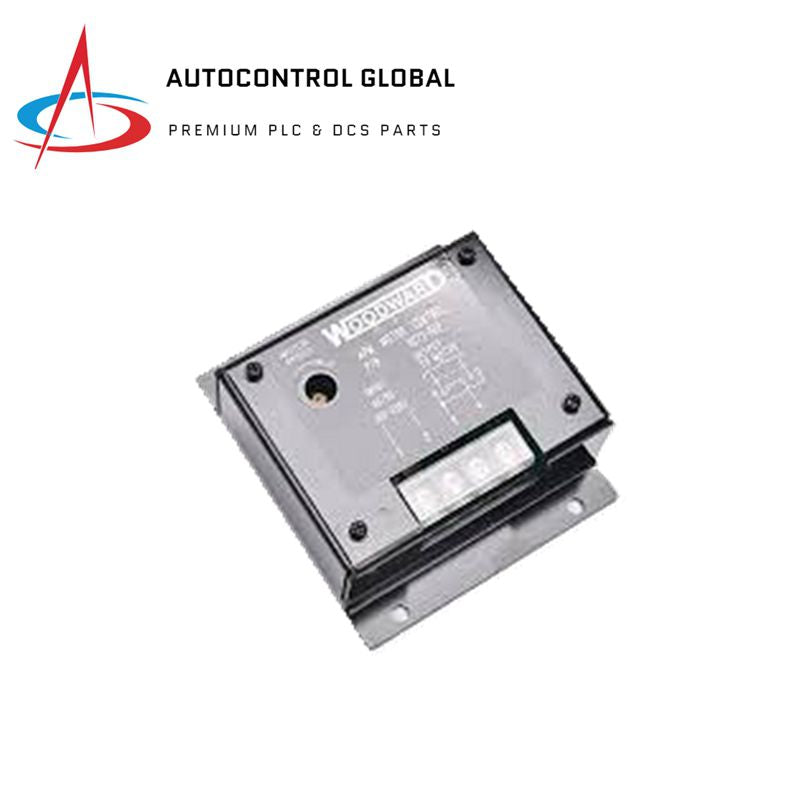

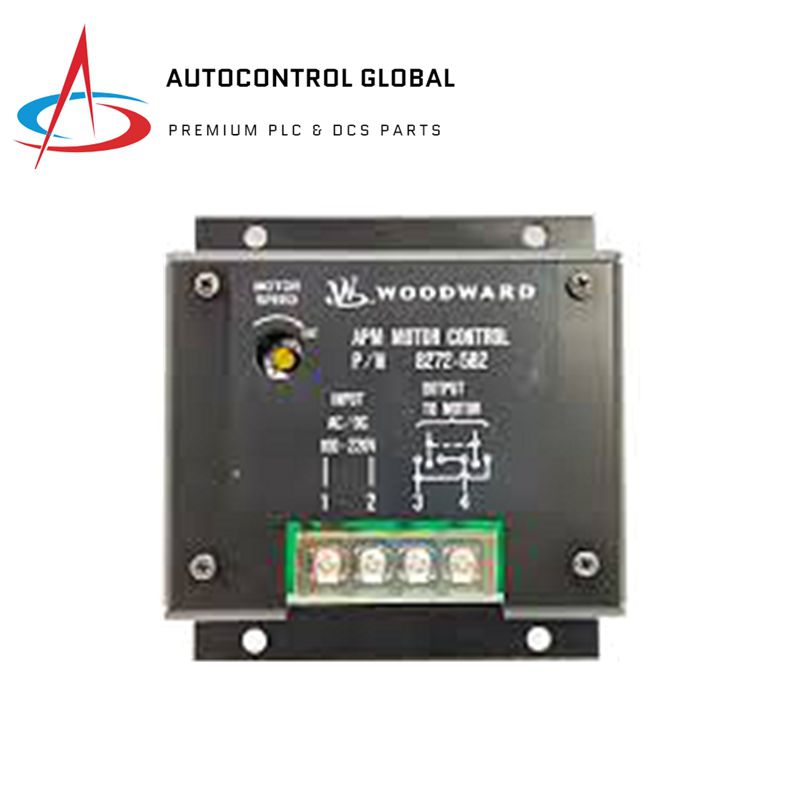

Woodward 8272-582 Motor Control Module

Description

The Woodward 8272-582 is an Advanced Permanent Magnet (APM) Motor Control designed for use with Woodward 24 VDC PM motors. It converts almost all types of input voltage to variable DC voltage (typically 24 VDC).

Features

• Versatile Voltage Conversion: Converts a wide range of input voltages (100-220 VAC/VDC) to variable DC voltage (10-24 VDC).
• Compatibility: Supports both AC and DC input sources.
• Adjustable Speed Setting: Allows fine-tuning of the motor speed change rate using a potentiometer.
• Compact Design: Features a compact and efficient design for easy installation.
• Simple Installation: Uses standard connectors for easy and quick installation.
• Industrial Applications: Suitable for various industrial applications requiring precise speed control, such as fans, compressors, and conveyors.

Technical Specifications

• Input Voltage: 100-220 VAC/VDC
• Output Voltage: 10-24 VDC
• Output Current: Adjustable speed setting change rate
• Dimensions: 2.2 cm x 12.4 cm x 12.6 cm
• Weight: 0.1 kg
