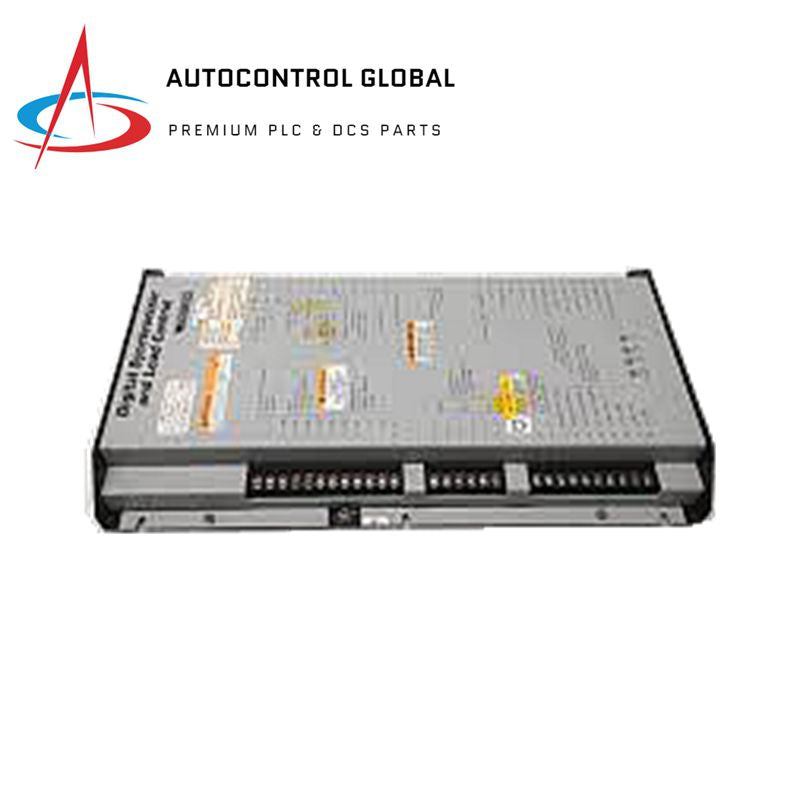

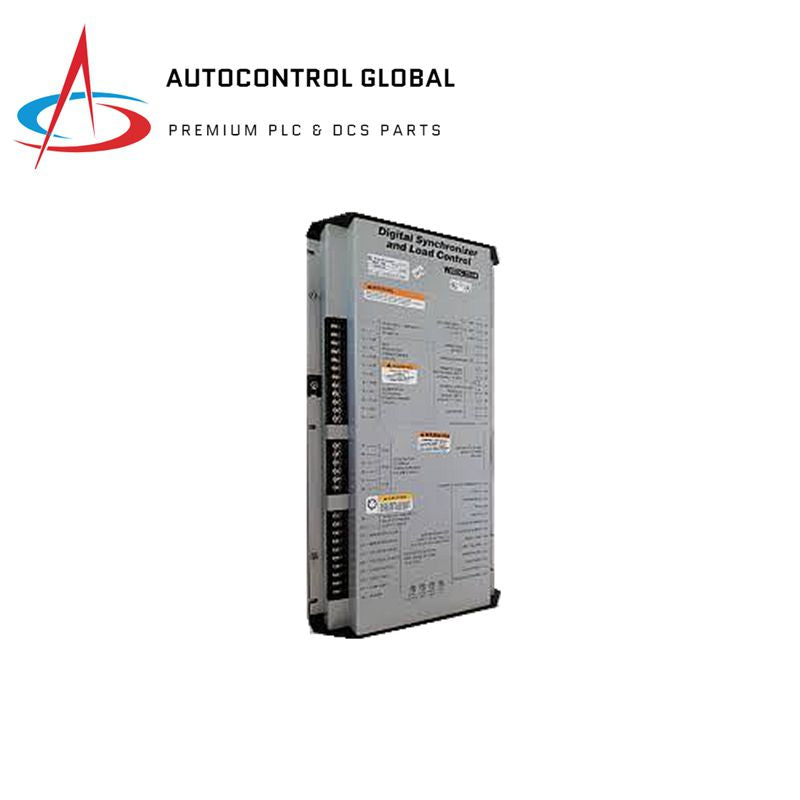

Woodward 9905-796 Control Unit

Description

The Woodward 9905-796 is a Digital Synchronizer and Load Control (DSLC) unit designed for three-phase AC generators. It is a reduced upgrade model that lacks power factor control and process control functions. This unit is tailored for environments requiring reliable synchronization and load control.

Features

• Digital Technology: Utilizes digital technology for its operation, involving microcontrollers or digital signal processors.
• Synchronization: Ensures that the frequency, phase, and voltage levels of different sources match before they are connected to the power grid.
• Load Control: Manages the distribution of loads among different generators to optimize efficiency and prevent overloading.
• Automation: Comes with automation capabilities, allowing it to perform functions without constant manual intervention.
• Monitoring and Protection: Includes monitoring functions to track the health and performance of generators or loads, and protection mechanisms to prevent damage in case of abnormal conditions.
• Communication: Capable of communicating with other control systems, providing information and receiving commands to ensure coordinated operation.
• Integration: Integrates with other control and monitoring systems within a power plant or grid.

Specifications

• Part Number: 9905-796
• Manufacturer: Woodward
• Product Type: Digital Synchronizer Load Control Module
• Input Voltage: 120 Vac
• Speed Bias Output: ±3 VDC
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +105°C
• Weight: Less than 7 lbs
• PT Configuration: Open Delta
• Nominal Voltage: 120 Vac
• Signal Input Impedance: 33K Ohms
• Display: 24-character LEDs
• Power Supply Transient Protection: 900 Vdc
