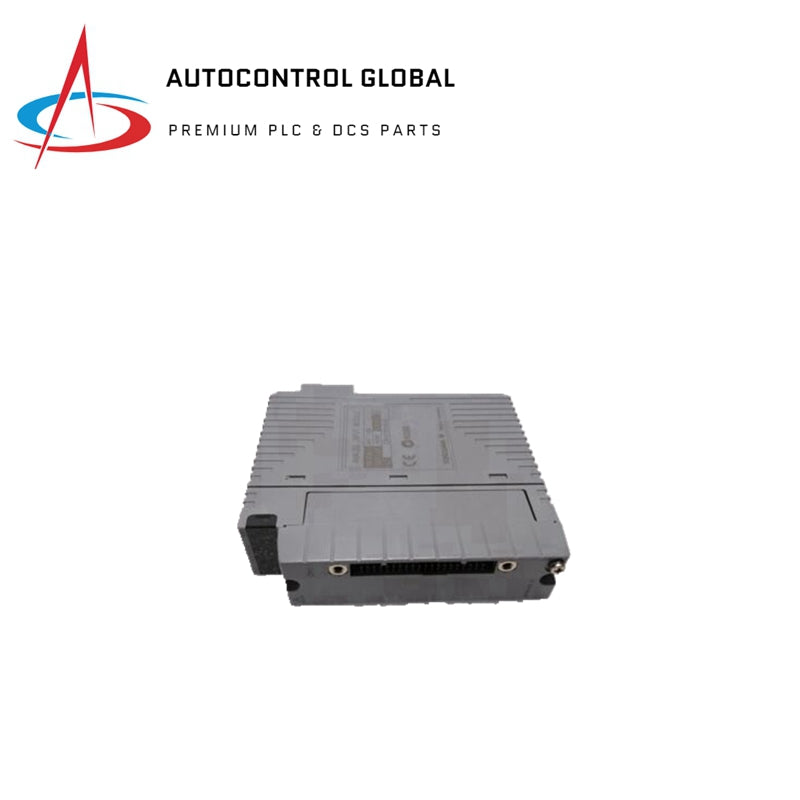

Yokogawa AAI841-S00 Analog I/O Module

Features

• Eight Analog Input Channels: The AAI841-S00 handles various analog sensor signals.
• Eight Analog Output Channels: Provides precise control over actuators and other analog devices.
• Voltage and Current I/O Support: Adapts to different sensor and actuator types.
• Non-Isolated Design: Offers a cost-effective solution for grounded systems.

Specifications

• Number of I/O Channels:
  • 8-channel input
  • 8-channel output
  • Non-isolated
• Input Signal:
  • Voltage: -10 to 10 V DC
  • Current: 4 to 20 mA DC (allowable common mode voltage ±1 V or less)
• Input Resistance (Power ON):400 Ω (at 20 mA) to 1000 Ω (at 4 mA)
• Accuracy:
  • ±16 μA (current input)
  • ±4 mV (voltage input)
• Data Update Period: 10 ms
• Transmitter Power Supply:
  • 14.8 V or more (at 20 mA)
  • 26.4 V or less (at 0 mA, output current limit: 27 mA)
• Weight: 0.2 kg
• External Connection:
  • Pressure clamp terminal
  • KS cable
  • MIL connector cable
